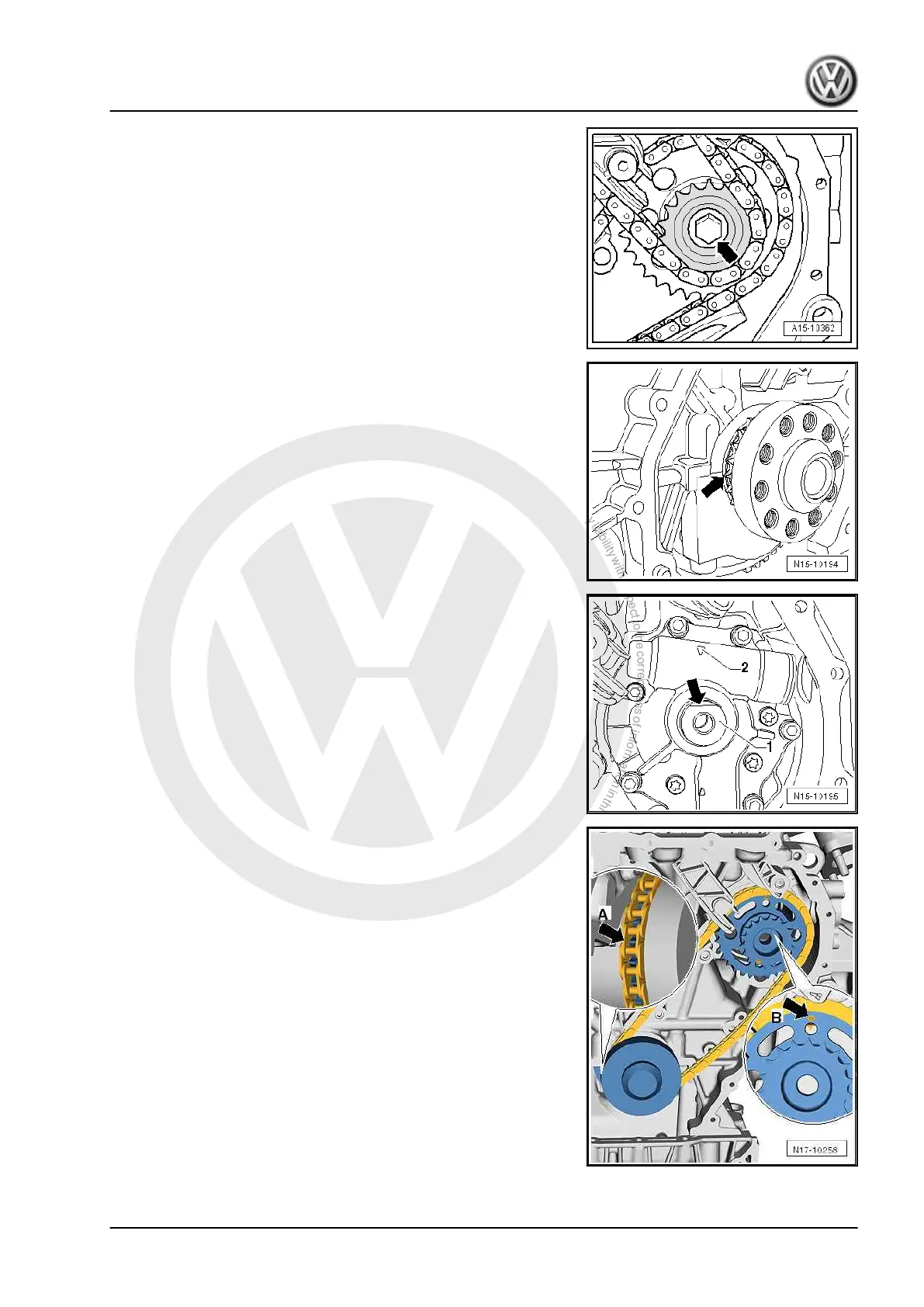

– Unscrew securing bolt for sprockets completely and remove
sprockets with timing chain from oil pump.
Installing:
– Set crankshaft to TDC position.
• Ground tooth of drive sprocket -arrow- must align with bearing
joint.
– Now turn oil pump shaft -1- with flat side -arrow- horizontal to
mark -2- on oil pump.
– First, only fit the rear chain onto the large sprocket. When do‐
ing this, observe the previously made markings.
– Fit chain onto crankshaft and fit sprocket onto oil pump shaft.
The marked hole -arrow B- must be in line with the mark on
the oil pump.
– If sprocket cannot be fitted, turn oil pump shaft slightly.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
1. Chain drive 77
