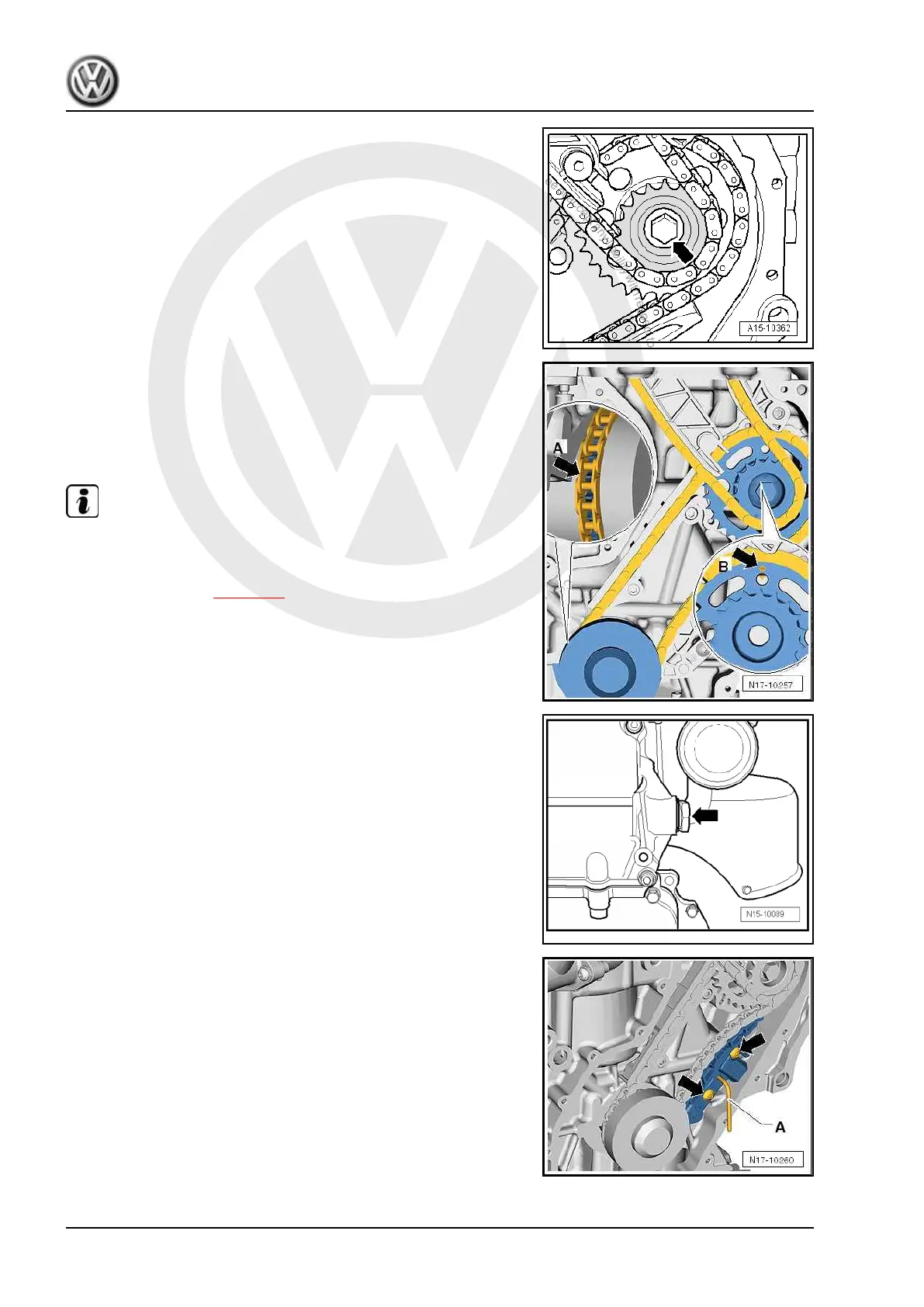

– Loosen bolt -arrow- for sprockets about 1 full turn. To do this,
counterhold vibration damper using counterhold - T10172- .
– Turn engine by vibration damper to adjustment markings.
• Ground tooth of drive sprocket -arrow A- must align with bear‐
ing joint.
• The marked hole -arrow B- must be in line with the mark on
the oil pump.
Note
This position is reached only after every 4th full rotation.
– If the camshaft timing chain is to be replaced, remove cam‐
shaft timing chain ⇒ page 71 .
– If the camshaft timing chain is not to be replaced, mark position
of timing chains to sprockets of oil pump using a permanent
marker.
– Remove chain tensioner for camshaft timing chain -arrow-.
– Fix chain tensioner spring using 3 mm Allan key -A-.
– Remove chain tensioner for oil pump drive chain -arrows-.
