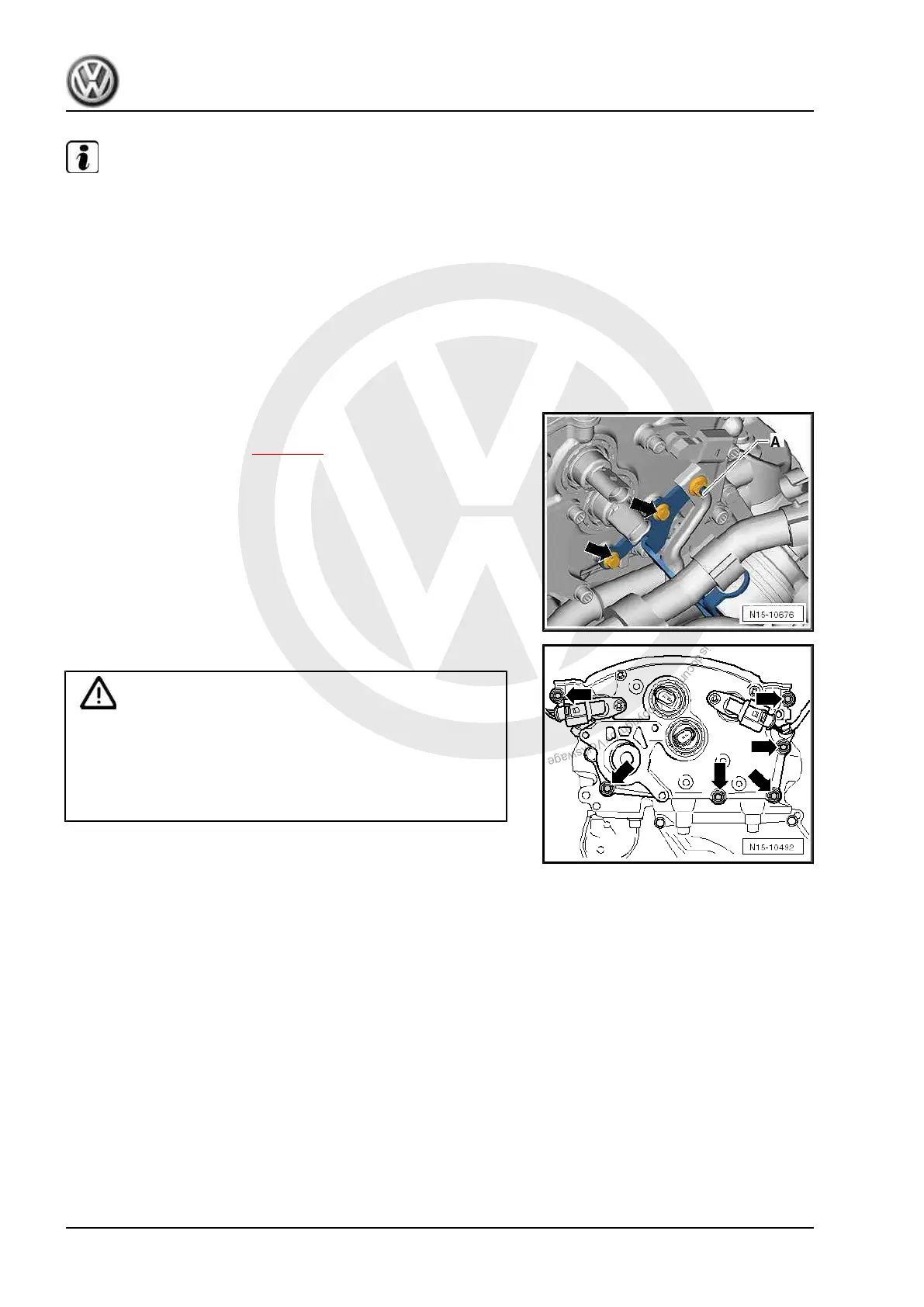

Note
Before removing connectors, mark each connector and compo‐
nent to which it belongs.
– Disconnect connectors from the following components of cov‐
er:
♦ Inlet camshaft control valve 1 - N205-
♦ Exhaust camshaft control valve 1 - N318-
♦ Hall sender - G40-
♦ Hall sender 2 - G163-
– Move wiring harness clear.
– Unscrew nut -A- and remove bolts -arrows-.
– Remove vacuum pump ⇒ page 93 .
– Remove cover securing bolts -arrows- and lever off cover.
Caution
♦ Cover lower chain housing carefully so that no parts can
fall into it.
♦ Securing bolts for camshaft timing control valves must not
be completely removed at first, so that the valve is not
canted during removal.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
104 Rep. gr.15 - Cylinder head, valve gear
