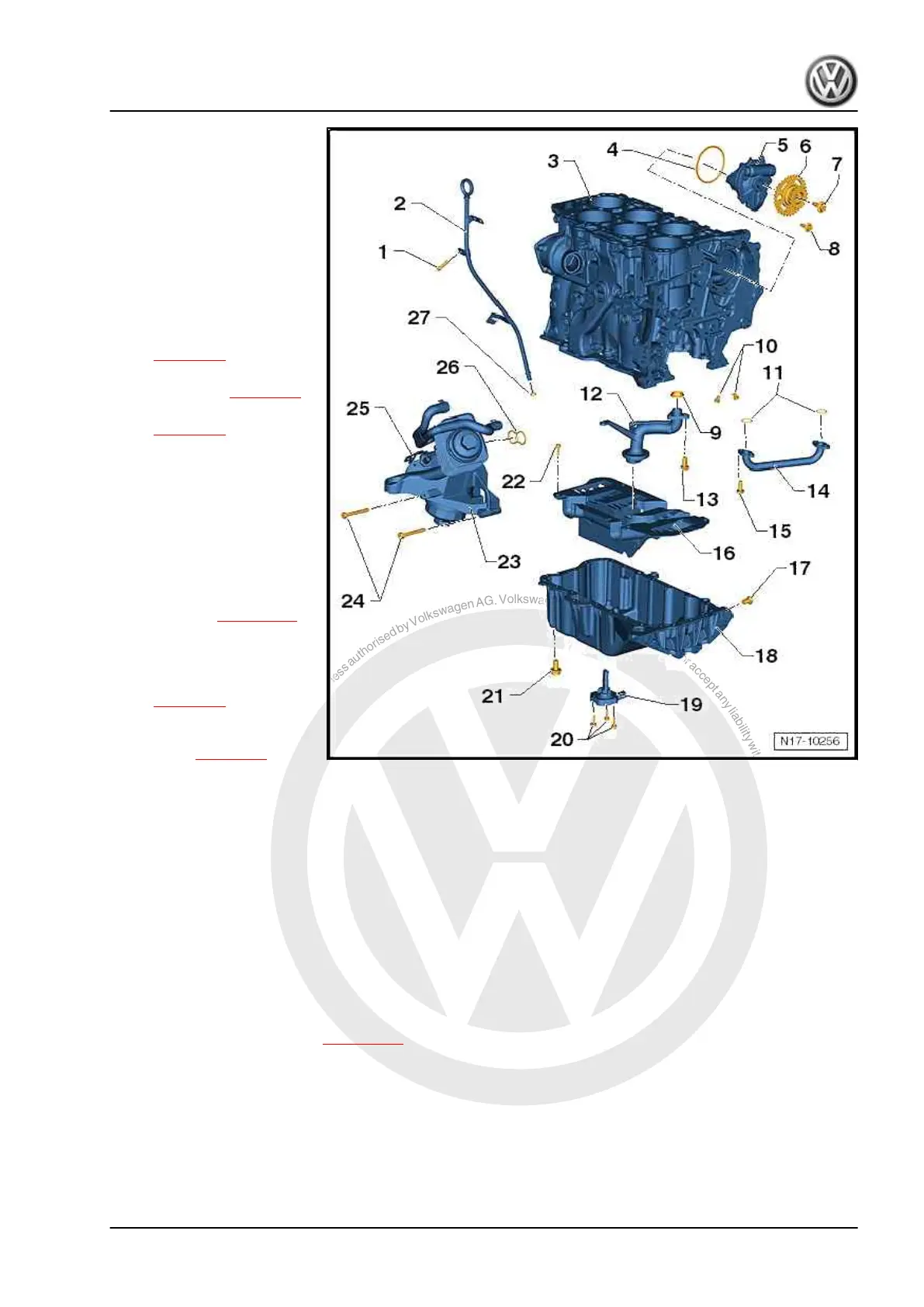

1 - 6 Nm
❑ Secured to intake mani‐
fold.
2 - Guide tube
❑ for oil dipstick
❑ Secured with bolt to in‐
take manifold.
3 - Cylinder block
❑ Removing and installing
sealing flanges and fly‐
wheel/drive plate
⇒ page 36
❑ Removing and installing
crankshaft ⇒ page 49 .
❑ Pistons and conrods
⇒ page 56 .
4 - O-ring
❑ Renew
❑ Lubricate before as‐
sembling.
5 - Oil pump
❑ To remove oil pump, en‐
gine must be removed.
❑ Removing and installing
oil pump ⇒ page 122 .
6 - Sprockets
❑ For timing chain
❑ Removing and installing
⇒ page 30
❑ Install camshaft adjust‐
er with camshaft timing
chain ⇒ page 64 .
7 - 60 Nm +
1
/
4
turn (90°) further
❑ Renew
8 - 8 Nm
❑ Install with locking fluid
9 - Seal
❑ Renew
❑ Lubricate before assembling.
10 - Oil spray jet
❑ For crankshaft bearings 2 to 7
❑ For piston cooling
❑ Opening pressure: 2.0 bar
❑ Removing and installing ⇒ page 128
11 - Seal
❑ Renew if damaged
❑ Lubricate before assembling.
12 - Oil intake tube
❑ Clean strainer if soiled
13 - 8 Nm
❑ Install with locking fluid
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
1. Sump, oil pump 117
