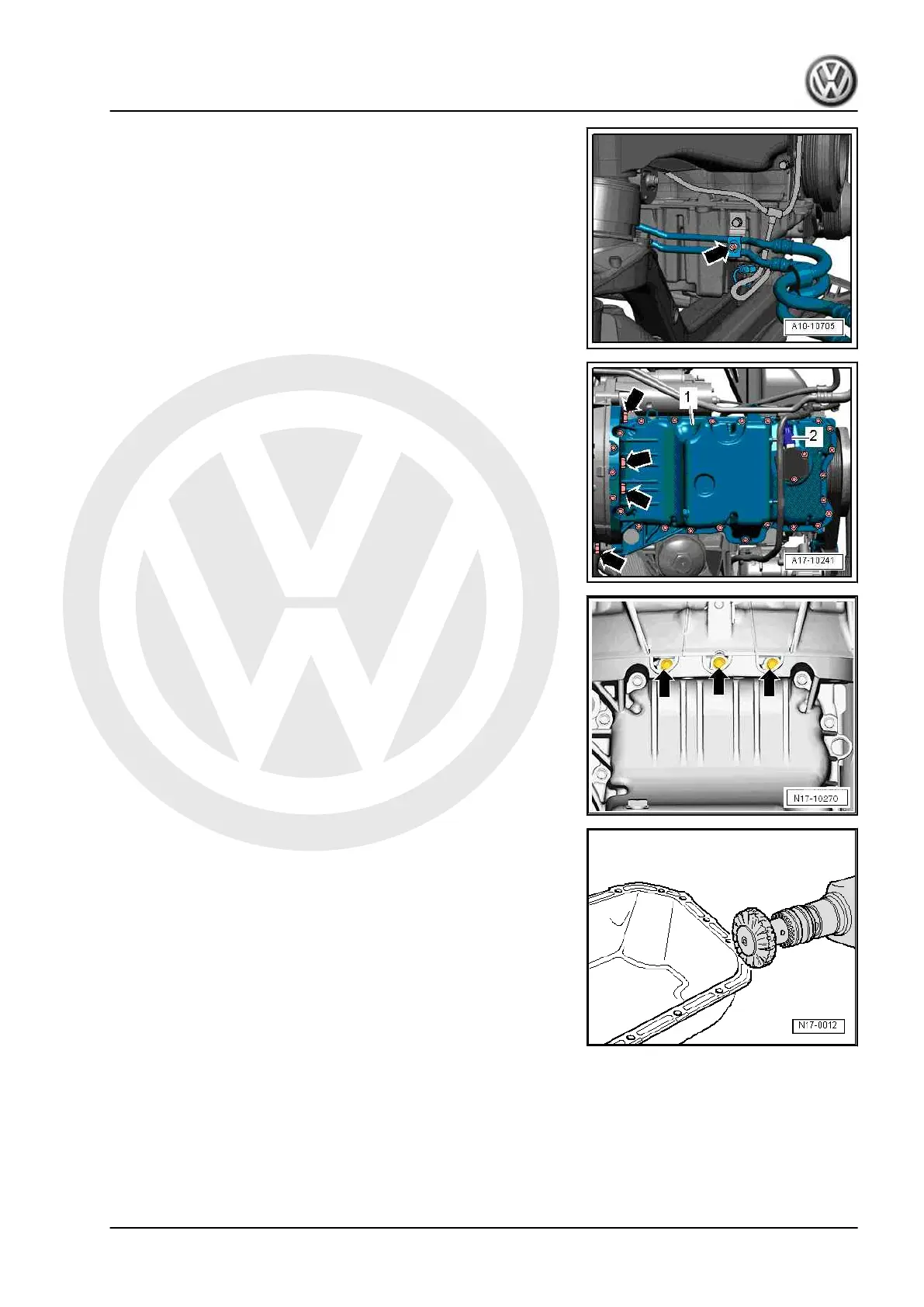

– Unscrew bolt -arrow- on retainer for ATF lines.
– Disconnect electrical connector -2- on oil level and oil temper‐
ature sender - G266- .
– Lay wiring harness on sump to one side.
– Unscrew gearbox/sump securing bolts -arrows-.
– Loosen bolts for sump -1- diagonally, and unscrew them.
– Remove sump bolts on the gearbox side -arrows- using bit
XZN 8 - T40159- through holes in gearbox.
– Carefully lever sump off cylinder block.
– Remove sealant residue from cylinder block with a flat scraper.
– Remove sealant residue on sump with a rotating brush, e.g.
an electric drill with plastic brush attachment (wear eye pro‐
tection).
– Clean sealing surfaces; they must be free of oil and grease.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
1. Sump, oil pump 121
