♦ Not illustrated:
♦ Adapter - V.A.G 1318/20-
♦ Adapter - V.A.G 1318/20-1-
♦ Container for removed parts - V.A.G 1698-
♦ Left subframe mounting - VAS 6131/6-1-
♦ Right subframe mounting - VAS 6131/6-2-
♦ Left running gear support - VAS 6131/6-3-
♦ Right running gear support - VAS 6131/6-4-
♦ Support - VAS 6131/6-5- (qty. 2)
♦ Support - VAS 6131/6-6- (qty. 2)
♦ Gearbox support - VAS 6131/6-7-
♦ Grease (vehicles with manual gearbox) - G 000 1000-
♦ Cable tie
Note
♦
Use suitable materials, e.g. cable ties, to attach all disconnec‐
ted cables and wires to the engine/assembly (depending on
»origin«). Fit dummy plugs in all open connections.
♦
Move the selector lever to the “N” position so that the propshaft
can turn freely.
♦
To make sure you can still move the front wheels when the
battery has been disconnected, only disconnect the battery
with the ignition key inserted.
Procedure:
The engine is removed downwards with gearbox.
– Vehicles with air suspension: Activate jacking mode ⇒ Rep.
gr. 43 .
– Disconnect battery ⇒ Rep. gr. 27 ; Electrical system .

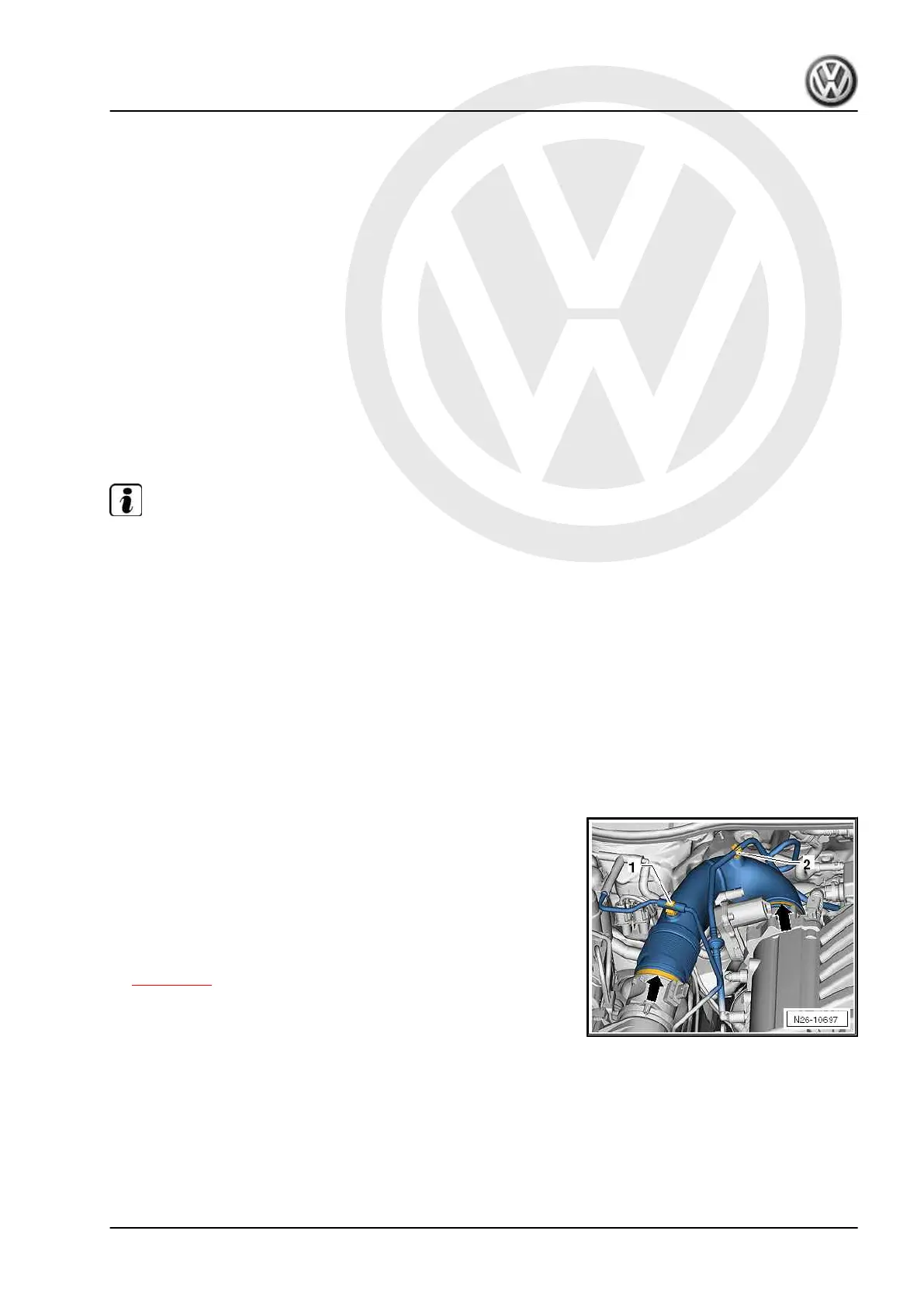

– Detach hoses -1- and -2- and remove air pipe -arrows-.
– Open clips and remove upper part of air filter.
– Remove wiper arms ⇒ Electrical system; Rep. gr. 92 ; Wind‐
screen wiper system .
– Remove plenum chamber cover ⇒ Body - front; Rep. gr. 50 ;
Plenum chamber cover .
– Remove protective housing from engine control unit
⇒ page 246 .
– Pull engine wiring harness off engine control unit.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
1. Removing and installing engine 9
