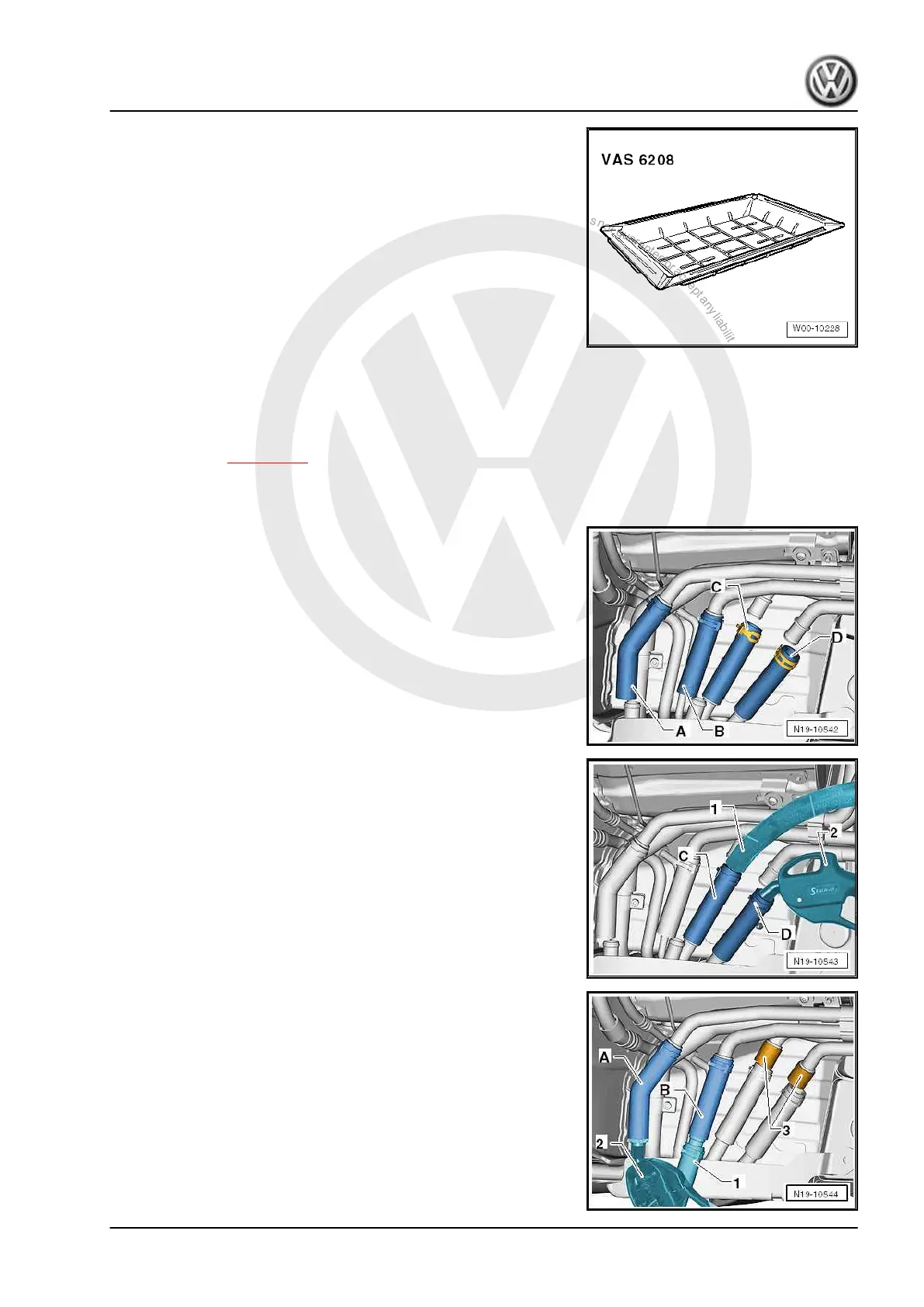

♦ Drip tray for workshop hoist - VAS 6208-
♦ Hose extension ∅ 20 mm
♦ 2 x dummy plugs ∅ 20 mm
♦ Compressed air gun
– Drain coolant ⇒ page 154 .
– Remove front left wheel ⇒ Rep. gr. 44 .
– Remove front left wheel housing liner ⇒ Rep. gr. 66 .
– Open clips -A ... D- and pull off coolant hoses.
– Extend the line -C- with a suitable hose -1- so that it ends in
drip tray for workshop hoist - VAS 6208- .
– Apply maximum air pressure of 1 bar in line -D- by means of
pneumatic cartridge gun-2- until circuit is completely drained.
– Fit dummy plugs -3- as shown and extend line -B- with a suit‐
able hose -1- so that it ends in drip tray for workshop hoist -
VAS 6208- .
– Apply maximum air pressure of 1 bar in line -A- by means of
pneumatic cartridge gun -2- until circuit is completely drained.
– Re-attach coolant hoses and secure with clips.
