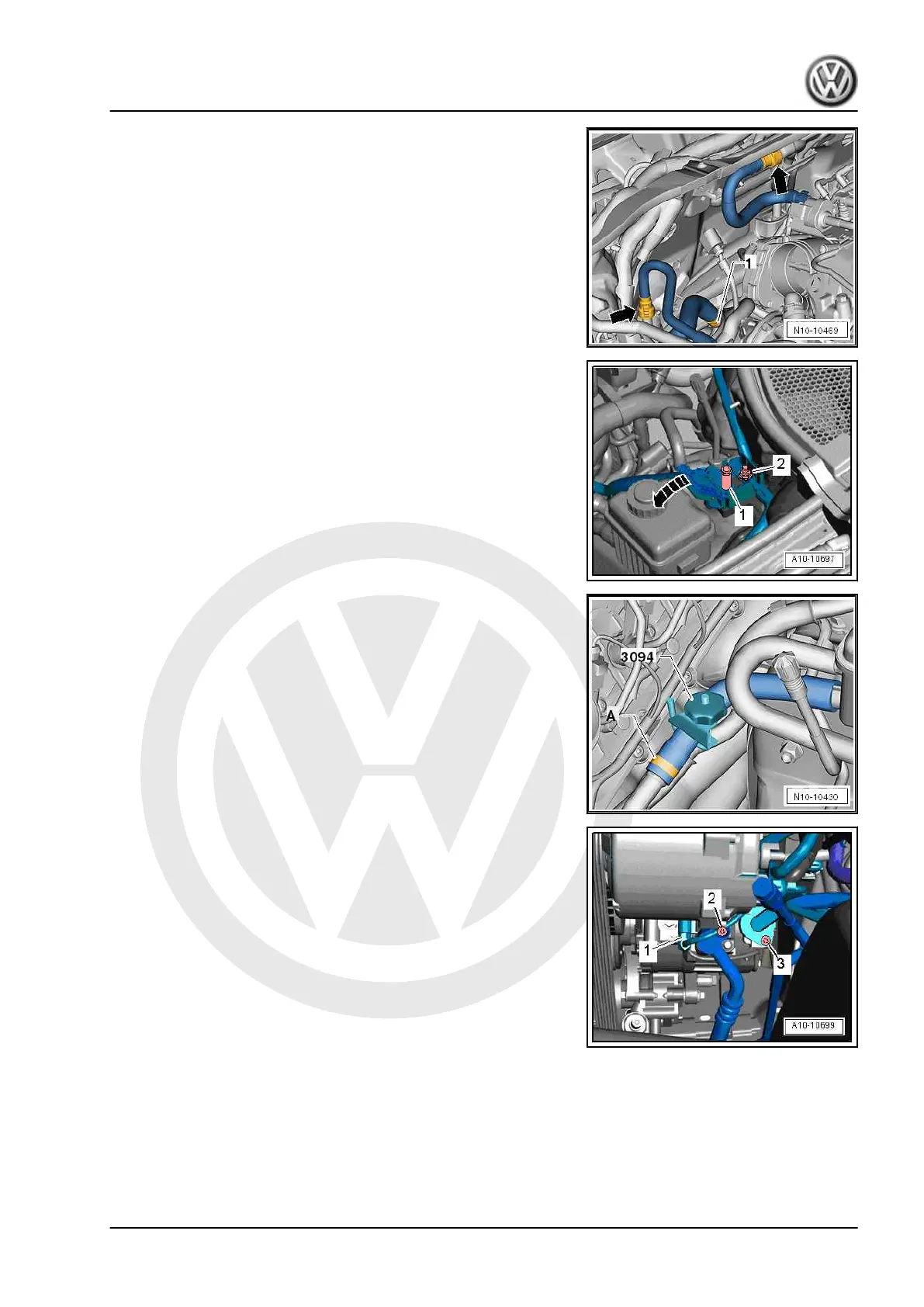

– Disconnect vacuum lines -arrows-. Hose -1- can be disregar‐
ded.
– Open cover above terminal B+ distribution box -arrow-.
– Unscrew and disconnect positive wire:
1 - To alternator
2 - To starter
– Move electrical wiring clear.
– Siphon off refrigerant of the air-conditioning system ⇒ Rep.
gr. 87 .
– Detach power-assisted steering hose together with clamps up
to 25 mm - 3094- . Pull hose -A- off power-steering pump.
– Detach refrigerant lines -2 and 3- from air-conditioning com‐
pressor.
– Remove noise insulation ⇒ General body repairs, exterior;
Rep. gr. 50 ; Assembly overview - noise insulation .
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
1. Removing and installing engine 11
