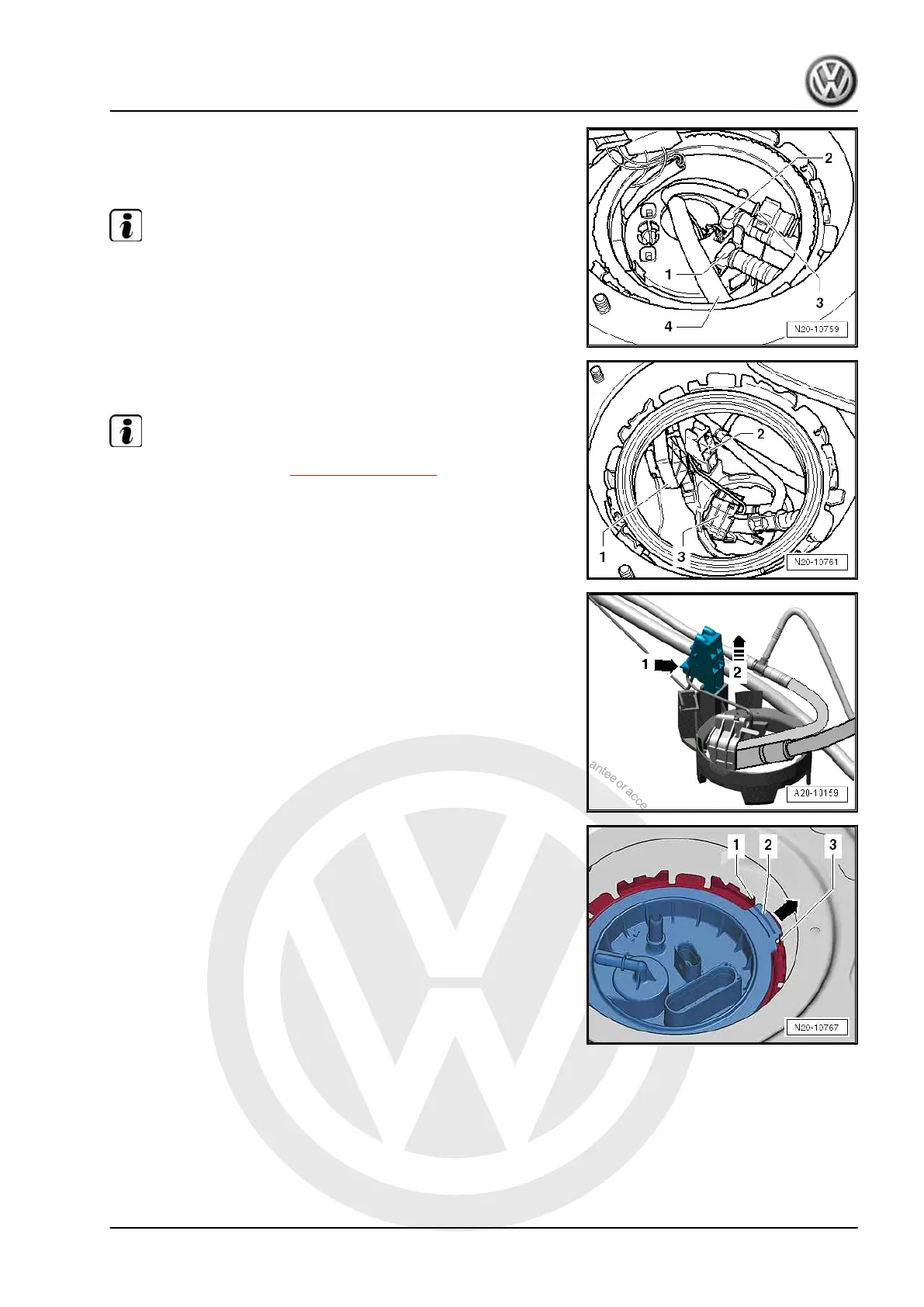

– Unclip black supply/filler hose -1- and -2- from fuel delivery unit
housing.
– Detach fuel supply line -3- from suction-jet pumps.
Note
Press in securing ring to release fuel line.
– On the left side of the fuel tank, unclip bracket -2- of suction-
jet pumps -3-.
Note
The rear suction jet pump ⇒ Item 10 (page 178) is not visible in
the illustration.
– To remove suction-jet pump, press locking lug -1-.
Pull suction-jet pumps together with supply/filler hoses and fuel
lines out of left opening of fuel tank.
Installing:
Installation is carried out in the reverse order. When installing,
note the following:
– First renew seals of sender flanges.
– Insert flange in direction of travel -arrow-.
Lug of flanges -2- must stay between tabs -1- and -3- of fuel tank.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
2. Parts of fuel supply system 187
