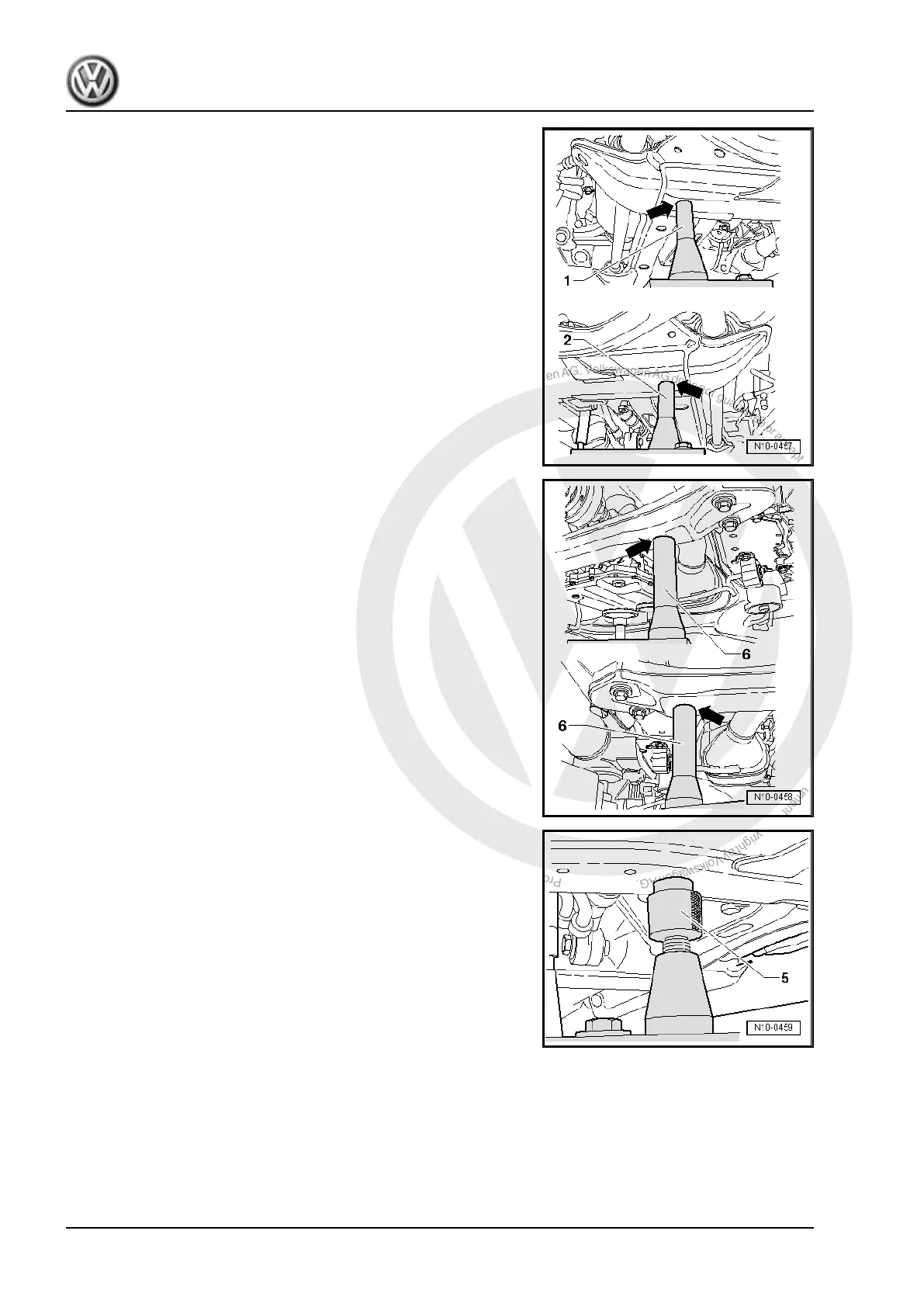

– The supports -1- and -2- must be guided into corresponding
mountings on left and right -arrow-.
– At the same time, guide the supports -6- for the left and right
sides of the gearbox transverse into corresponding holes
-arrows-.
When all four supports are in the receptacle holes without pres‐
sure:
– Guide supports -5- into their respective receptacles in sub‐
frame. If necessary, adjust support height with knurled nut.
– Screw all supports to scissor-lift table , tightening to 20 Nm.
– Bolt on the rotating plates of supports 3 and 4 under the wish‐
bones, applying a small amount of pretension.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
18 Rep. gr.10 - Removing and installing engine
