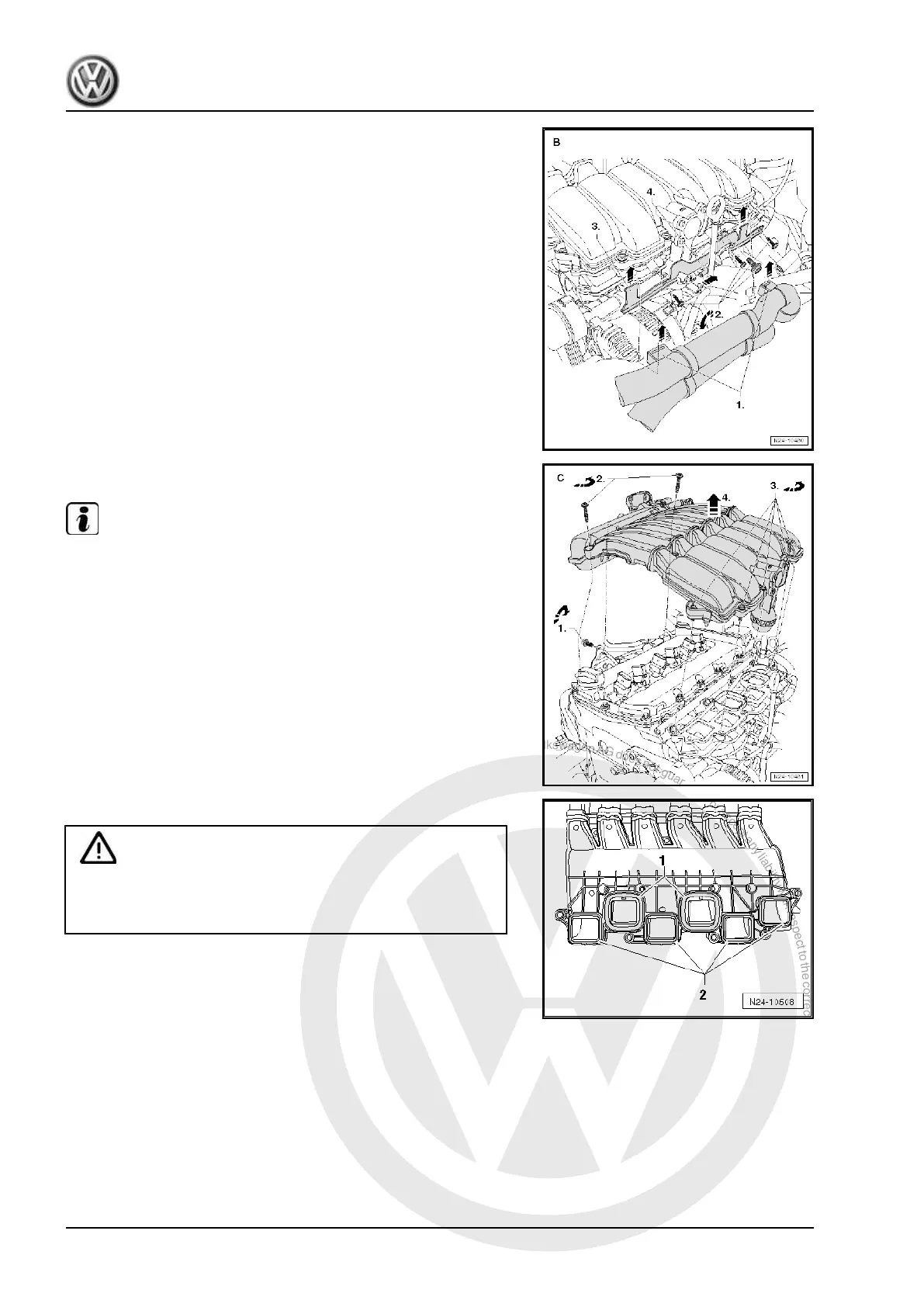

– Detach coolant hoses, unscrew bolts, remove bracket and pull
vacuum hose off.
– Unscrew bolts and remove intake manifold.
Note
Block off intake ports in lower part of cylinder head with a clean
cloth.
Installing:
Caution
Seals must always be fitted to upper part of intake manifold. If
seals remain in lower part in intake manifold then the system
will leak.
– Insert seals into upper part of intake manifold and lightly mois‐
ten with clean engine oil.
-1- »Large« O-rings
-2- »Small« O-rings
– Position upper part of intake manifold onto lower part of intake
manifold.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
238 Rep. gr.24 - Mixture preparation - injection
