Removing:
Note
♦
Note safety precautions before beginning work ⇒ page 173 .
♦
Observe rules for cleanliness ⇒ page 215 .
♦
If the fuel rail is removed, the injector O-ring, support washer,
spring element and combustion chamber seal must always be
renewed ⇒ page 225 .
♦
The seal ⇒ Item 22 (page 219) must also be renewed for the
injectors for cylinders 1, 3 and 5.
♦

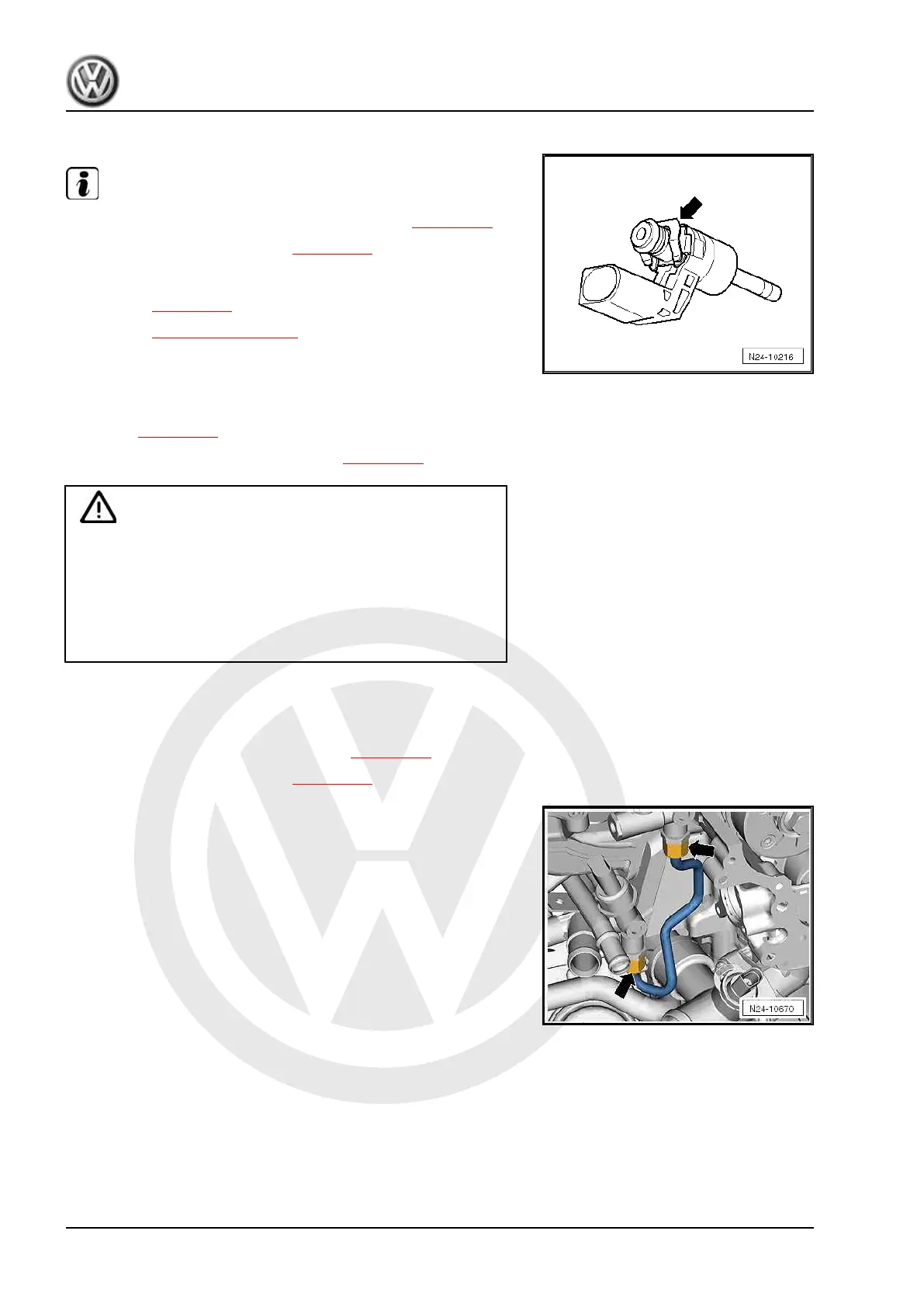

If the fuel rail is removed the injector spring elements -arrow-
must be renewed.
♦
Assembly overview - fuel rail with high-pressure pump and in‐
jectors ⇒ page 217 .
♦
Assembly overview - intake manifold ⇒ page 233 .
Caution
Observe the following during all assembly work, particularly in
the engine compartment due to the restricted space:
♦ Route lines of any kind and cables so that original routing
is restored.
♦ Ensure that there is sufficient clearance to all moving or
hot components.
– Disconnect earth strap at battery with ignition switched off ⇒
Electrical system; Rep. gr. 27 ; Disconnecting and connecting
battery.
– Remove upper part of intake manifold ⇒ page 236 .
– Remove high-pressure pump ⇒ page 249 .
– Remove connecting pipe of fuel rail -arrows-.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
240 Rep. gr.24 - Mixture preparation - injection
