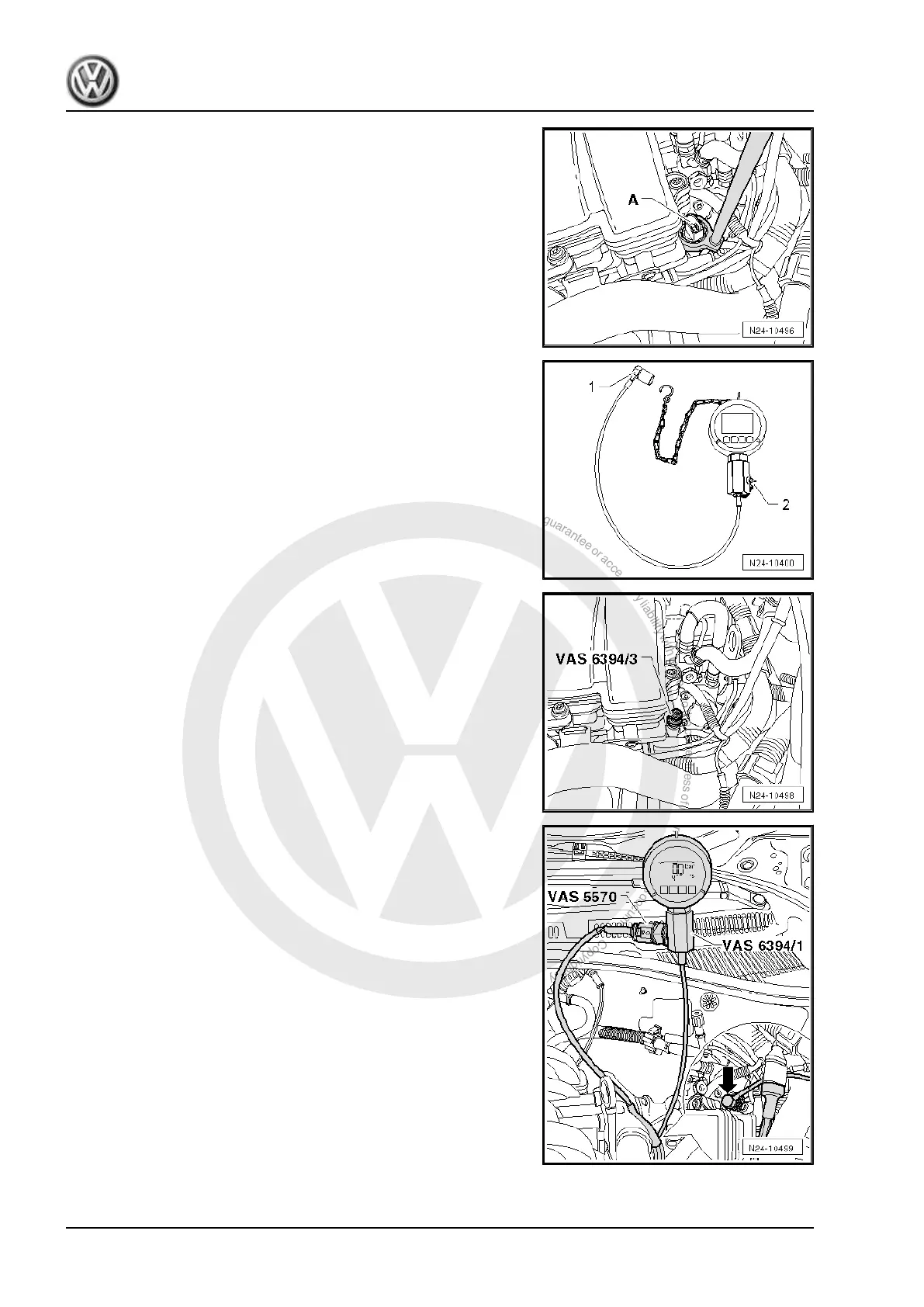

– Pull connector off fuel pressure sender -A- and remove fuel
pressure sender using open ring spanner.
– Unscrew plug -2- and screw fuel pressure sender - G247- into
tester - VAS 6394/1- . Specified torque: 22 Nm.
– Moisten tapered seal of adapter - VAS 6394/3- with clean en‐
gine oil and screw into fuel rail. Specified torque: 22 Nm.
– Connect pressure line of tester - VAS 6394/1- to adapter - VAS
6394/3- -arrow-.
– Connect fuel pressure sender and electrical connector of fuel
pressure sender with the aid of test adapter - VAS 5570- .
