Aligning scissor-type assembly platform
Special tools and workshop equipment required
♦ Locating pins - VAS 6131/17-
Individual parts of positioning tool:
♦ Dot laser - VAS 6131/17-1-
♦ Adapter M14x1.5 - VAS 6131/17-2-
♦ Adapter M12x1.5 - VAS 6131/17-3-
♦ Adapter M10 - VAS 6131/17-4-

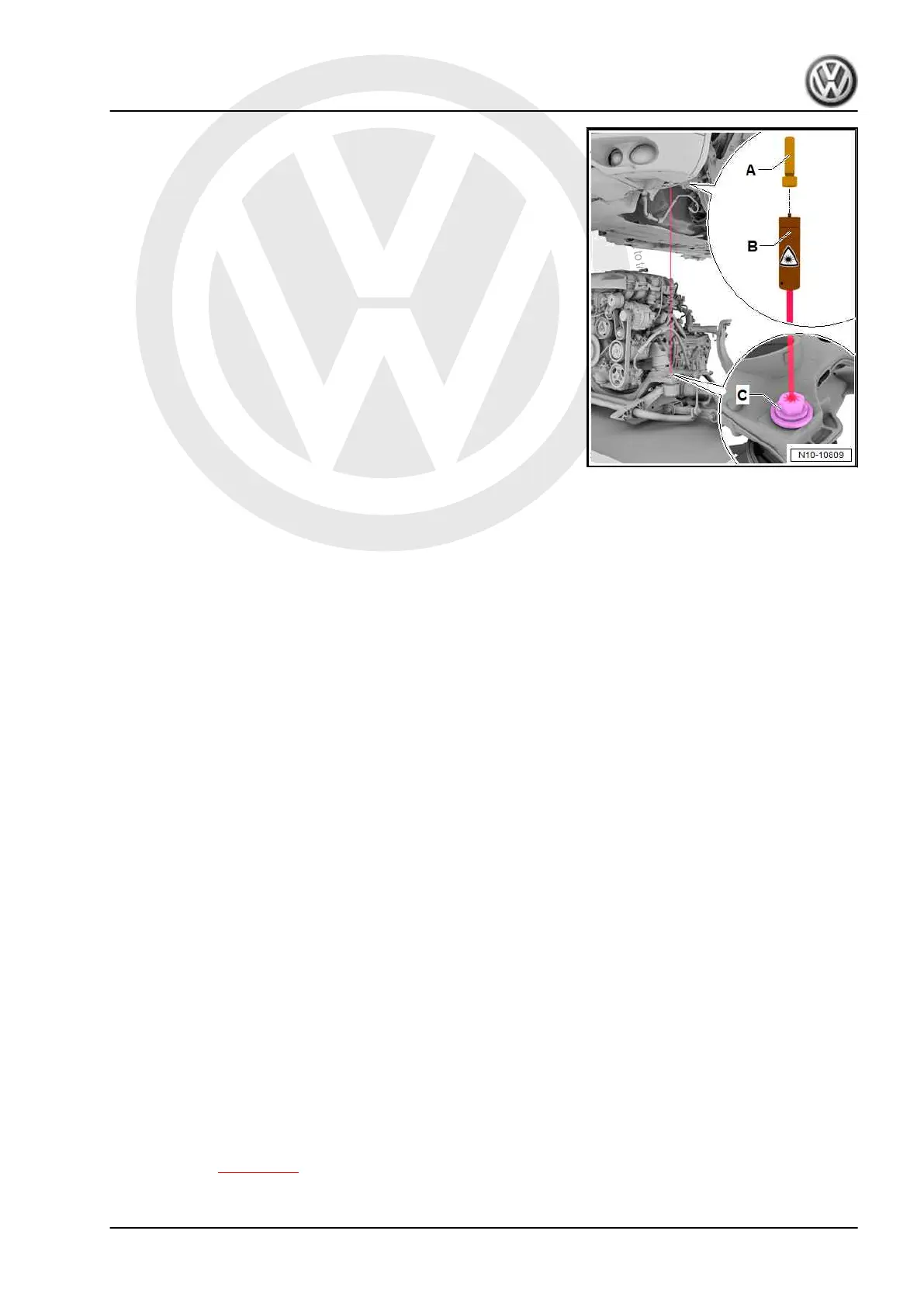

– Screw appropriate adapters -A- into threaded holes for secur‐
ing subframe to longitudinal member on left and right.
– Screw dot lasers - VAS 6131/17-1- -B- into adapters -A-.
– Insert securing bolts -C-, centred with bolt heads upwards in
appropriate securing points of subframe.
– Switch on dot lasers and align scissor-type assembly platform
so that the laser beams on left and right strike the bolt heads.
After completing alignment, remove dot lasers and adapters.
Installing engine
– Raise engine until it contacts the body using scissor-type as‐
sembly platform - VAS 6131- . Observe the inserted locating
pins - T10300- in the process.
– Bolt subframe to vehicle ⇒ Running gear, axles, steering; Rep.
gr. 40
– Reassemble all electrical connections, lines, hoses and con‐
nectors that were disconnected during removal.
– Installing plenum chamber cover ⇒ General body repairs, ex‐
terior; Rep. gr. 64 ; Removing and installing plenum chamber
cover
– Unscrew left and right wiper arms ⇒ Electrical system; Rep.
gr. 29 ; Removing and installing windscreen wiper system .
– Replenish oil in power-assisted steering ⇒ Running gear,
axles, steering, front and four-wheel drive; Rep. gr. 48 ;
Checking power-assisted steering oil level .
– Add coolant ⇒ page 158 .
– Replenish engine oil if necessary.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
1. Removing and installing engine 23
