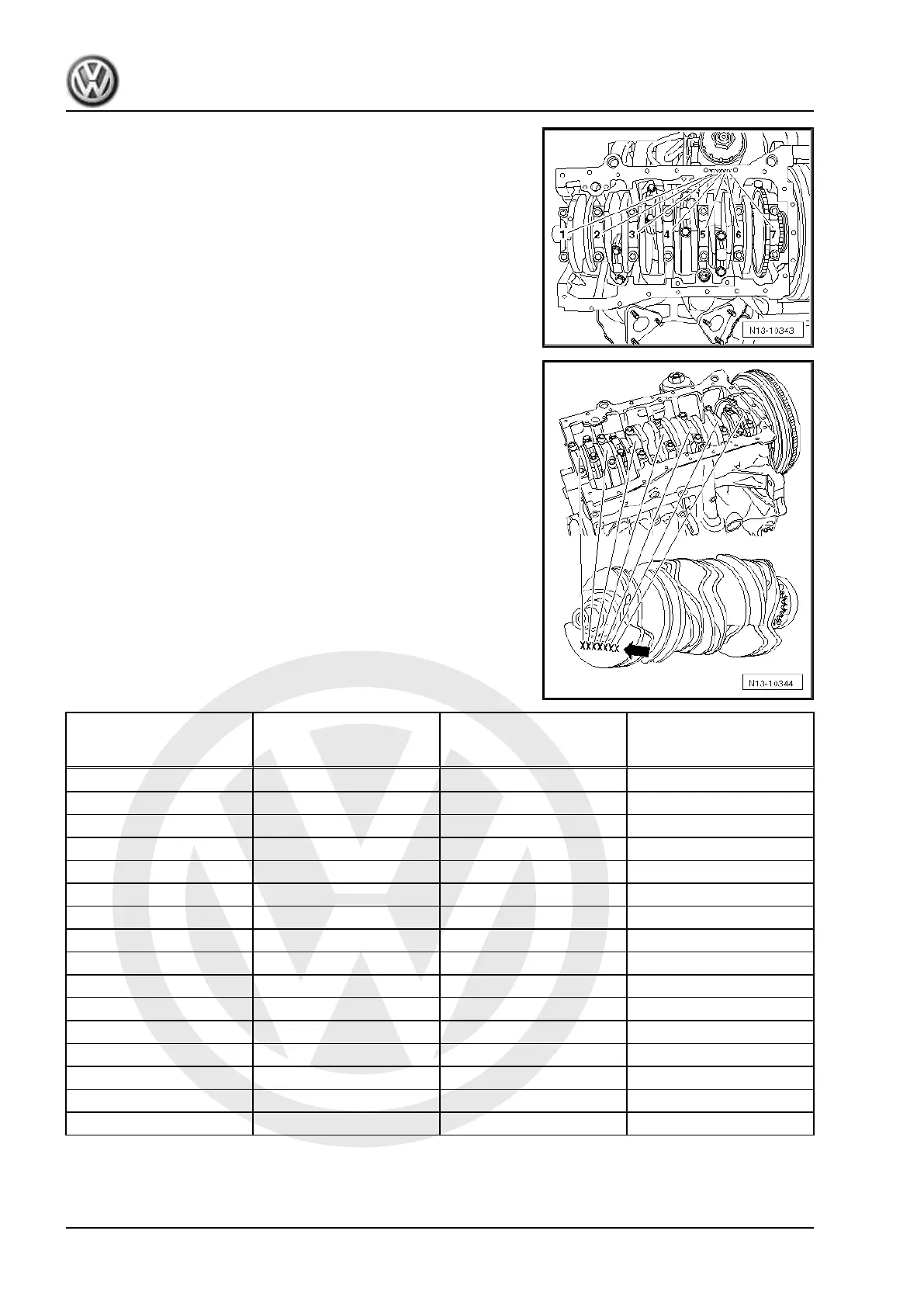

Letters on cylinder block:
The letters for the allocation of the bearing shells are located on
the sealing surface of the sump.
Letters on crankshaft:
The letters for the allocation of the bearing shells are located on
the outer crankshaft web of No. 1 cylinder.
– Note letters and identify colour code to be installed based on
table.
Letter on cylinder block Letter on crankshaft web Colour marking of bearing
shell for cylinder block (up‐
per bearing shell)
Colour marking of bearing
shell for bearing cap (low‐
er bearing shell)
A, B, C R red red
A, B, C G yellow red
A, B, C B yellow yellow
A, B, C V blue yellow
D, E, G R yellow red
D, E, G G yellow yellow
D, E, G B blue yellow
D, E, G V blue blue
H, I, K R yellow red
H, I, K G yellow yellow
H, I, K B blue yellow
H, I, K V blue blue
L, M R yellow yellow
L, M G blue yellow
L, M B blue yellow
L, M V violet blue
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
52 Rep. gr.13 - Crankshaft group
