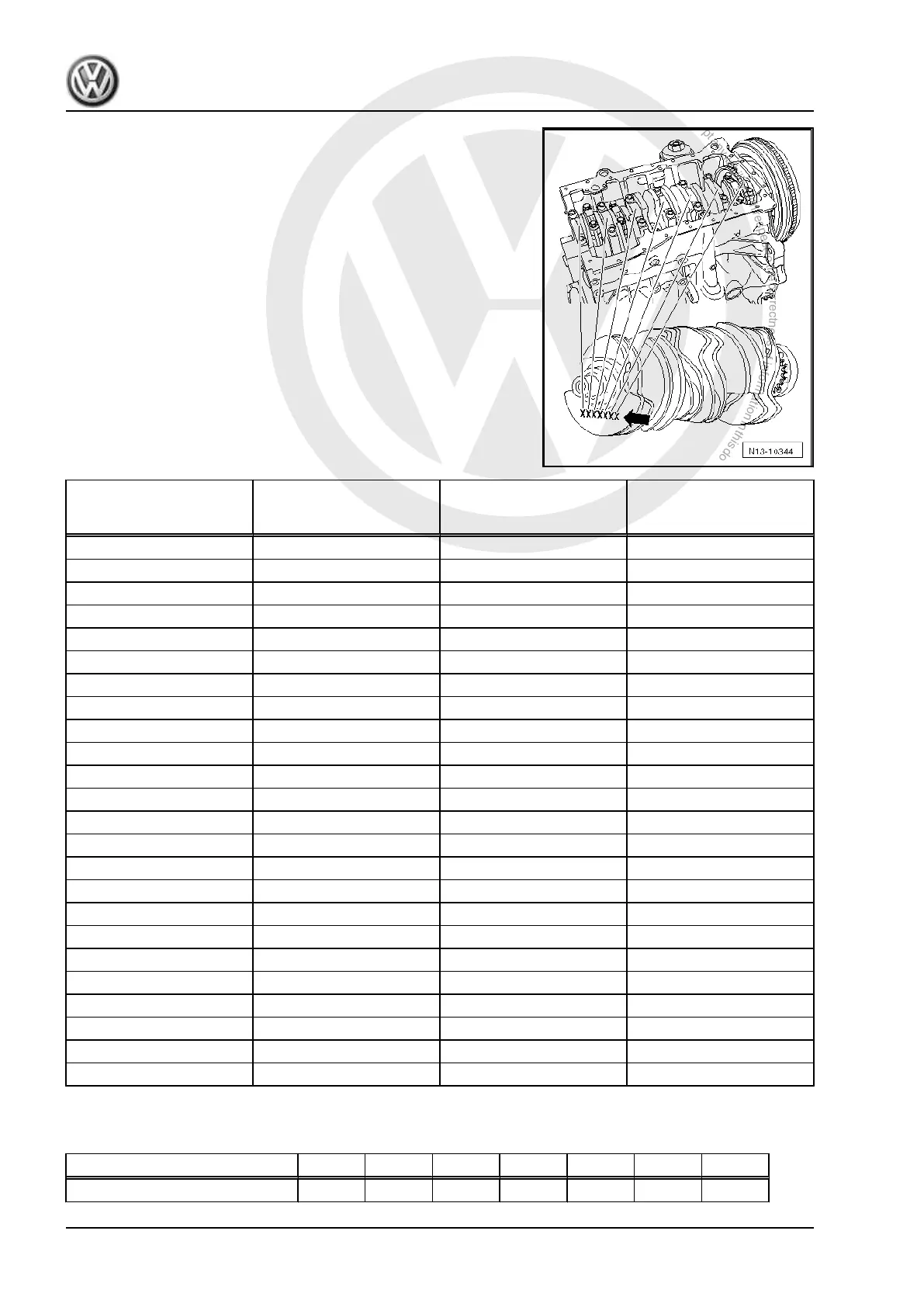

Letters on crankshaft:
The letters for the allocation of the bearing shells are located on
the outer crankshaft web of No. 1 cylinder.
– Note letters and identify colour code to be installed based on
table.
Letter on cylinder block Letter on crankshaft web Colour marking of bearing
shell for cylinder block (up‐
per bearing shell)
Colour marking of bearing
shell for bearing cap (low‐
er bearing shell)
A, B, C F red red
A, B, C E yellow red
A, B, C D yellow yellow
A, B, C C blue yellow
A, B, C B blue blue
A, B, C A violet blue
D, E, G F yellow red
D, E, G E yellow yellow
D, E, G D blue yellow
D, E, G C blue blue
D, E, G B violet blue
D, E, G A violet violet
H, I, K F yellow red
H, I, K E yellow yellow
H, I, K D blue yellow
H, I, K C blue blue
H, I, K B violet blue
H, I, K A violet violet
L, M F yellow yellow
L, M E blue yellow
L, M D blue yellow
L, M C violet blue
L, M B violet violet
L, M A violet violet
Example:
Crankshaft bearing 1 2 3 4 5 6 7
Letters on cylinder block G H H H G E G
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
54 Rep. gr.13 - Crankshaft group
