Note

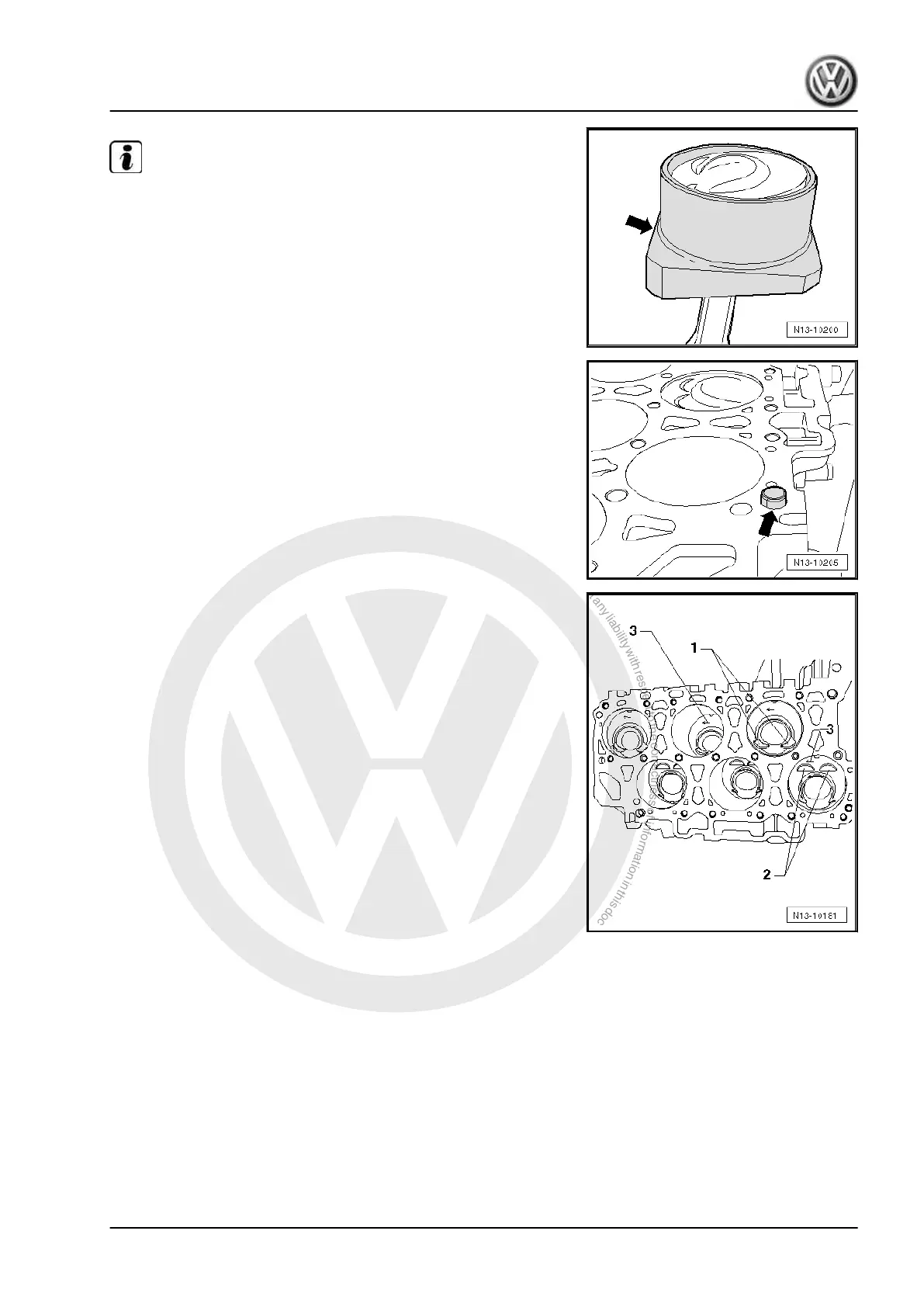

To fit the pistons, the piston fitting tool - T10333- with inserted
piston is positioned on the cylinder block so that the straight edge
of the higher side of the piston fitting tool -arrow- points to the
middle of the cylinder block.
Procedure
– Pull dowel sleeve -arrow- out of its hole before installing piston.
– The pistons for cylinders 1, 3 and 5 must be installed so that
the deep valve pockets -1- point to the middle of the cylinder
block and the arrows -3- to the vibration damper.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
4. Pistons and conrods 59
