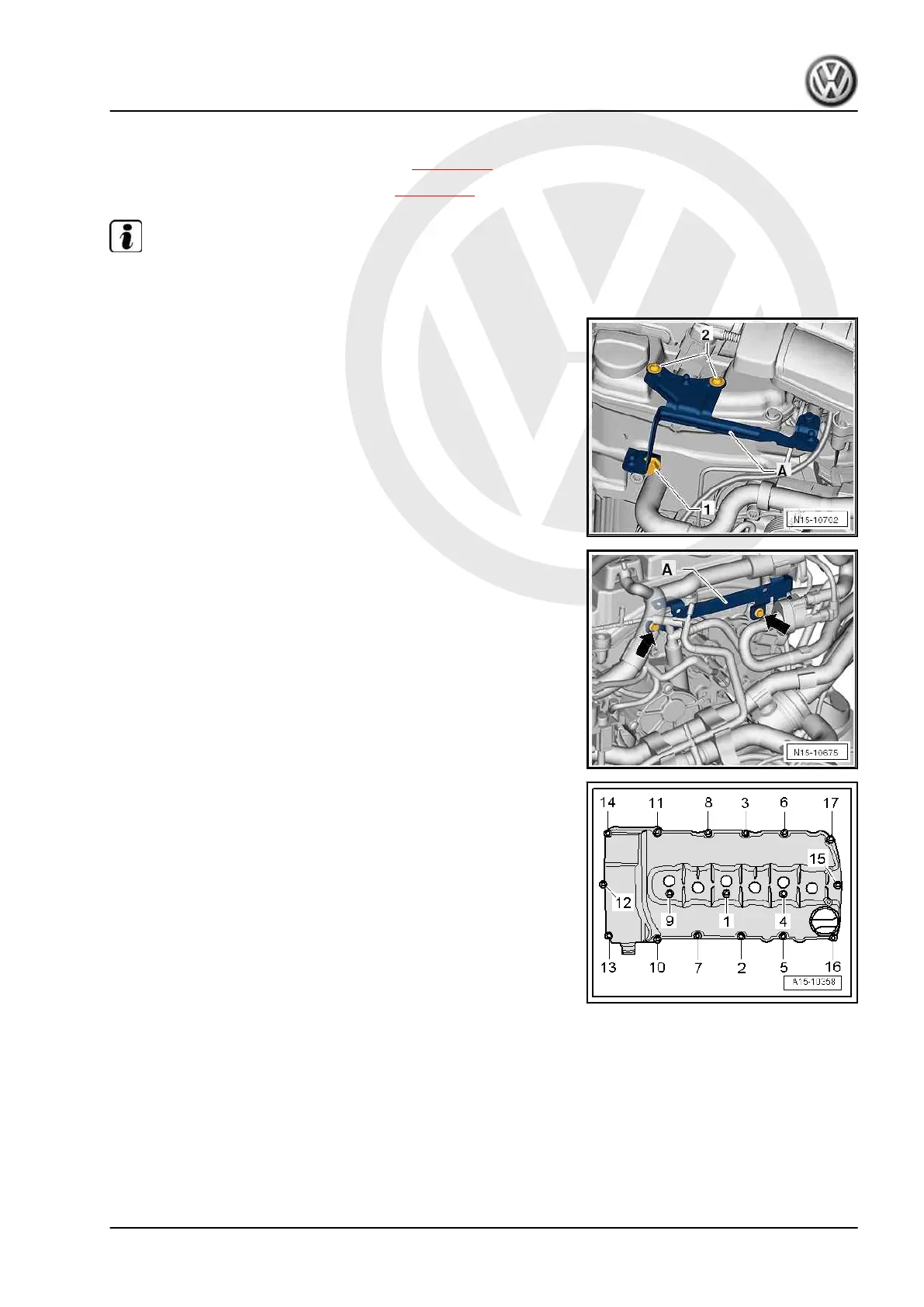

Removing:
– Remove ignition coils with output stages ⇒ page 272 .
– Remove upper part of intake manifold ⇒ page 236 .
Note
Seal intake ports in intake manifold and in cylinder head with a
clean cloth.
– Unscrew securing bolts -1- and -2- and remove bracket -A-.
– Expose electric cables at rear of cylinder head and unscrew
cable retainer -A- from cover.
– Pull off crankcase breather hose from cylinder head cover.
– Loosen bolts for cylinder head cover from outside in
-17 to 1-.
– Unscrew bolts and remove cylinder head cover.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
2. Cylinder head 91
