3.3.1 Pyramid diagram of
products, channels,
groups, scenes
The following pyramid diagram illustrates that the products controlled using
the WAREMA climatronic can (only) be combined to groups and scenes via
channels. An exception are local groups grouped via the terminals of avail-
able locking contacts, but which can only be operated together locally (de-
tailed description: see Chapter 5.3 on page 34).
Products
Channels
Scenes
Groups
Local groups

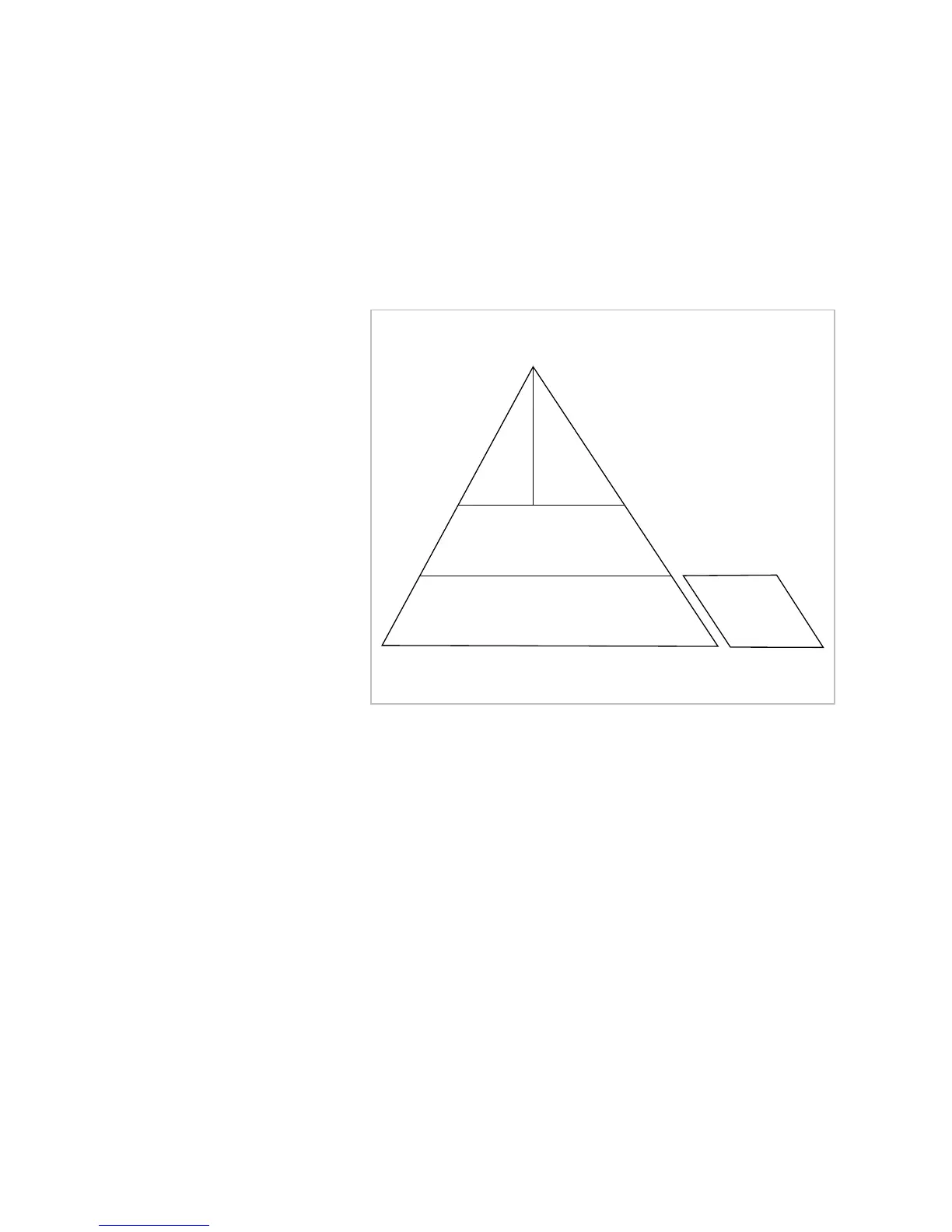

Fig. 4 Pyramid diagram of WAREMA climatronic concept
