7.2.9 Allocating outputs

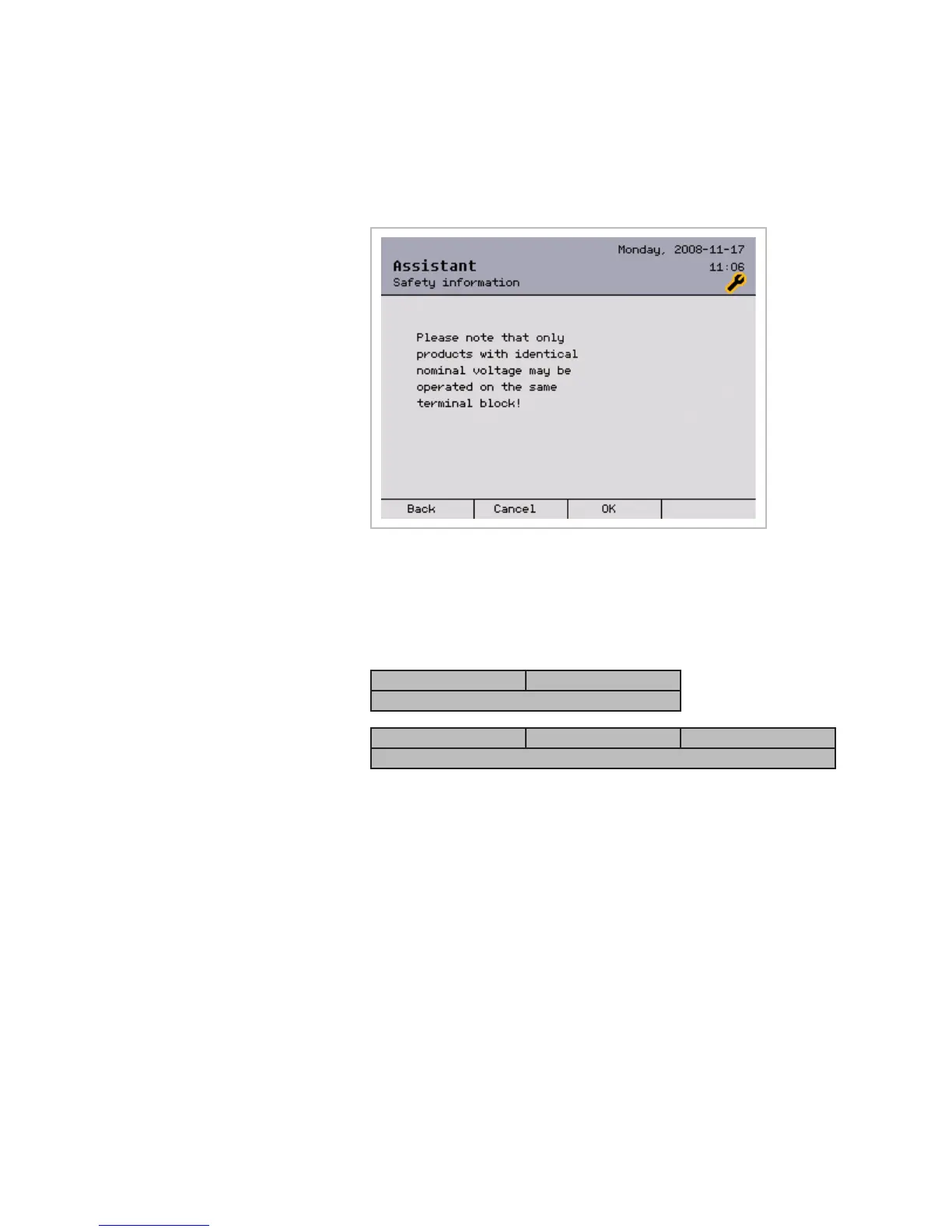

The following safety message appears:
Example The WAREMA 4M switch actuators have 2 and the 6M switch actuators have
3 terminal blocks (X2, X3, (X4)) for outputs.
The rated voltage of the products on the output terminals of a block must
be identical (same voltage and DC or AC) and lie in the range from 0...230
V.
X2 [A1.1|A1.2|A2.1|A2.2] X3 [A3.1|A3.2|A4.1|A4.2]
Switch actuator 4M
X2 [A1.1|A1.2|A2.1|A2.2] X3 [A3.1|A3.2|A4.1|A4.2] X4[A5.1|A5.2|A6.1|A6.2]
Switch actuator 6M
The above safety message must therefore be confirmed with the [OK] button.
In the next window, the output terminals of the actuators are allocated to the
products to be controlled.
