Xerox Phaser 3330

Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-59

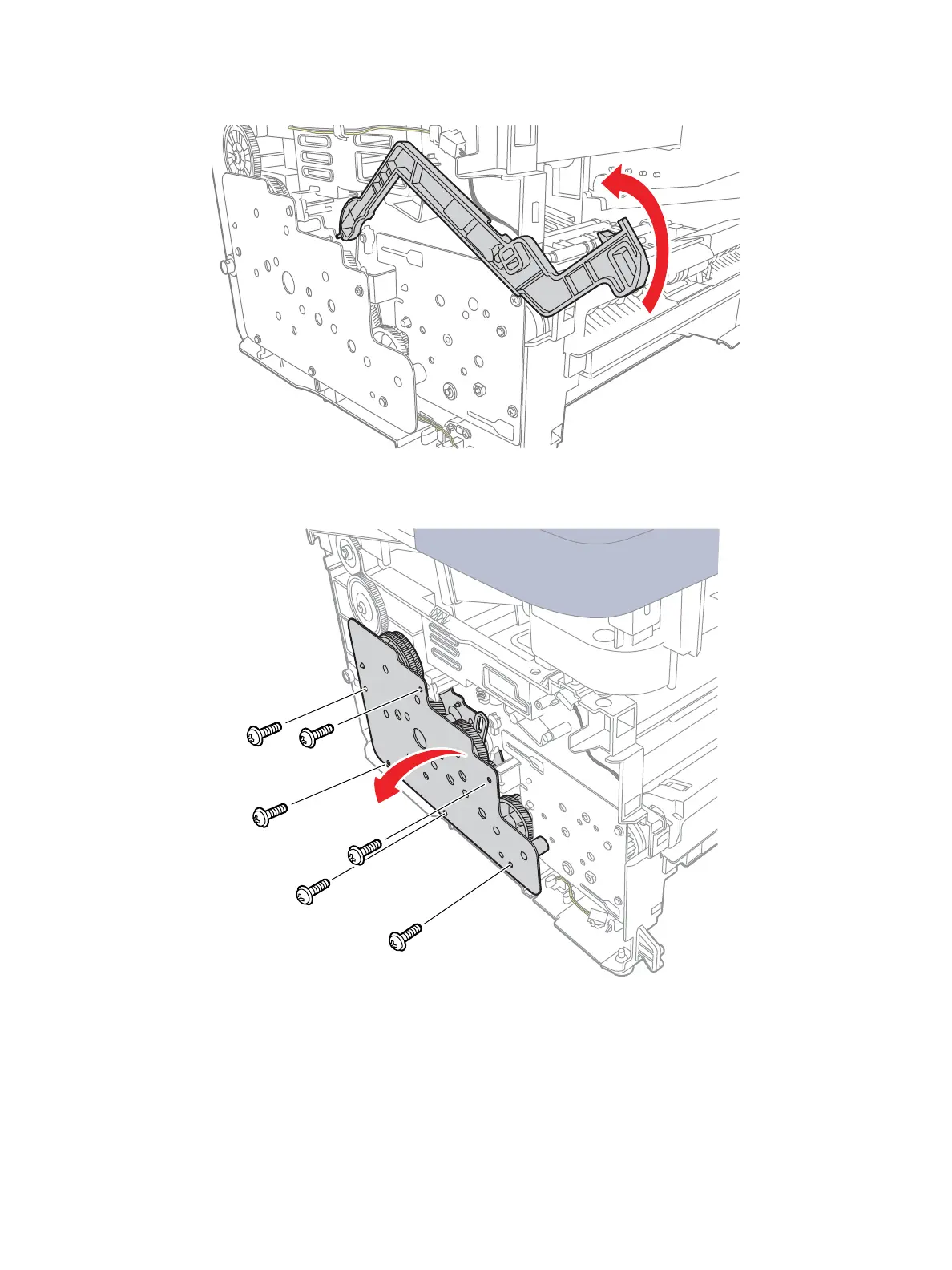

9. Remove 6 screws (silver, flanged, tap, 10 mm), and remove the Main Drive Assembly. (Parts List 3.5
Drive, PL 3.5.18)
s3320-059
s3320-083
1
2
3
4
5
6
