Xerox Phaser 3330

Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-60

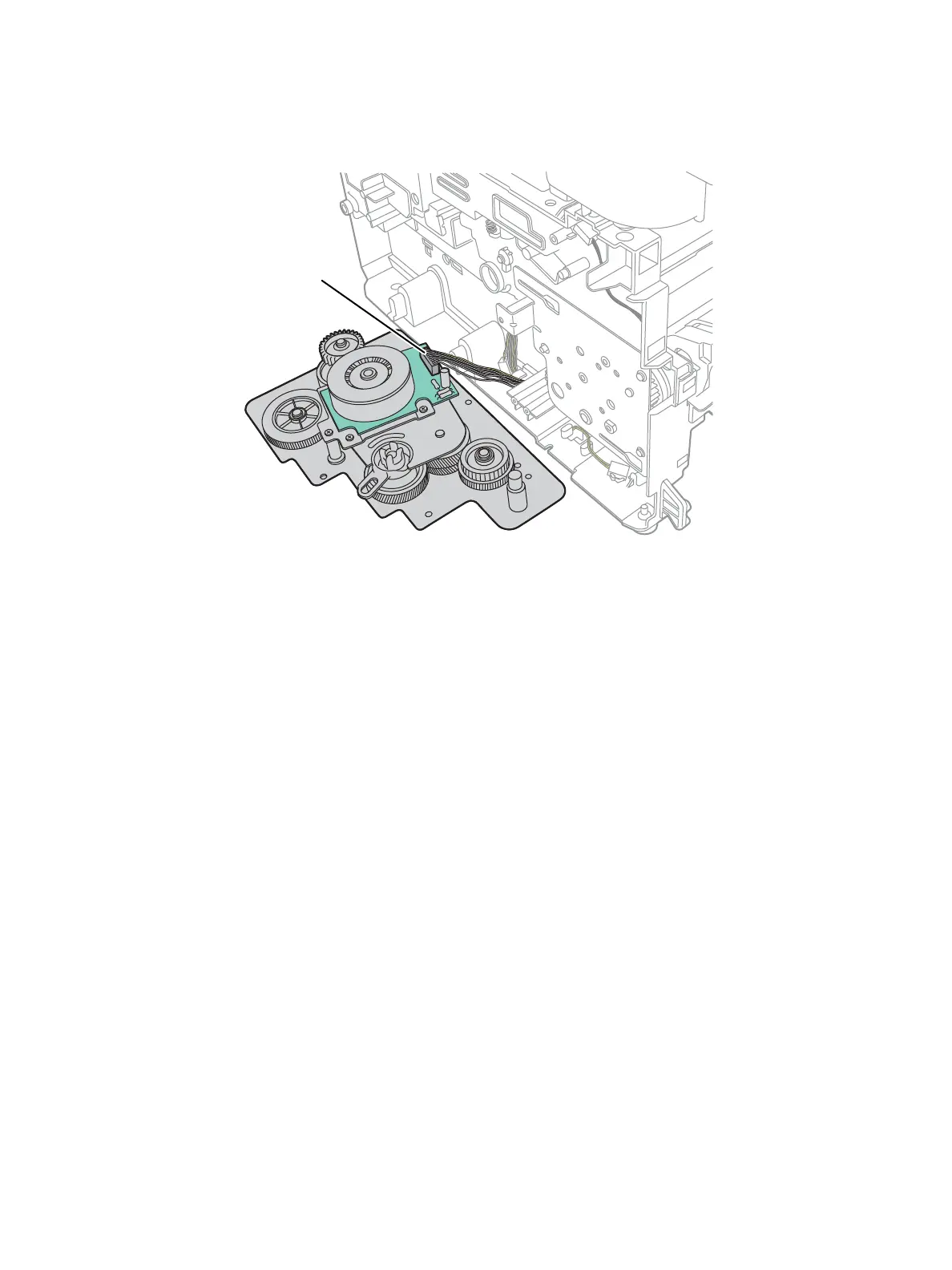

10. Disconnect P/J1 from the Main Motor and remove the Main Drive Unit. (Parts List 3.5 Drive, PL
3.5.18).
Replacement Note: Tighten the Main Drive screws in the order shown above.
s3320-084
P/J1
