Xerox Phaser 3330 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-83
4. Remove the Rear Door (page 4-13).
5. Remove the Left Cover (page 4-15).
6. Remove the Right Cover (page 4-17).
7. Remove the Top Cover, Phaser 3330 only, (page 4-18).
8. Remove the Scanner, WorkCentre 3335/3345 only, (page 4-103).
9. Remove the A4 Middle Platen, WorkCentre 3335/3345 only, (page 4-107).

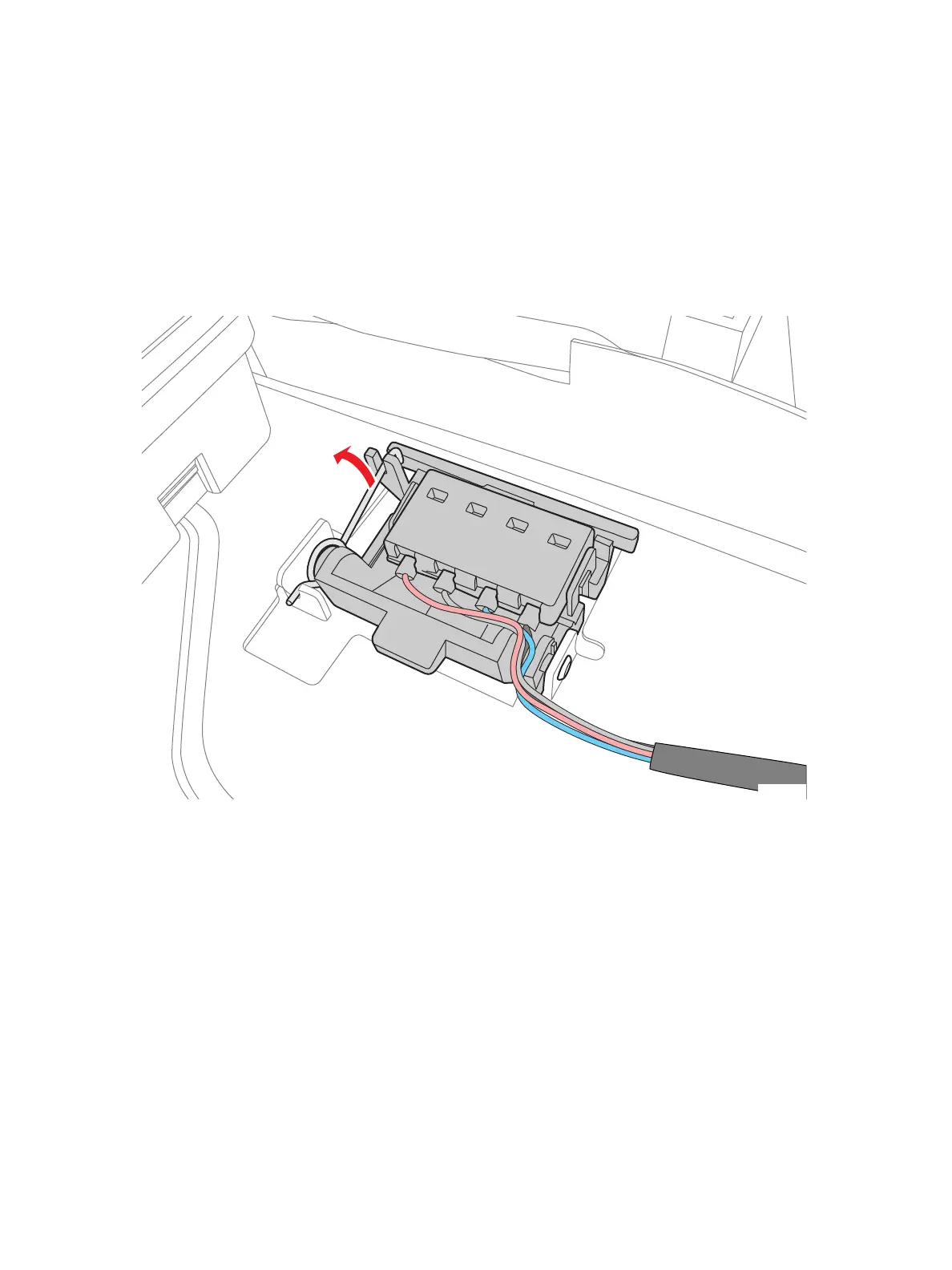

10. Disconnect the ribbon cable from the LSU, lift up the retaining bar and disconnect it from the
Lower CRUM Holder (Parts List 3.1 Frame (1 of 2), PL 3.1.12).
s3320-176
