Xerox Phaser 3330

Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-84

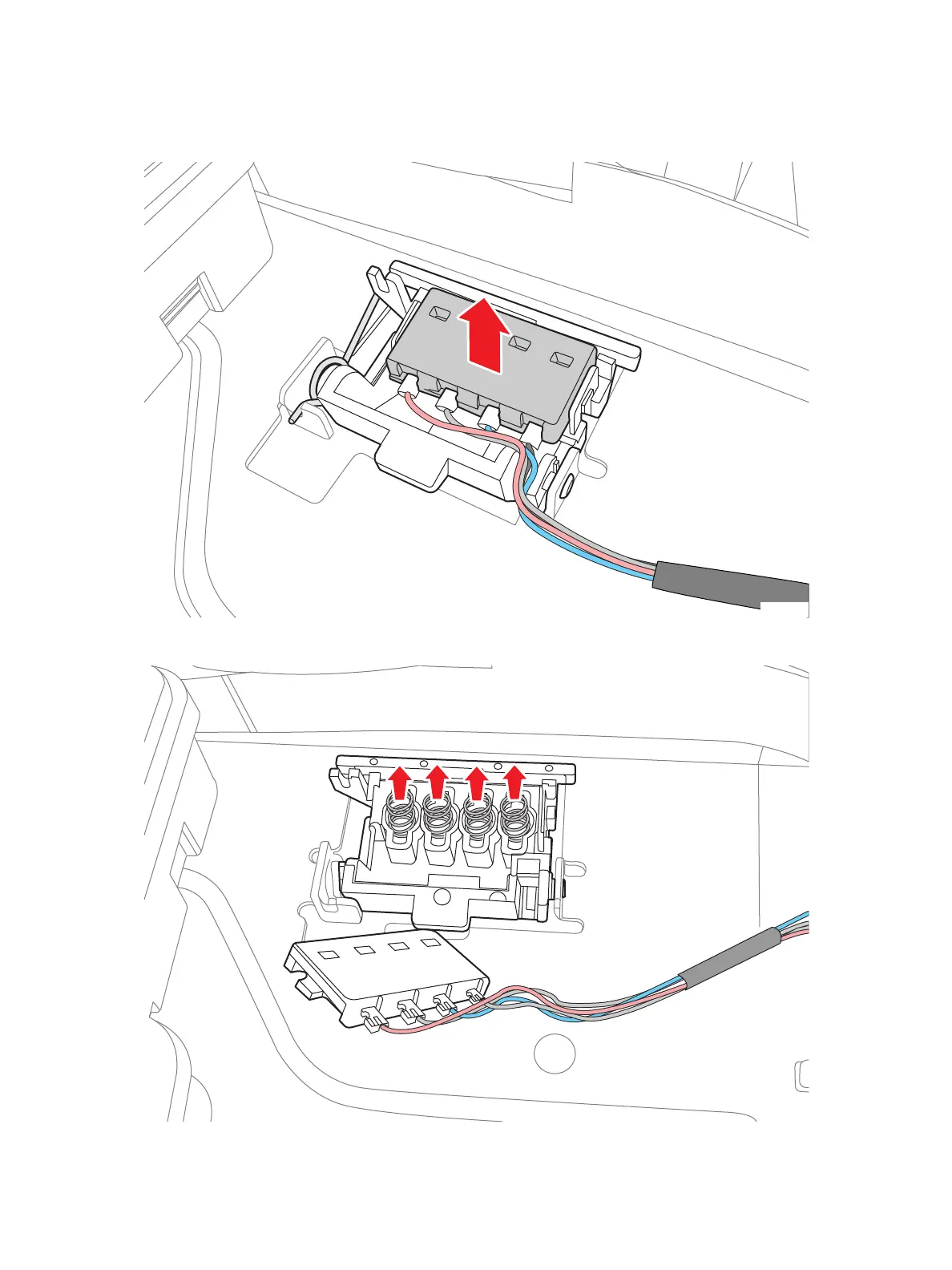

11. Disengage the tab and remove the Upper CRUM Holder (Parts List 3.1 Frame (1 of 2), PL 3.1.10)
from the Lower CRUM Holder (Parts List 3.1 Frame (1 of 2), PL 3.1.12).
12. Remove the CRUM Terminal(s) (Parts List 3.1 Frame (1 of 2), PL 3.1.11).
s3320-177
s3320-178
