5/2011
4-18
Phaser 4600/4620 Printer Service Manual
REP 3.6
Revision - Xerox Internal Use Only
Repairs

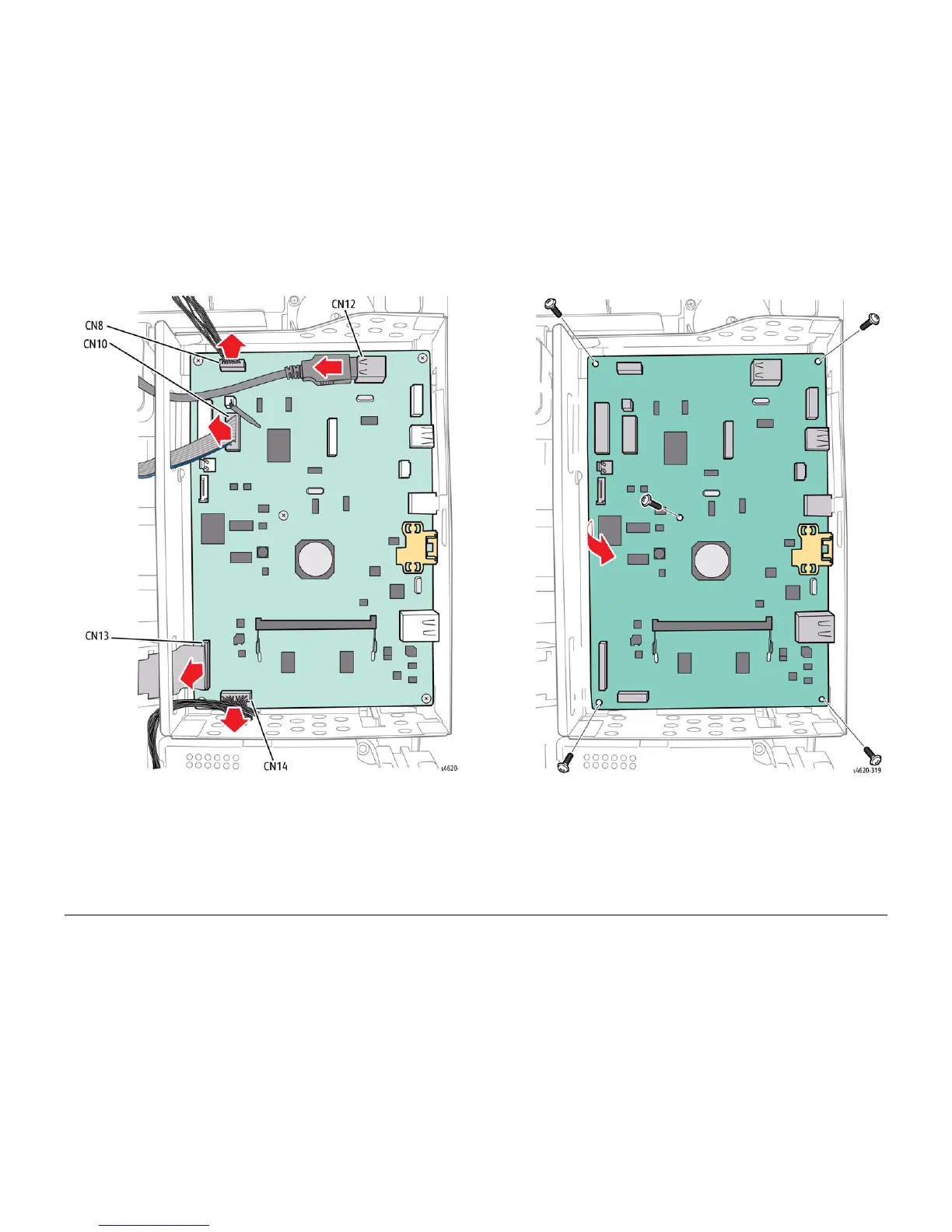

Figure 1 Disconnect the IP Board
5. Remove 5 screws (metal) and swing the front edge out to release the connectors from the
rear panel, Figure 2.
Figure 2 Remove the IP Board
Replacement
After removal of the IP Board from the cage, move the Configuration Card, Configuration Card
holder and if installed, optional Memory and Hard Drive to the new board.
To Next Page
