5/2011
4-73
Phaser 4600/4620 Printer Service Manual
REP 8.45
Repairs
Revision - Xerox Internal Use Only

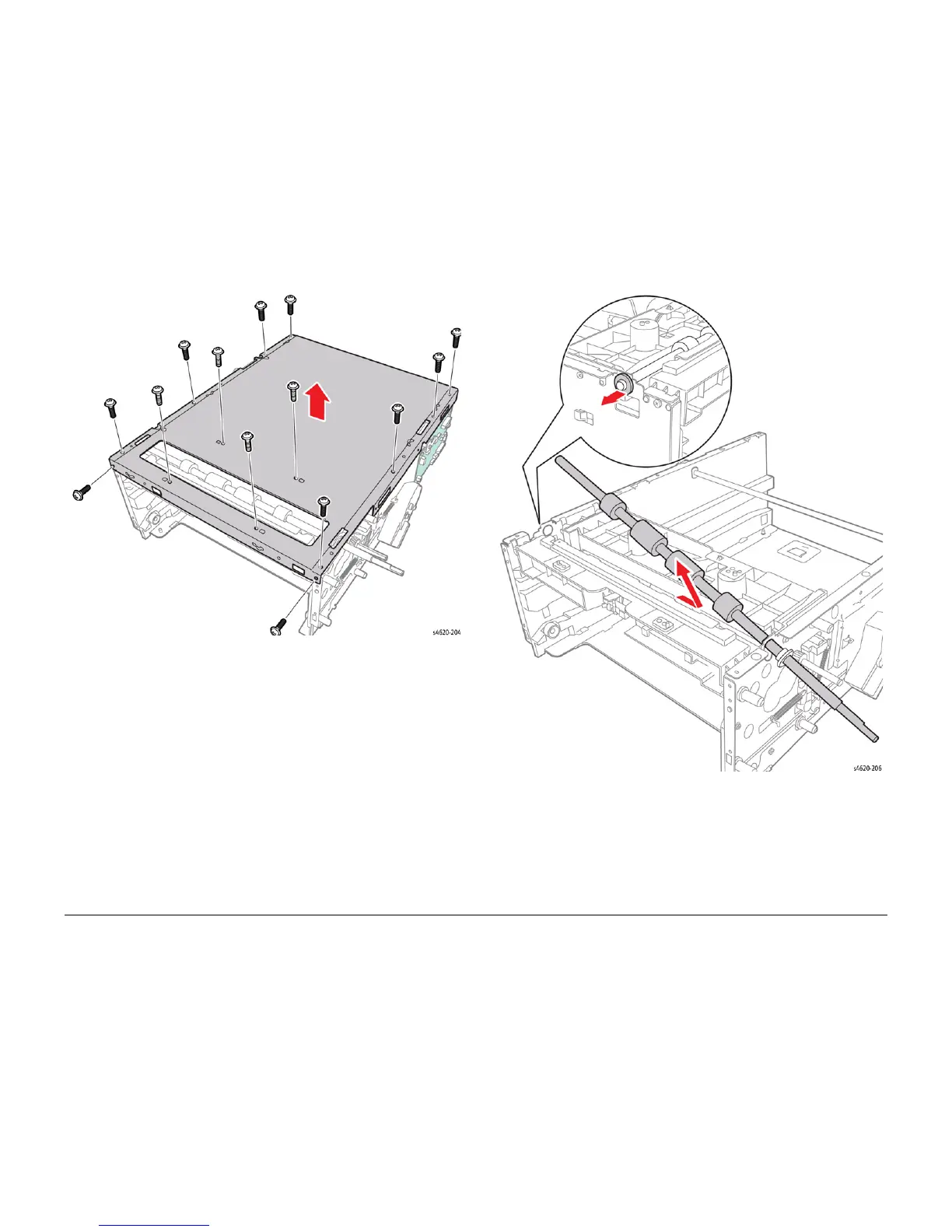

Figure 2 Remove the top cover
12. Remove 2 E-clips and 2 bearings, then move the shaft to release it from the chassis, Fig-
ure 3.
Figure 3 Remove the Take Away Roller
