Phaser 4600/4620 Printer Service Manual
REP 10.14
Revision - Xerox Internal Use Only
Repairs

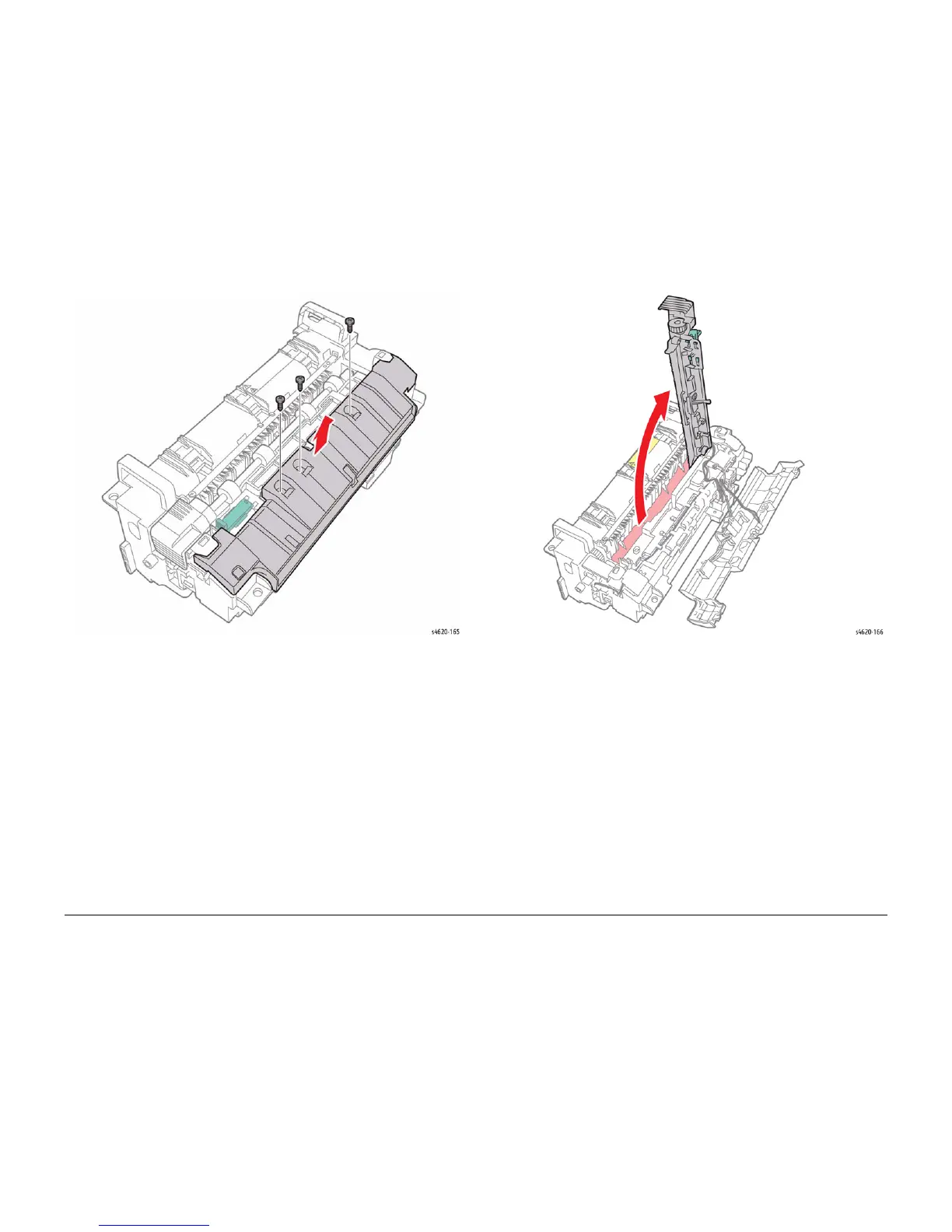

Figure 2 Remove the duplex cover
5. Open the lower exit guide, Figure 3.
Figure 3 Open the lower exit guide
6. Remove 2 screws (silver, metal) that secure the right cover, Figure 4.
