Phaser 4600/4620 Printer Service Manual
REP 12.5
Repairs
Revision - Xerox Internal Use Only

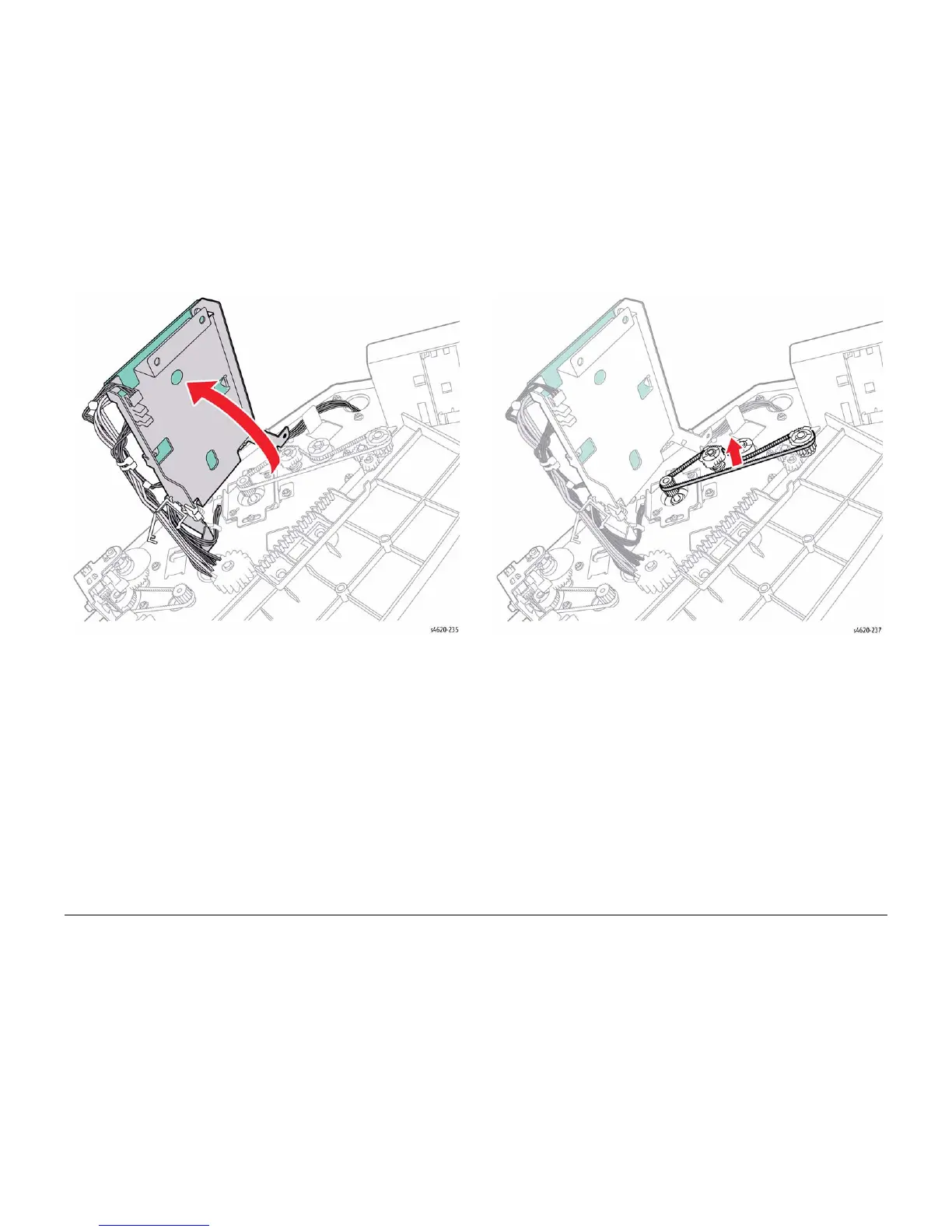

Figure 2 Position the Control Board bracket
5. Remove the Transport Drive Belt from the motor, Figure 3.
Figure 3 Remove the drive belt
6. Mark the position of the bracket in relation to the frame.
7. Remove 2 screws (metal) that secure the motor bracket to the frame.
8. Disconnect P/J108 from the motor and remove the motor, Figure 4.
