Xerox Phaser 4620 User Manual

5/2011
8-9
Phaser 4600/4620 Printer Service Manual
Xerographics
Principles of Operation
Revision - Xerox Internal Use Only

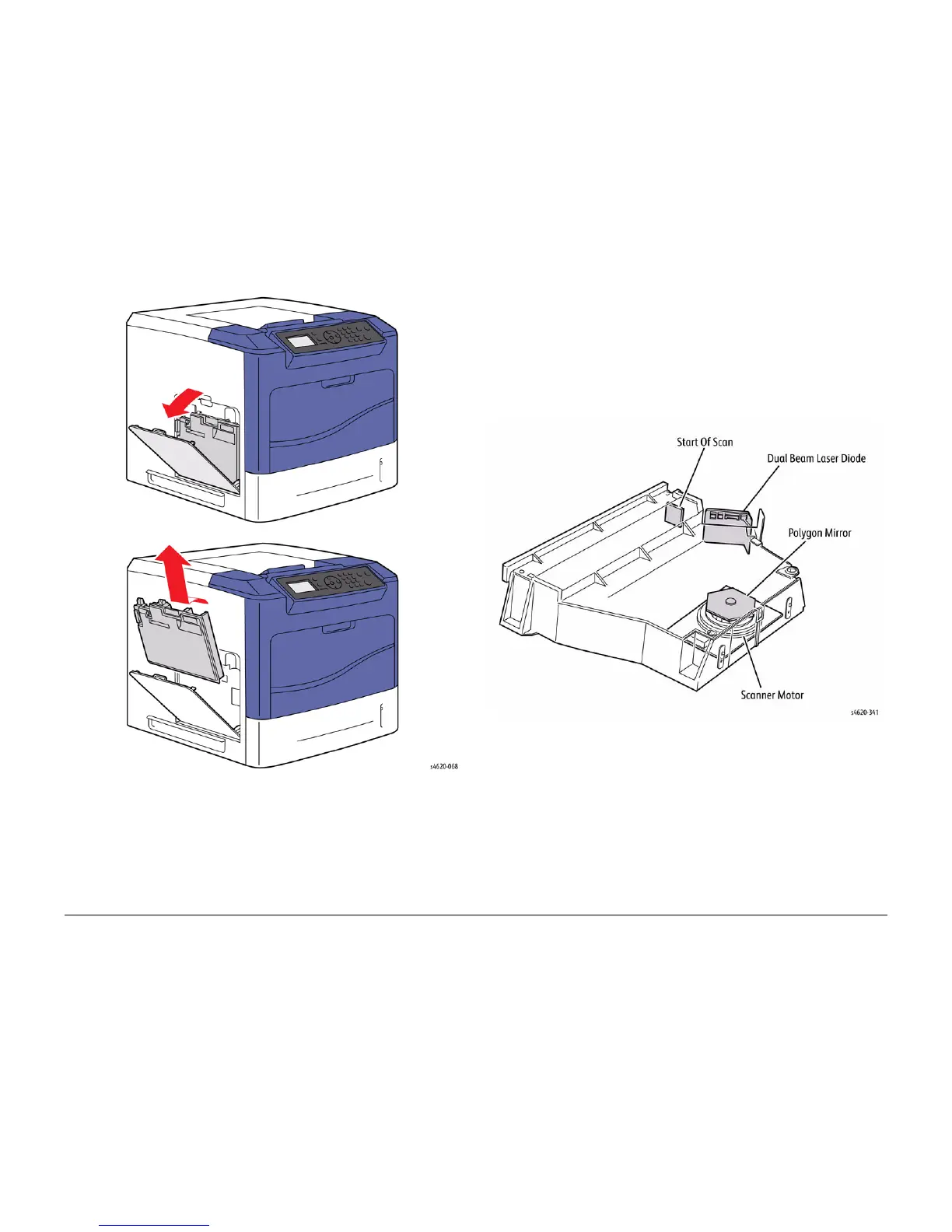

Figure 5 Waste Toner Cartridge
Laser Unit
The Laser Unit interprets signals from the IP Board and scans the surface of the drum with a
laser to create a latent image. The dual-beam laser scans from one end of the drum surface to
the other while being turned off and on forming a single line of a latent image. The resolution of
the dual-beam laser is either 600 dpi or 1200 dpi and is determined by the customer setting.
Both beams are always on. For 600 dpi, both beams receive the same data. For 1200 dpi, the
beams receive different data resulting in a smaller pixel size. The scanner motor turns On
when it receives a signal, and turns Off after printing ends. The motor remains Off in the
standby and power-saving states.
Figure 6 Laser Assembly
• The Laser Unit is field replaceable and contains the laser diodes, scanner motor/mirror,
and several lenses and mirrors.
• The Laser Unit “reflects” the laser beam so it strikes the Drum.

Xerox Phaser 4620 Specifications

General

Operating temperature (T-T)	50 - 90 °F
Operating relative humidity (H-H)	20 - 80 %
Color	No
I/O ports	10/100/1000 BaseT Ethernet, USB 2.0
Depth (min)	541 mm
Height (min)	420 mm
Minimum width	476 mm
Minimum weight	34.6 kg
Package length	698.49 mm
Print technology	Laser printing
Mac compatibility	Yes
Security features	Audit log, HTTPS, Image overwrite security, IP filtering, IPSec, Network authentication, SNMPv3, 802.1x
Storage drive type	Optional
Print memory (standard)	256 MB
Power consumption (active)	900 W
Minimum storage drive space	160 GB
Power consumption (standby)	93 W
Power consumption (PowerSave)	10 W
Storage media	HDD
Maximum internal memory	768 MB
Sound power level (standby)	39 dB
PCL fonts	93
Certification	Class 1 Laser Product, CE Marked, EMC Directive 89/336/EEC, EN 55022 Class B, EN 55024, FCC Part 15, Class B, Low Voltage Directive 73/23/EEC, RoHS Directive 2002/95/EC
Country of origin	China
Maximum duty cycle	275000 pages per month
Number of PostScript fonts	136
Number of print cartridges	1
Total input capacity	550 sheets
Total output capacity	500 sheets
Maximum input capacity	2000 sheets
Multi-Purpose tray input capacity	100 sheets
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	7.8 s
Print speed (black, normal quality, A4/US Letter)	65 ppm
Display	LCD
Package weight	40200 g
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Card stock, Labels, Pre-Printed, Recycled paper, Transparencies
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Export Control Classification Number (ECCN)	EAR99

Weight and Dimensions

Width	627.37 mm
Height	685.79 mm
Dimensions (WxDxH)	476 x 420 x 541 mm
