Phaser 4600/4620 Printer Service Manual
Principles of Operation
Revision - Xerox Internal Use Only
The End and Side Guides adjust to different media sizes by moving them to contact the
media edges and hold it in position. Size Switch actuators, located on the tray, are set by
the position of the end guide to indicate loaded media size.
• Sector Gear
The sector gear engages the lift gear on the Lift Motor shaft to raise the bottom plate.
• Bottom Plate
The Lift Motor through the lift gear and tray sector gear turn the lift shaft raising the bottom
plate which causes the media to contact the Nudger Roller. This activity is monitored by
the Lift Sensor. The bottom plate also actuates the media level indicator.
520-Sheet Feeder Feed Assembly
Optional trays are functionally equivalent in terms of the feeder mechanism that moves media
from the tray into the printer. The driving force from each feeder’s Feed Motor is transmitted via
a gear assembly to the Feed and Nudger Rollers, moving paper from the tray into the printer.

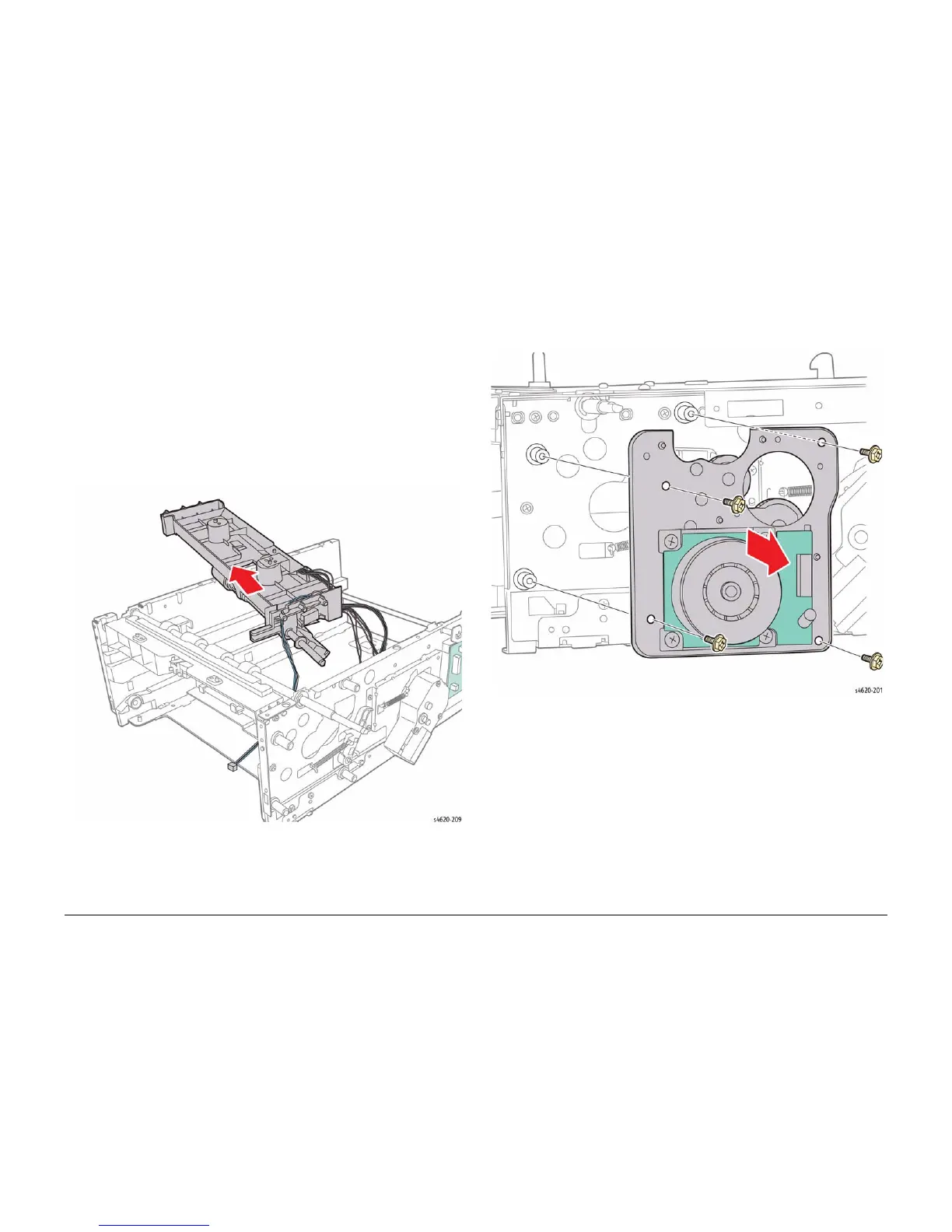

Figure 2 Feeder Assembly
520-Sheet Feeder Drive and Electrical
The 520-Sheet Feeder includes these drive and electrical components:
• Feed Drive Assembly
The Feed Drive Assembly drives the feed and take away rollers.
Figure 3 Feed Drive Assembly
•Lift Motor
The Lift Motor through the lift gear and tray sector gear turn the lift shaft raising the bottom
plate which causes the media to contact the Nudger Roller. This activity is monitored by
the Lift Sensor. The bottom plate also actuates the media level indicator.

Xerox Phaser 4620 Specifications

General

Operating temperature (T-T)	50 - 90 °F
Operating relative humidity (H-H)	20 - 80 %
Color	No
I/O ports	10/100/1000 BaseT Ethernet, USB 2.0
Depth (min)	541 mm
Height (min)	420 mm
Minimum width	476 mm
Minimum weight	34.6 kg
Package length	698.49 mm
Print technology	Laser printing
Mac compatibility	Yes
Security features	Audit log, HTTPS, Image overwrite security, IP filtering, IPSec, Network authentication, SNMPv3, 802.1x
Storage drive type	Optional
Print memory (standard)	256 MB
Power consumption (active)	900 W
Minimum storage drive space	160 GB
Power consumption (standby)	93 W
Power consumption (PowerSave)	10 W
Storage media	HDD
Maximum internal memory	768 MB
Sound power level (standby)	39 dB
PCL fonts	93
Certification	Class 1 Laser Product, CE Marked, EMC Directive 89/336/EEC, EN 55022 Class B, EN 55024, FCC Part 15, Class B, Low Voltage Directive 73/23/EEC, RoHS Directive 2002/95/EC
Country of origin	China
Maximum duty cycle	275000 pages per month
Number of PostScript fonts	136
Number of print cartridges	1
Total input capacity	550 sheets
Total output capacity	500 sheets
Maximum input capacity	2000 sheets
Multi-Purpose tray input capacity	100 sheets
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	7.8 s
Print speed (black, normal quality, A4/US Letter)	65 ppm
Display	LCD
Package weight	40200 g
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Card stock, Labels, Pre-Printed, Recycled paper, Transparencies
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Export Control Classification Number (ECCN)	EAR99

Weight and Dimensions

Width	627.37 mm
Height	685.79 mm
Dimensions (WxDxH)	476 x 420 x 541 mm
