Xerox WorkCentre 5945 Service Manual

February 2016
5-10
Xerox® WorkCentre® 5945 Family
PL 5.18
Parts Lists

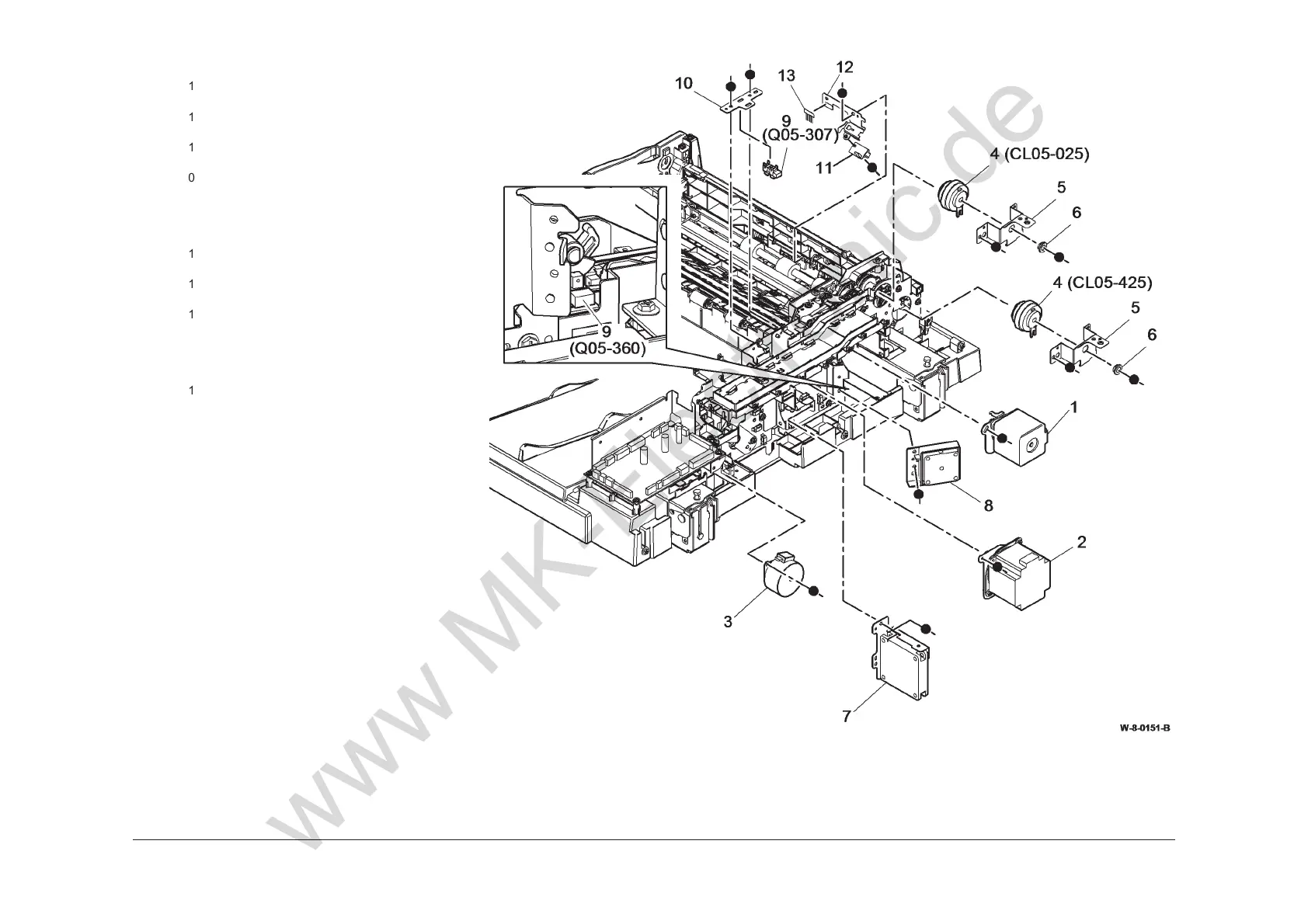

PL 5.18 SPDH Drive Assembly
Item Part Description
1
127K69270 Read motor (MOT05-030) (REP
5.13)
2 127K69260 Feed motor (MOT05-020) (REP
5.12)
3 127K69250 Tray elevator motor (MOT05-390)
(REP 5.24)
4 005E35810 Feed clutch (CL05-025) (REP
5.14)/Takeaway clutch (CL05-425)
(REP 5.15)
5 – Bracket (Not Spared)
6 – Bearing (Not Spared)
7 127E17510 Motor cooling fan (MOT05-380)
(REP 5.20)
8 127E17520 LED cooling fan (MOT05-370)
(REP 5.21)
9 130E19040 Lift home position sensor (Q05-
307) (REP 5.4)/Calibration home
position sensor (Q05-360) (REP
5.11)
10 – Sensor bracket (Not Spared)
11 130E19090 Reg sensor (Q05-340) (REP 5.10)
12 – Mounting bracket (Not Spared)
13 – Static eliminator (Not Spared)
