Xerox WorkCentre 5945 Service Manual

February 2016
5-87
Xerox® WorkCentre® 5945 Family
PL 80.17
Parts Lists

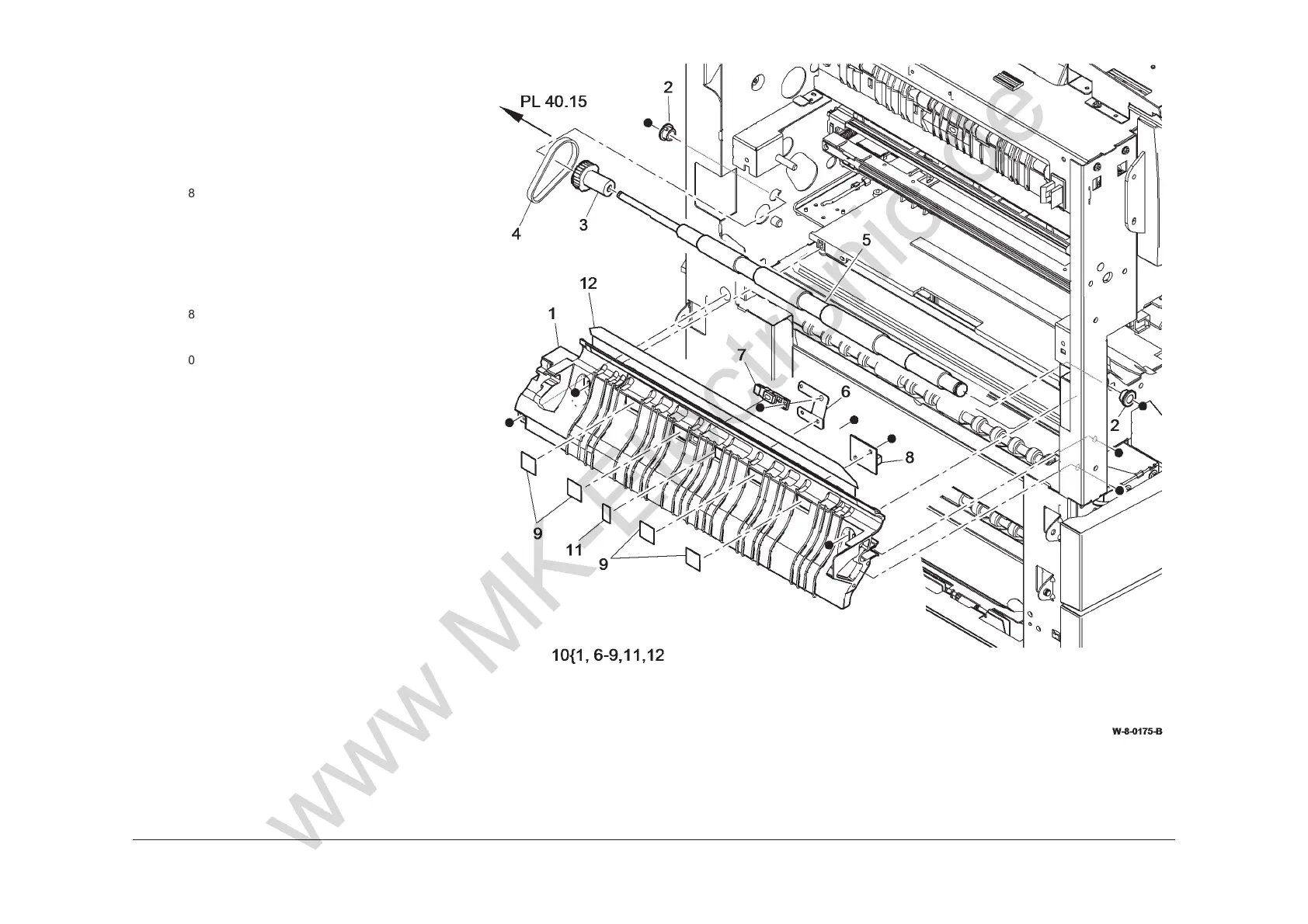

PL 80.17 Registration Transport
Item Part Description
1
– Registration transport housing (P/O
PL 80.17 Item 10) (REP 80.4)
2 – Bearing (Not Spared)
3 – Registration drive pulley (Not
Spared) (ADJ 40.1)
4 – Registration roll drive belt (Not
Spared)
5 806E53400 Registration roll (REP 80.4)
6 – Registration sensor bracket (P/O
PL 80.17 Item 10)
7 – Registration sensor (Q82-150) (P/
O PL 80.17 Item 10) (REP 80.4)
8 – Environmental sensors PWB (P/O
PL 80.17 Item 10) (REP 90.4)
9 – Mylar (P/O PL 80.17 Item 10)
10 859K05394 Registration transport assembly
(REP 80.4)
11 – Mylar (P/O PL 80.17 Item 10)
12 038E52180 Pressure blade (See NOTE)
NOTE: Also supplied as part of PL 80.17 Item 10.
