Xerox WorkCentre 5945 Service Manual

February 2016
5-50
Xerox® WorkCentre® 5945 Family
PL 12.385
Parts Lists

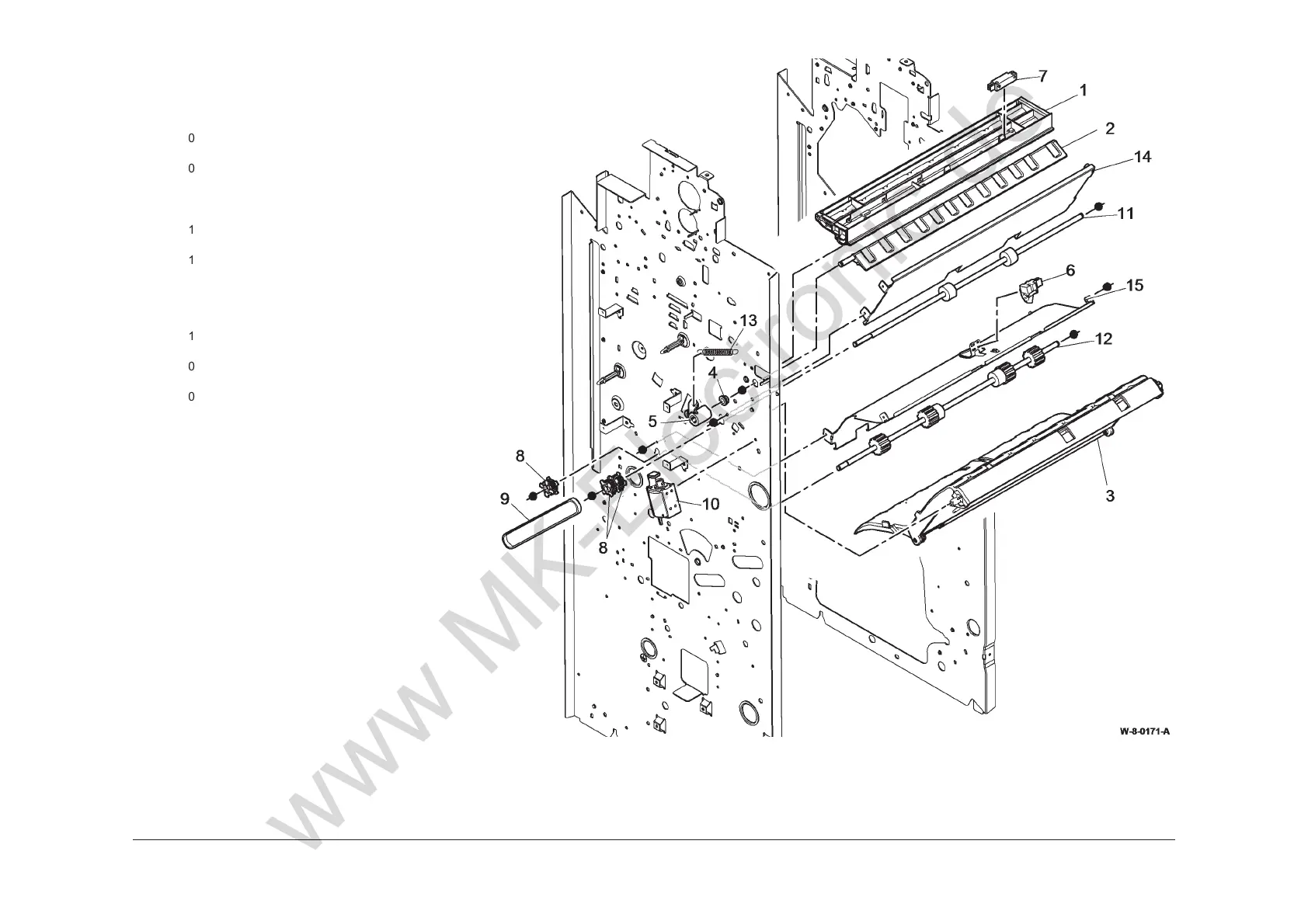

PL 12.385 LVF BM Compiler Entrance
G
uides
Item Part Description
1
– Upper entrance guide (Not Spared)
(REP 12.31-150)
2 050E29410 Booklet diverter gate (REP 12.33-
150)
3 032K10350 BM entrance guide assembly (REP
12.32-150)
4 – Bush (Not Spared)
5 – Lever (Not Spared)
6 130E21610 BM Entry sensor (Q12-089) (REP
12.32-150)
7 130E10380 Entry sensor (Q12-077) (REP
12.31-150)
8 – Pulley (Not Spared)
9 – Compiler entrance drive belt 2 (Not
Spared) (REP 12.34-150)
10 121K45010 Booklet diverter gate solenoid
(SOL12-258)
11 059K84790 1st feed roll assembly (REP 12.34-
150)
12 059K84800 2nd feed roll assembly (REP 12.35-
150)
13 – Spring (Not Spared)
14 – Upper guide (Not Spared)
15 – Lower guide (Not Spared) (REP
12.32-150)
