Xerox WorkCentre 5945

February 2016
5-16
Xerox® WorkCentre® 5945 Family
PL 10.10
Parts Lists

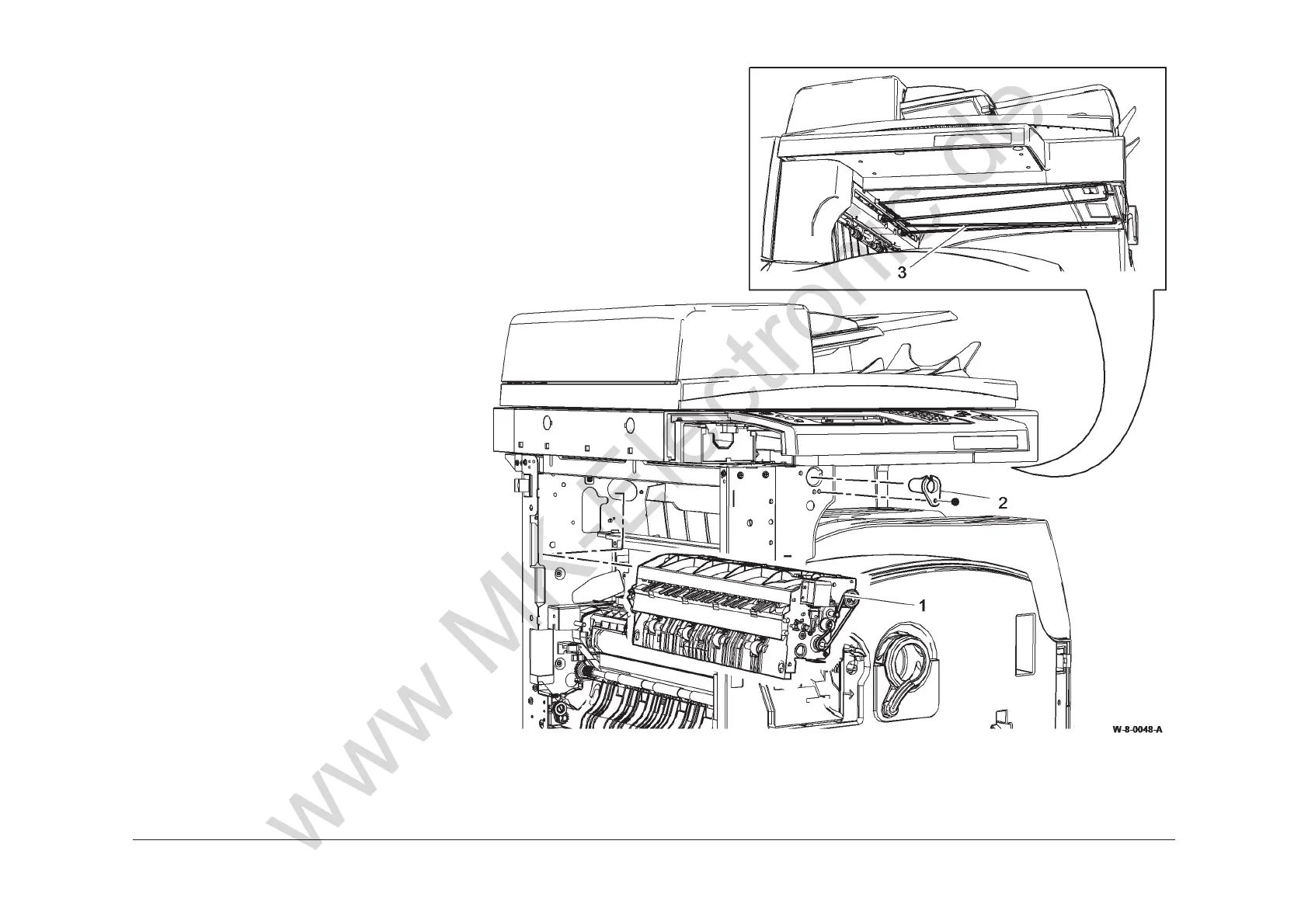

PL 10.10 Inverter Assembly (1 of 4)
Item Part Description
1
– Inverter assembly (Centre output
tray) (REF: PL 10.11, PL 10.13)
(REP 10.1)
– – Inverter assembly (Horizontal
transport) (REF: PL 10.12, PL
10.13) (REP 10.1)
2 – Inverter locator (Not Spared) (REP
10.1)
3 – Diverter output guide (Centre
output tray) (Not Spared)
