Xerox® WorkCentre® 5945 Family
PL 12.405
Parts Lists

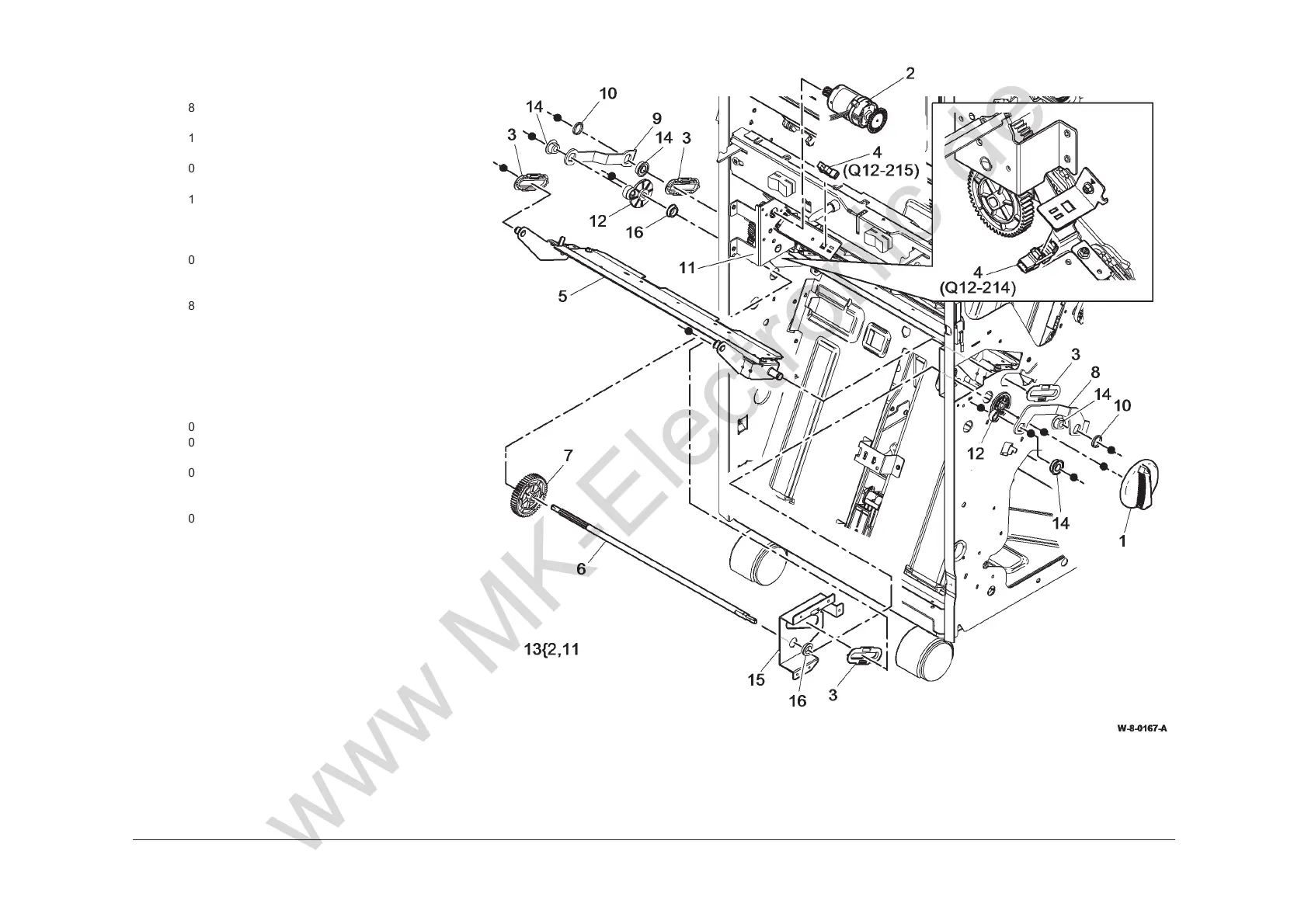

PL 12.405 LVF BM Crease Blade
A
ssembly
Item Part Description
1
803E20900 Crease blade handle (REP 12.23-
150)
2 127E17650 BM Crease blade motor (MOT12-
252) (REP 12.21-150)
3 011E30810 Crease blade guide (REP 12.22-
150)
4 130E10360 BM Crease blade home sensor
(Q12-214)/BM Crease blade motor
encoder sensor (Q12-215) (REP
12.21-150)
5 037K01490 Crease blade assembly (REP
12.22-150)
6 – Crease blade shaft (Not Spared)
7 807E46760 Crease blade drive gear (REP
12.23-150)
8 – Front blade arm (Not Spared)
9 – Rear blade arm (Not Spared)
10 – Spacer (Not Spared)
11 – Crease blade gearbox assembly
(P/O PL 12.405 Item 13) (REP
12.21-150)
12 008E08860 Blade crank (REP 12.23-150)
13 007K20511 Crease blade motor assembly
(REP 12.21-150)
14 016E21260 Crease blade bearing (REP 12.23-
150)
15 – Bracket (Not Spared)
16 013E43930 Crease blade shaft bearing
