Xerox WorkCentre 5945

February 2016
5-94
Xerox® WorkCentre® 5945 Family
PL 90.10
Parts Lists

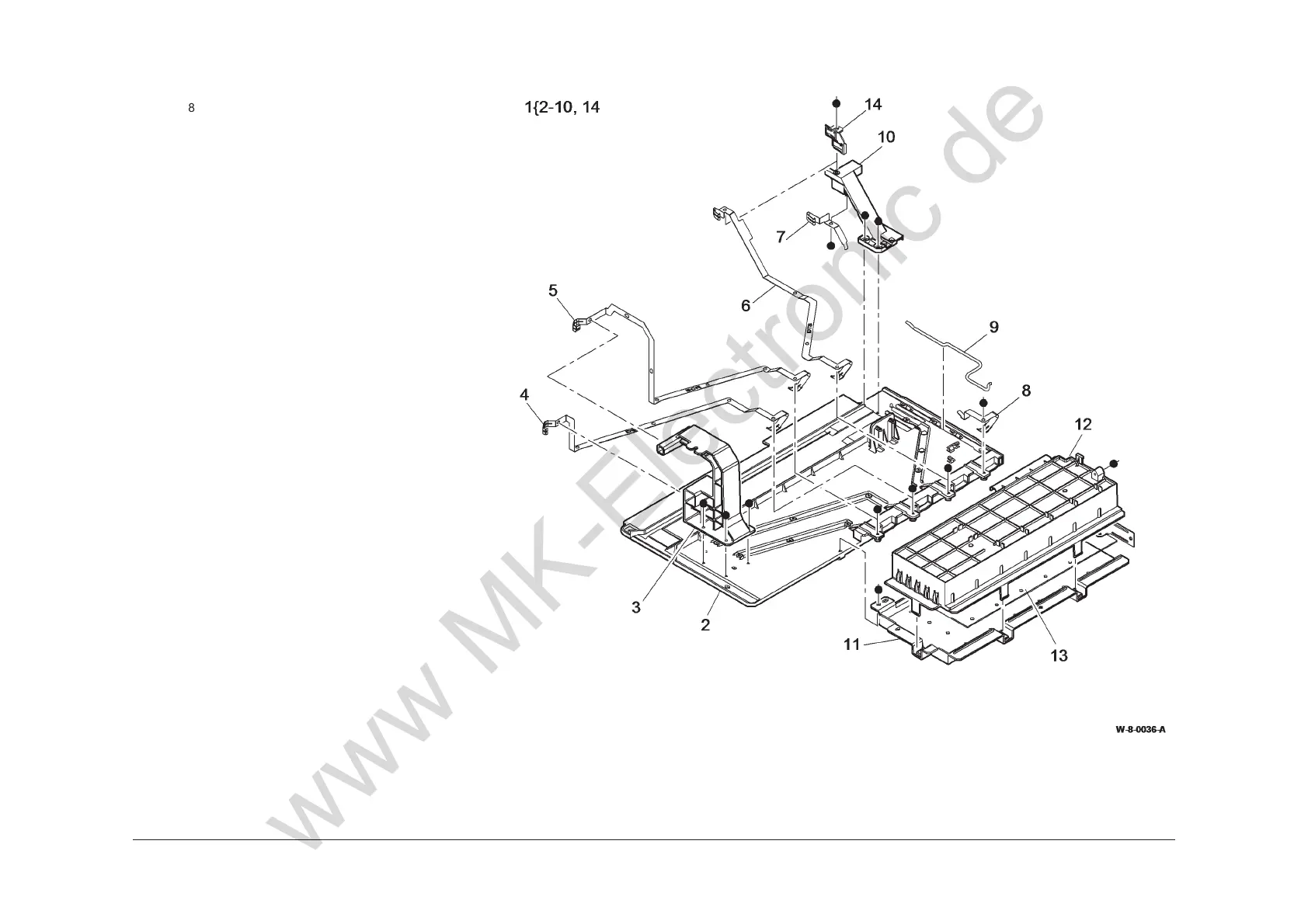

PL 90.10 High Voltage Power
D
istribution Assembly
Item Part Description
1
859K01027 HVPS tray assembly (REP 90.3)
2 – Tray (P/O PL 90.10 Item 1)
3 – Front track support (P/O PL 90.10
Item 1)
4 – Track (DEV) (P/O PL 90.10 Item 1)
5 – Track (BCR) (P/O PL 90.10 Item 1)
6 – Track (DTS) (P/O PL 90.10 Item 1)
7 – Track (BTR 1) (P/O PL 90.10 Item
1)
8 – Track (BTR 2) (P/O PL 90.10 Item
1)
9 – Track cable (P/O PL 90.10 Item 1)
10 – Rear track support (P/O PL 90.10
Item 1)
11 – HVPS bottom cover (Not Spared)
12 – HVPS top cover (Not Spared)
13 – HVPS (REF: PL 1.10 Item 3)
14 – Track cover (P/O PL 90.10 Item 1)
