Xerox WorkCentre 5945 Service Manual

February 2016
5-53
Xerox® WorkCentre® 5945 Family
PL 12.400
Parts Lists

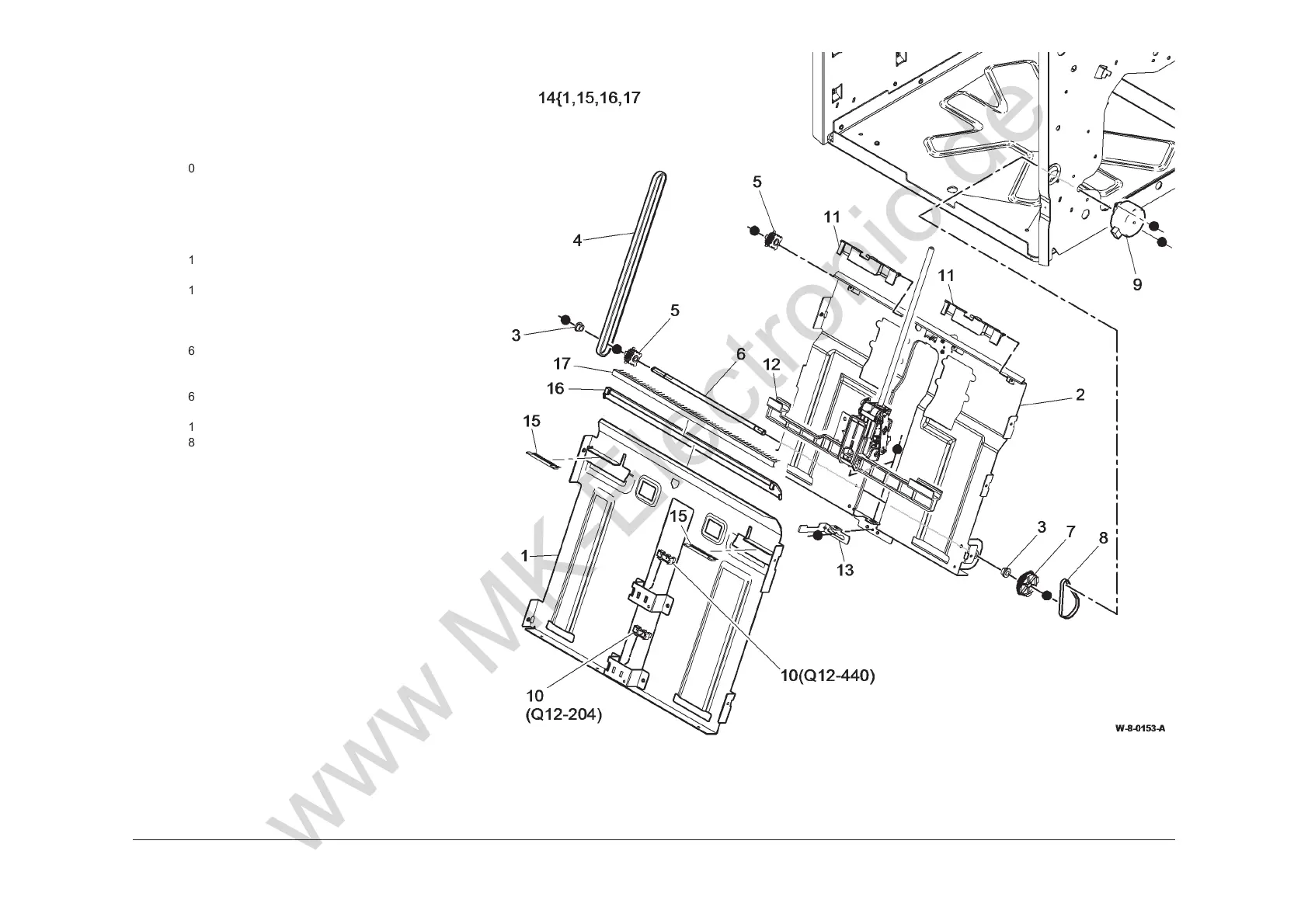

PL 12.400 LVF BM Back Stop
A
ssembly
Item Part Description
1
– Left guide (P/O PL 12.400 Item 14)
(REP 12.19-150)
2 – Right guide (Not Spared) (REP
12.19-150)
3 016E21260 Bearing
4 – Belt (Not Spared)
5 – Pulley (Not Spared)
6 – Shaft (Not Spared)
7 – Drive pulley (Not Spared)
8 – Drive Belt (Not Spared)
9 127K74620 BM Back stop motor (MOT12-255)
(REP 12.18-150)
10 130E10360 BM guide home sensor (Q12-204)/
BM back stop mid home sensor
(Q12-440) (REP 12.20-150)
11 – Stapler stop guide (Not Spared)
12 674K08890 Back stop assembly (REP 12.19-
150)
13 – Bracket (Not Spared)
14 674K09350 Back stop left guide assembly (REP
12.19-150)
15 115E13910 Static eliminator (REP 12.19-150)
16 822E33440 Sub plate (See NOTE)
17 – Static eliminator (P/O PL 12.400
Item 14)
NOTE: Also part of PL 12.400 Item 14.
