Xerox WorkCentre 5945

February 2016
5-42
Xerox® WorkCentre® 5945 Family
PL 12.345
Parts Lists

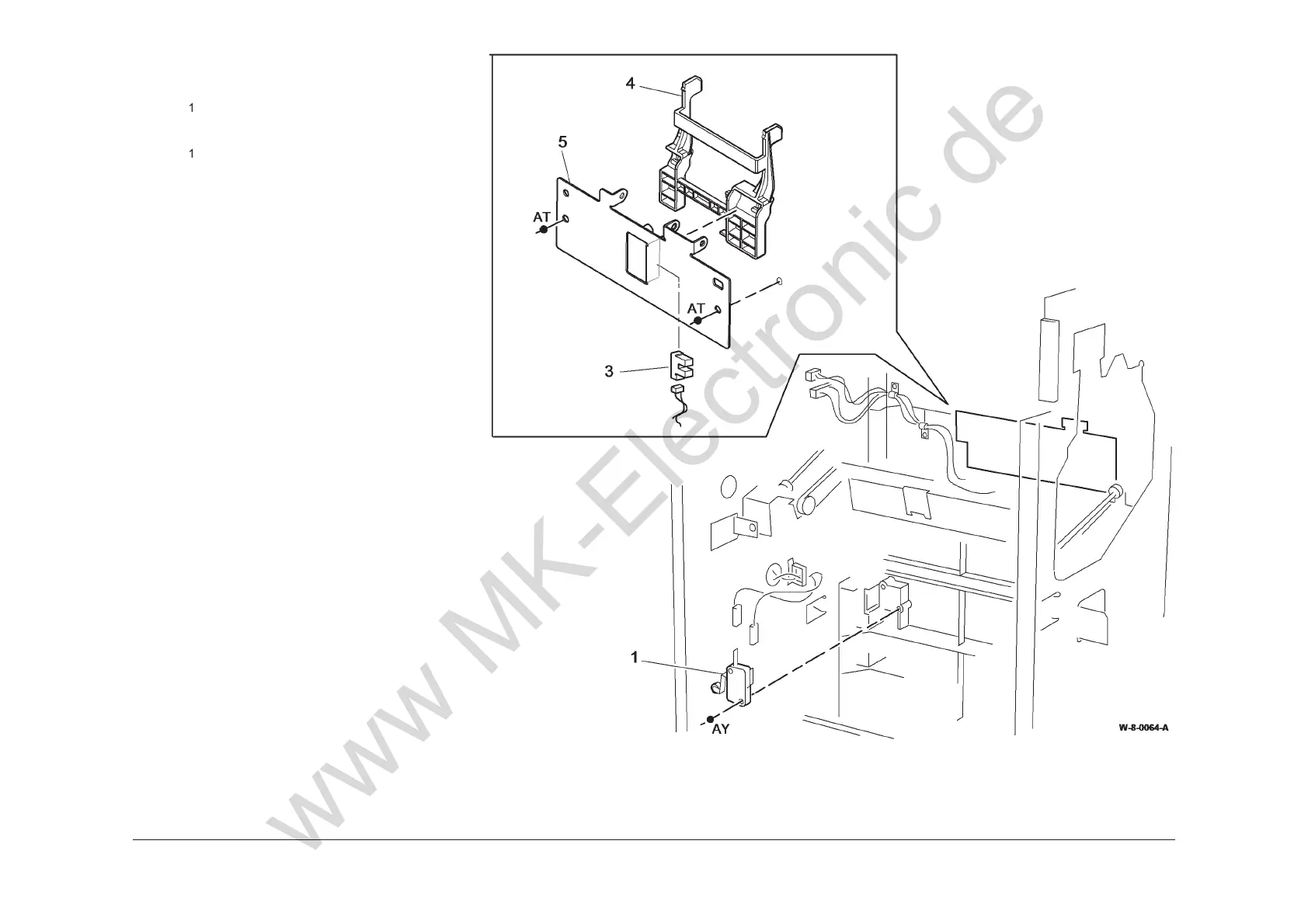

PL 12.345 LVF BM Bin 1 Control
C
omponents (2 of 2)
Item Part Description
1
110K13990 Bin 1 lower limit switch (S12-191)
(REP 12.45-150)
2 – Not used
3 130E10360 Bin 1 upper level sensor (Q12-188)
(REP 12.11-150)
4 – Actuator (Not Spared)
5 – Sensor support assembly (Not
Spared)
