Xerox WorkCentre 5945 Service Manual

February 2016
5-6
Xerox® WorkCentre® 5945 Family
PL 2.10
Parts Lists

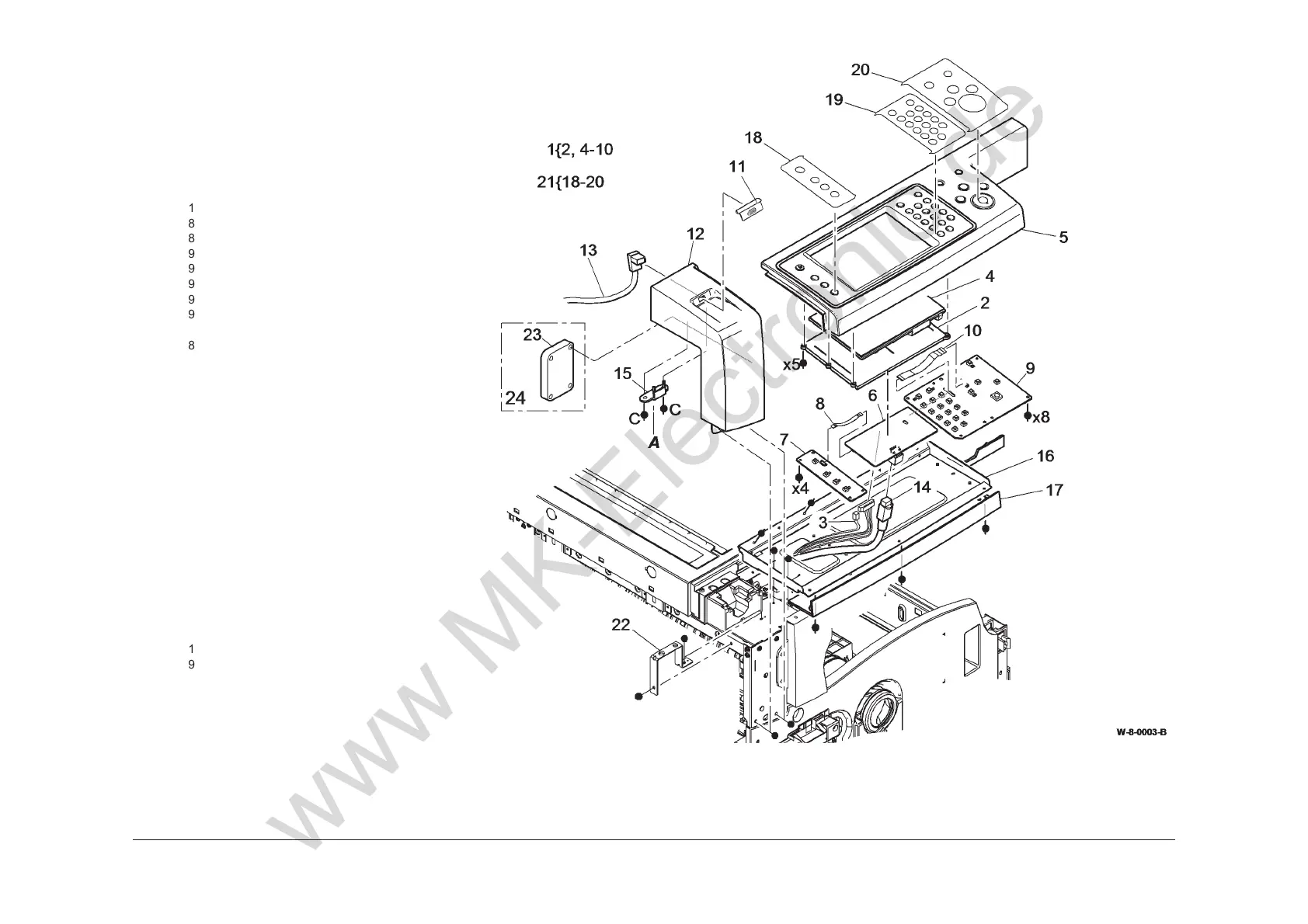

PL 2.10 User Interface
Item Part Description
1
– UI assembly (USSG/XCL) (REP
2.1)
– – UI assembly (XE) (REP 2.1)
2 – UI screen clamp (P/O PL 2.10 Item
1)
3 – SBC PWB to UI Control PWB
power/comms harness (Not
Spared)
4 123K08651 UI touch screen (REP 2.2)
5 848K94781 UI housing (USSG/XCL)
– 848K94771 UI housing (XE)
6 960K79683 UI Control PWB (REP 2.3)
7 960K92940 UI Status PWB
8 952K26981 Control to status PWB ribbon cable
9 960K79691 UI Keyboard PWB
10 952K26990 Control to keyboard PWB ribbon
cable
11 822E21181 USB socket cover
12 – Left frame cover (REF: PL 28.10
Item 6)
13 – SBC PWB to UI USB port harness
(Not Spared)
14 – SBC PWB to UI Control PWB data
cable (Not Spared)
15 – Clamp (Not Spared)
16 – UI support (Not Spared)
17 – Lower cover (Not Spared)
18 – Left overlay label (P/O PL 2.10 Item
21)
19 – Middle overlay label (P/O PL 2.10
Item 21)
20 – Right overlay label (P/O PL 2.10
Item 21)
21 – Overlay label kit (REF: PL 31.12
Item 7)
22 – Left frame cover support (Not
Spared)
23 144K00660 RFID Card reader (NOTE)
24 952K51010 USB MFF harness (Not shown)
(NOTE)
NOTE: Also part of kit , PL 31.14 Item 16.
www MK-Electronic de

Xerox WorkCentre 5945 Specifications

General

Print Technology	Laser
Print Speed	Up to 45 ppm
Maximum Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Maximum Scan Resolution	600 x 600 dpi
Functions	Print, Copy, Scan, Fax
Copy Speed	Up to 45 cpm
Copy Resolution	600 x 600 dpi
Processor	1.2 GHz Dual-core
Memory	2 GB
Fax	Optional
Fax Transmission Speed	33.6 Kbps
Maximum Paper Size	A3
Connectivity	USB, Ethernet
Paper Size	A4, A5
PDL	PCL6, PDF, XPS, TIFF, JPEG
Mobile Printing	Apple AirPrint
Dimensions	640 x 700 x 1140 mm
Scanner Type	ADF, Flatbed
Weight	Approx. 172.0 lb / 78 kg
