Xerox WorkCentre 5945 Service Manual

February 2016
5-86
Xerox® WorkCentre® 5945 Family
PL 80.15
Parts Lists

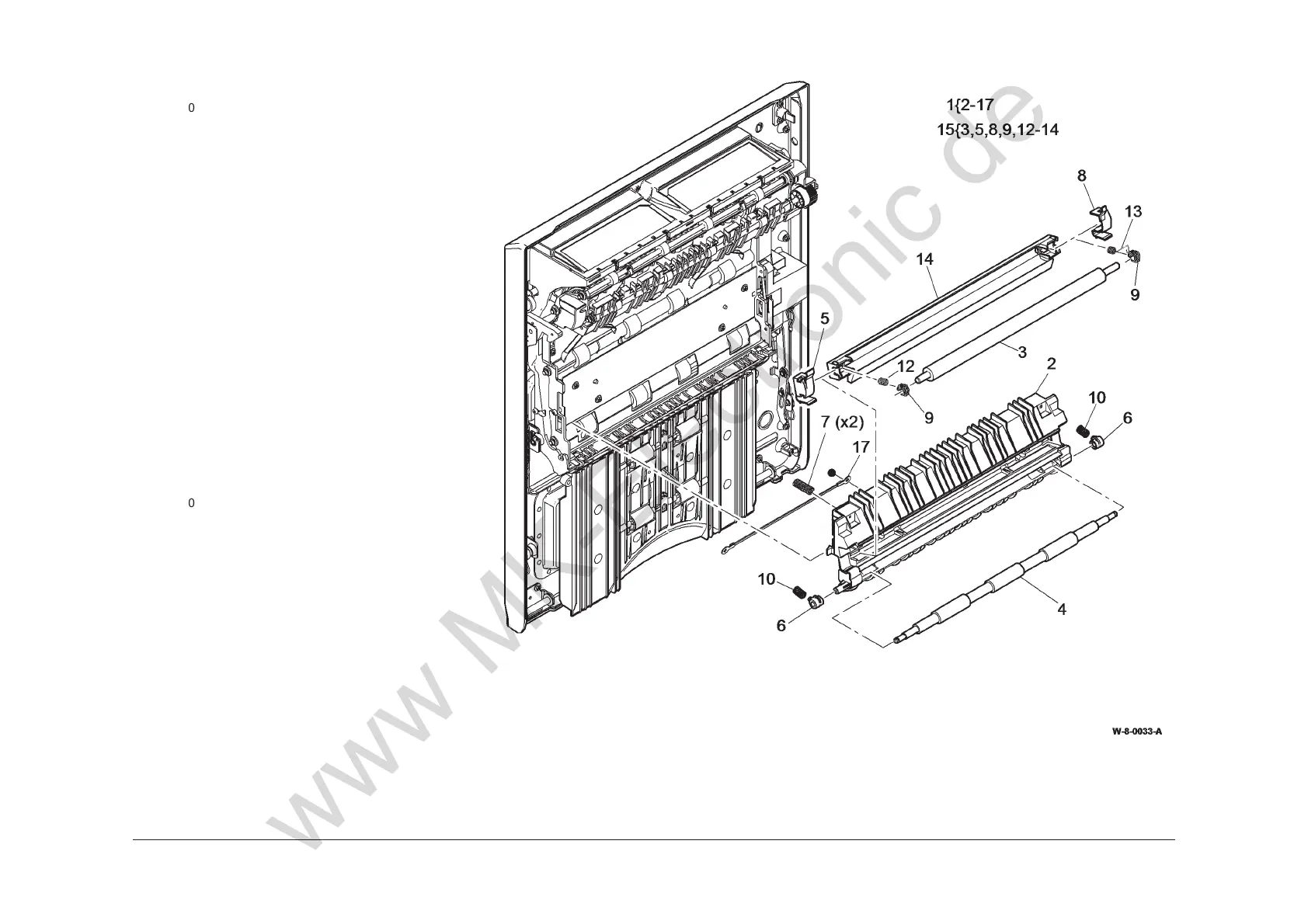

PL 80.15 Registration Transfer
A
ssembly
Item Part Description
1
038K25740 Registration transfer assembly
(REP 80.3)
2 – Registration transfer housing (P/O
PL 80.15 Item 1)
3 – Bias transfer roll (P/O PL 80.15
Item 15)
4 – Registration nip roll (P/O PL 80.15
Item 1) (REP 80.3)
5 – Front retaining clip (P/O PL 80.15
Item 15)
6 – Registration nip roll bearing (P/O
PL 80.15 Item 1)
7 – Spring (P/O PL 80.15 Item 1)
8 – Rear retaining clamp (P/O PL 80.15
Item 15)
9 – Bias transfer roll bearing (P/O PL
80.15 Item 15)
10 – Support spring (P/O PL 80.15 Item
1)
11 – Not used
12 – Front housing spring (P/O PL 80.15
Item 15)
13 – Rear housing spring (P/O PL 80.15
Item 15)
14 – Bias transfer roll housing (P/O PL
80.15 Item 15)
15 008R13178 Bias transfer roll housing assembly
16 – Not used
17 – Ground strap (P/O PL 80.15 Item 1)
