Xerox WorkCentre 5945

February 2016
5-74
Xerox® WorkCentre® 5945 Family
PL 60.20
Parts Lists

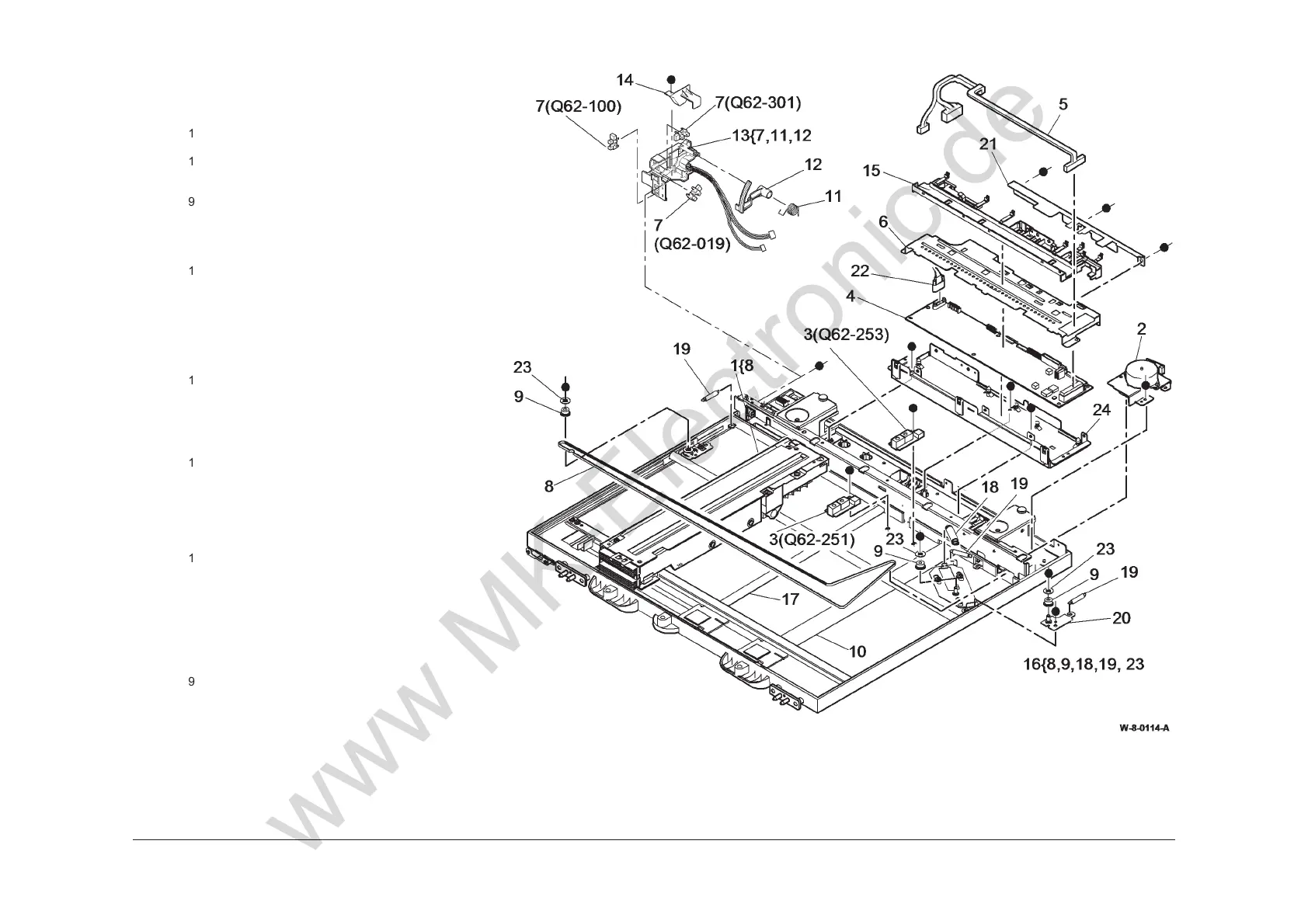

PL 60.20 Scanner Electrical
C
omponents
Item Part Description
1
– Scan carriage assembly (REF: PL
60.25 Item 1) (REP 60.5)
2 127K69280 Scan carriage motor assembly
(MOT62-031) (REP 60.10)
3 130E19050 Document size sensor 1 (Q62-251),
Document size sensor 2 (Q62-253)
(REP 60.13)
4 960K85691 Scanner PWB (REP 60.4)
5 – SBC PWB/Scanner PWB comms/
power harness (Not Spared)
6 – Scanner PWB cover (Not Spared)
(REP 60.4)
7 130E19040 Carriage home sensor (Q62-100)/
DH angle sensor (Q62-301) (REP
60.9)/DH platen down sensor
(Q62-019)
8 – Scan carriage drive belt (P/O PL
60.20 Item 16) (REP 60.11)
9 – Scan carriage idler pulley (P/O PL
60.20 Item 16) (REP 60.12)
10 117E43811 Scan carriage power ribbon cable
(REP 60.7)
11 – Actuator spring (P/O PL 60.20 Item
13)
12 – SPDH angle sensor actuator (P/O
PL 60.20 Item 13) (REP 60.9)
13 120K03740 Actuator support (REP 60.9)
14 – Cable shield (Not Spared) (REP
60.9)
15 – Harness guide (Not Spared) (REP
60.4)
16 – Scanner drive kit (REF: PL 31.11
Item 6)
17 117E43821 Scan carriage data ribbon cable
(REP 60.8)
18 – Tension spring (P/O PL 60.20 Item
16)
19 – Ground spring (P/O PL 60.20 Item
16)
20 – Mounting plate (Not Spared)
21 – Faraday shield (Not Spared) (REP
60.1)
22 952K39461 SBC PWB/Scanner PWB data
cable
23 – Pulley flange (P/O PL 60.20 Item
16)
24 – Scanner PWB support (Not Spared)
NOTE: Refer to ADJ 60.1 for the scanner cleaning
procedure.
