Xerox WorkCentre 5945 Service Manual

February 2016
5-55
Xerox® WorkCentre® 5945 Family
PL 12.410
Parts Lists

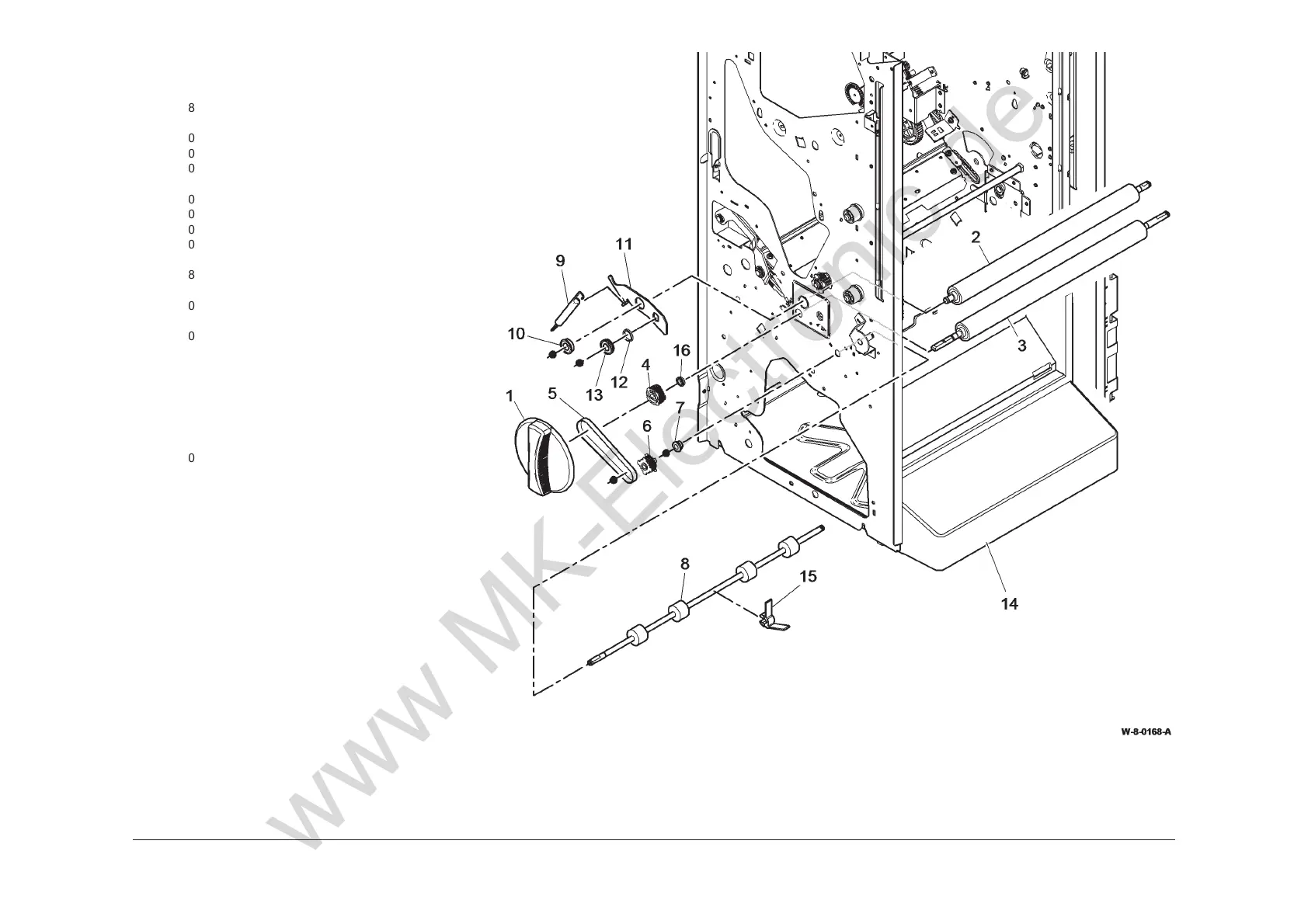

PL 12.410 LVF BM Crease Roll
A
ssembly (1 of 3)
Item Part Description
1
803E20910 Crease roll handle (REP 12.24-
150)
2 059E11860 Upper crease roll (REP 12.24-150)
3 059E11870 Lower crease roll (REP 12.24-150)
4 020E55510 Crease roll handle pulley (REP
12.24-150)
5 023E32470 Exit roll belt (REP 12.27-150)
6 020E55520 Exit roll pulley (REP 12.27-150)
7 016E21260 Bush (REP 12.27-150)
8 059K84780 BM exit roll assembly (REP 12.27-
150)
9 899E07760 Crease roll spring (x2) (REP 12.24-
150)
10 013E43940 Crease roll bearing (REP 12.24-
150)
11 031E16710 Front crease roll lever (REP 12.24-
150)
12 – Spacer (Not Spared)
13 – Bearing (Not Spared)
14 – Bin 2 support (Not Spared) (REP
12.44-150)
15 – Exit roll paddle (Not Spared) (REP
12.27-150)
16 013E43930 Lower crease roll bearing
