Xerox WorkCentre 5945 Service Manual

February 2016
5-3
Xerox® WorkCentre® 5945 Family
PL 1.10
Parts Lists

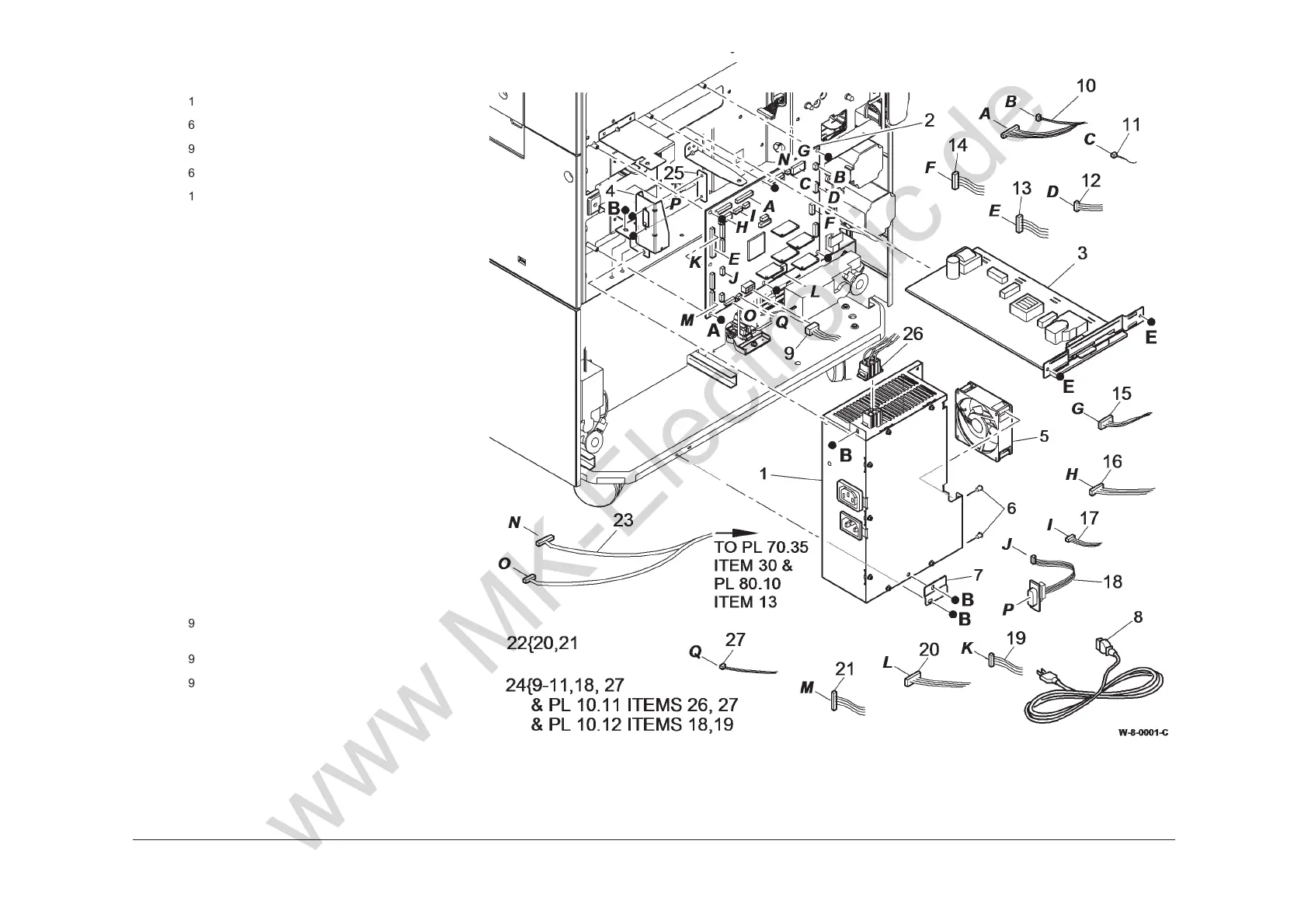

PL 1.10 Power and Control Assembly
Item Part Description
1
105K37664 LVPS module (W/O TAG 008)
(REP 1.1)
– 607K10800 LVPS module (W/TAG 008) (REP
1.1)
2 960K90572 IOT PWB (W/O TAG 007, TAG 009)
(REP 3.1)
– 607K10790 IOT PWB (W/TAG 007, TAG 009)
(REP 3.1)
3 105K37656 HVPS (REP 1.10)
4 – Top securing bracket (Not Spared)
5 – LVPS cooling fan (P/O PL 1.10 Item
1)
6 – Plastic rivet (P/O PL 1.10 Item 1)
7 – Securing plate (P/O PL 1.10 Item 1)
8 – Main power cord (REF: PL 1.15
Item 1)
9 – IOT PWB to LVPS module harness
(P/O PL 1.10 Item 24)
10 – IOT PWB to HVPS harness (P/O
PL 1.10 Item 24)
11 – IOT PWB to Toner cartridge motor
harness (P/O PL 1.10 Item 24)
12 – IOT PWB to Horizontal transport /
offset motor harness (Not Spared)
13 – IOT PWB to tray 1 & 2 feed
assembly harness (Not Spared)
14 – IOT PWB to TAR/bypass tray motor
harness (Not Spared)
15 – IOT PWB to Reg motor harness
(Not Spared)
16 – IOT PWB to fuser power harness
(Not Spared)
17 – IOT PWB to Print cartridge harness
(Not Spared)
18 – IOT PWB to Finisher comms
connector harness (Finisher only)
(P/O PL 1.10 Item 24) (See NOTE
1)
19 – IOT PWB to Horizontal transport
harness (Not Spared)
20 – IOT PWB to Tray 4 PWB harness
(P/O PL 1.10 Item 22)
21 – IOT PWB to HCF sensor harness
(P/O PL 1.10 Item 22)
22 952K37771 HCF harness set
23 – IOT PWB to Left door harness (P/O
PL 80.10 Item 14) (REP 80.33)
24 952K37767 IOT integration harness set (W/O
TAG 015)
– 952K57570 IOT integration harness set (W/
TAG 015)
25 – Blanking plate (Not Spared) (See
NOTE 2)
26 – LVPS to Fuser module AC power
harness (Not Spared)
27 – IOT PWB to print cartridge fan
harness (P/O PL 1.10 Item 24)
NOTE: 1. Only used when a Finisher is installed.
NOTE: 2. Only used when a Centre tray is installed.
www MK-Electronic de

Xerox WorkCentre 5945 Specifications

General

Print Technology	Laser
Print Speed	Up to 45 ppm
Maximum Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Maximum Scan Resolution	600 x 600 dpi
Functions	Print, Copy, Scan, Fax
Copy Speed	Up to 45 cpm
Copy Resolution	600 x 600 dpi
Processor	1.2 GHz Dual-core
Memory	2 GB
Fax	Optional
Fax Transmission Speed	33.6 Kbps
Maximum Paper Size	A3
Connectivity	USB, Ethernet
Paper Size	A4, A5
PDL	PCL6, PDF, XPS, TIFF, JPEG
Mobile Printing	Apple AirPrint
Dimensions	640 x 700 x 1140 mm
Scanner Type	ADF, Flatbed
Weight	Approx. 172.0 lb / 78 kg
