Xerox WorkCentre 5945 Service Manual

February 2016
5-31
Xerox® WorkCentre® 5945 Family
PL 12.50
Parts Lists

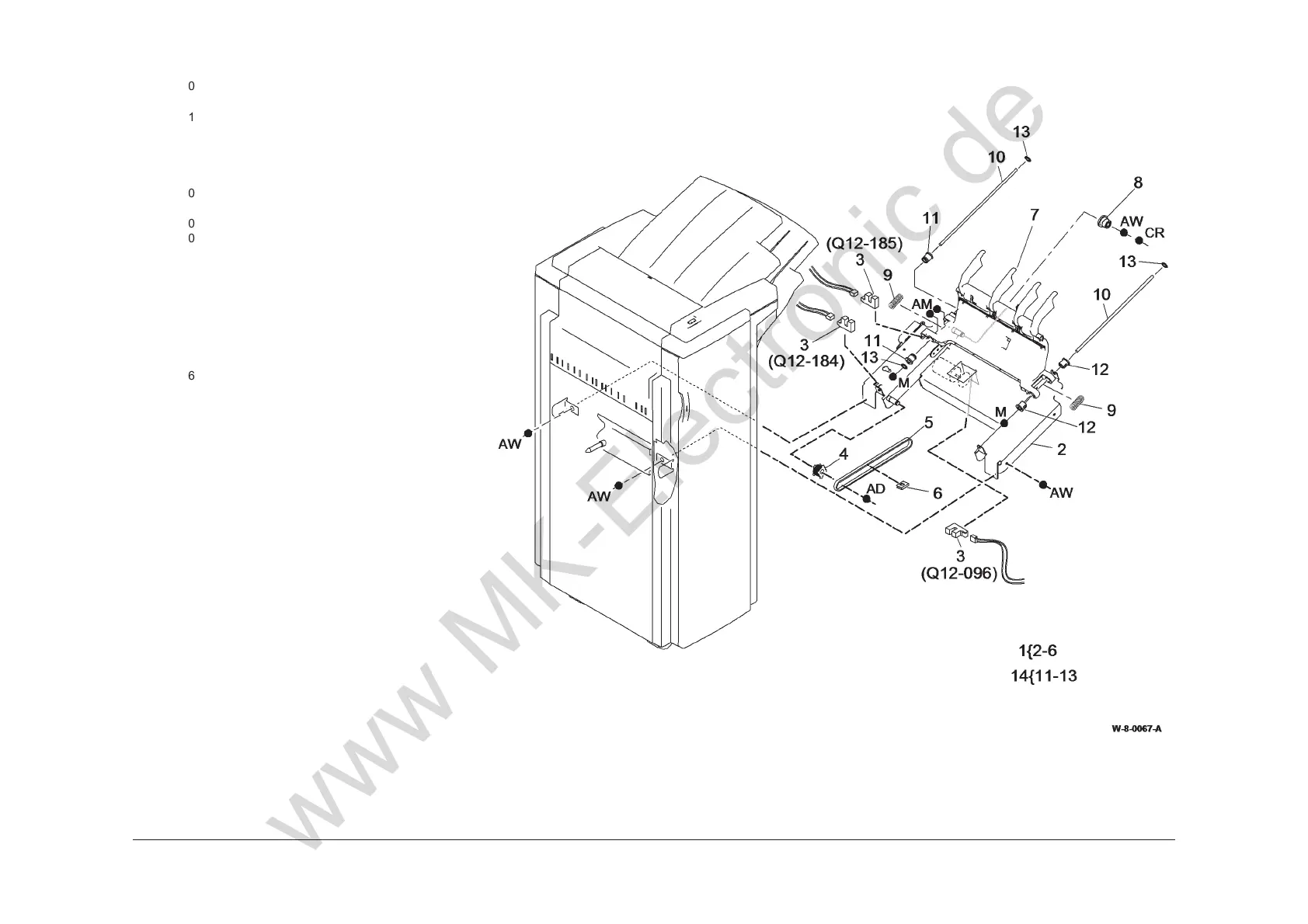

PL 12.50 2K LCSS Ejector Assembly
Item Part Description
1
054K43583 Ejector assembly (REP 12.10-110)
2 – Ejector base (P/O PL 12.50 Item 1)
3 130E10360 Ejector home sensor (Q12-184),
Ejector out sensor (Q12-185),
Ejector motor encoder sensor
(Q12-096) (REP 12.10-110)
4 – Pulley (P/O PL 12.50 Item 1)
5 023E24330 Ejector belt (REP 12.17-110)
6 – Clip (P/O PL 12.50 Item 1)
7 019K13390 Support finger set (Qty. 4)
8 020K21490 Pulley/drive gear
9 – Spring (P/O PL 12.50 Item 1)
10 – Shaft (P/O PL 12.50 Item 1)
11 – Slide ejector bearing (P/O PL 12.50
Item 14)
12 – Wide slide ejector bearing (P/O PL
12.50 Item 14)
13 – Cushion washer (P/O PL 12.50
Item 14)
14 604K67690 LCSS bearing assembly kit
