Xerox WorkCentre 5945

February 2016
5-72
Xerox® WorkCentre® 5945 Family
PL 40.15
Parts Lists

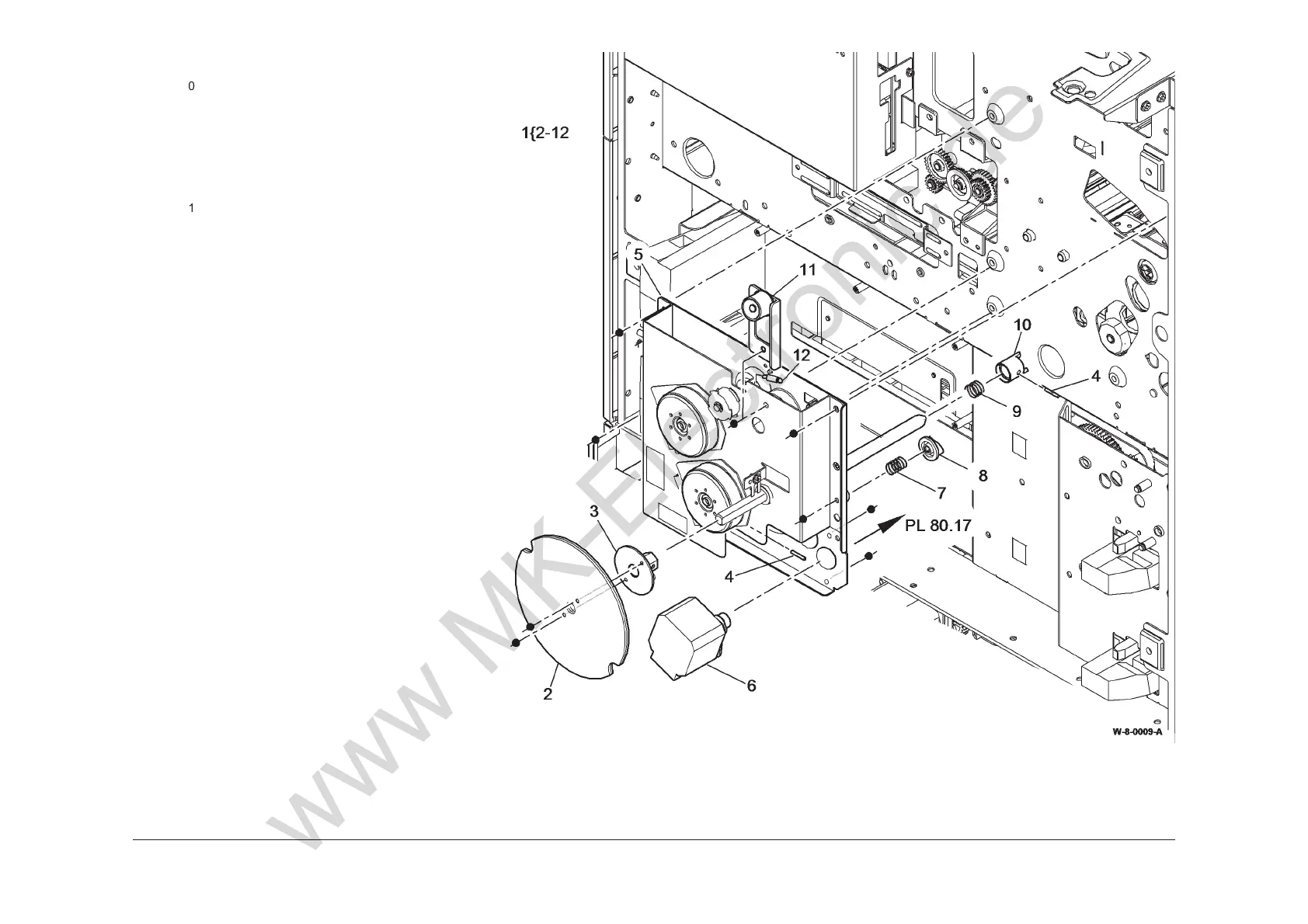

PL 40.15 Main Drive Module
Item Part Description
1
007K20788 Main drive module (REP 40.1, ADJ
40.1)
2 – Flywheel (P/O PL 40.15 Item 1)
3 – Flywheel clamp (P/O PL 40.15 Item
1)
4 – Dowel pin (P/O PL 40.15 Item 1)
5 – Main drive unit (P/O PL 40.15 Item
1)
6 127E17792 Registration motor (REP 40.2)
7 – Spring (P/O PL 40.15 Item 1)
8 – Developer dog gear (P/O PL 40.15
Item 1)
9 – Spring (P/O PL 40.15 Item 1)
10 – Photoreceptor dog gear (P/O PL
40.15 Item 1)
11 – Tensioner (P/O PL 40.15 Item 1)
12 – Tension spring (P/O PL 40.15 Item
1)
