Xerox WorkCentre 5945

February 2016
5-34
Xerox® WorkCentre® 5945 Family
PL 12.65
Parts Lists

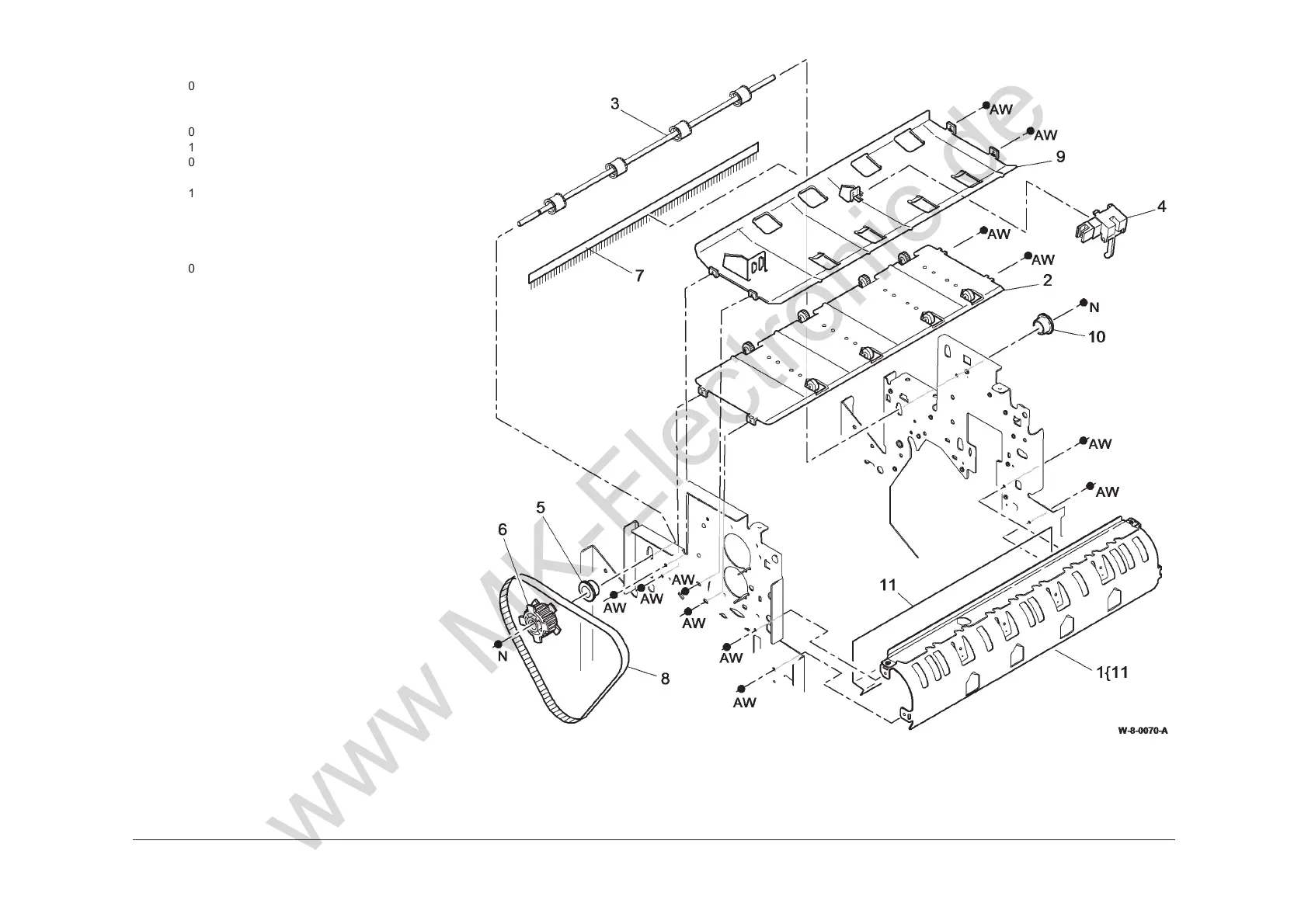

PL 12.65 2K LCSS Bin 1 Entry
Item Part Description
1
032K04610 Left paper guide
2 – Lower right paper guide (Not
Spared) (REP 12.19-110)
3 006K32790 Ejector drive shaft (REP 12.19-110)
4 130E11440 Compiler exit sensor (Q12-106)
5 013E25790 Nylon bearing
6 – Pulley (Not Spared)
7 115E11810 Static eliminator (stacker)
8 – Paper output drive belt (REF: PL
12.60 Item 14)
9 – Upper right paper guide (Not
Spared) (REP 12.19-110)
10 013E37460 Bearing
11 – Mylar safety cover (P/O PL 12.65
Item 1)
