Xerox WorkCentre 5945

February 2016
5-32
Xerox® WorkCentre® 5945 Family
PL 12.55
Parts Lists

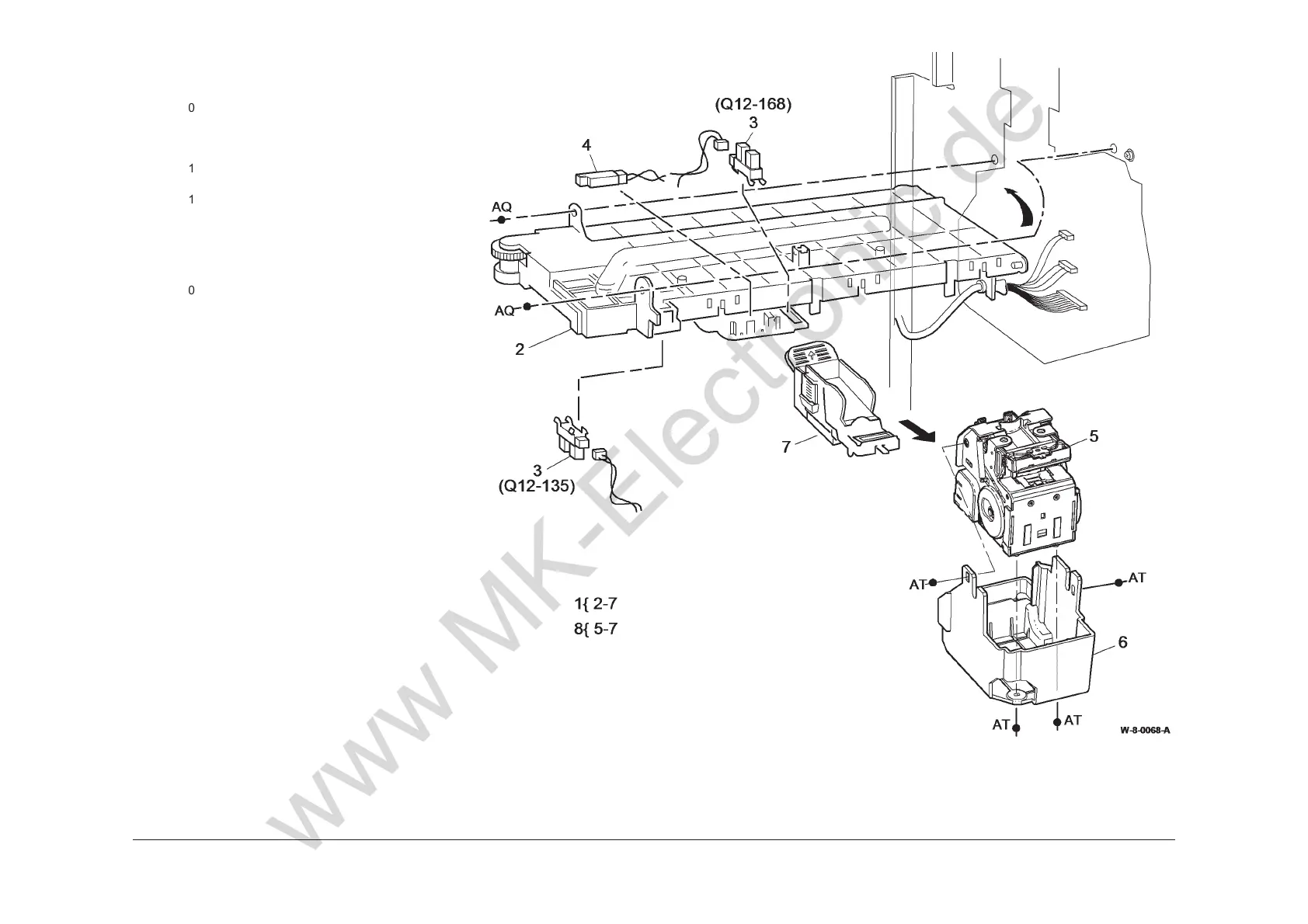

PL 12.55 2K LCSS Staple Head Unit/
T
raverse Assembly
Item Part Description
1
014K11543 Stapler traverse assembly (REP
12.8-110)
2 – Head traverse unit (P/O PL 12.55
Item 1)
3 130E10360 Staple home sensor (Q12-135),
Stapler index sensor (Q12-168)
4 130E10380 SH1 Paper sensor (Q12-196)
5 – Staple head unit (P/O PL 12.55
Item 8) (REP 12.9-110)
6 – Stapler cover (P/O PL 12.55 Item 1)
7 – Staple cartridge (REF: PL 26.10
Item 11) (See NOTE)
8 029K04691 Staple head assembly
NOTE: To replace staples only, order PL 26.11 Item 4.
