Xerox® WorkCentre® 5945 Family
PL 12.360
Parts Lists

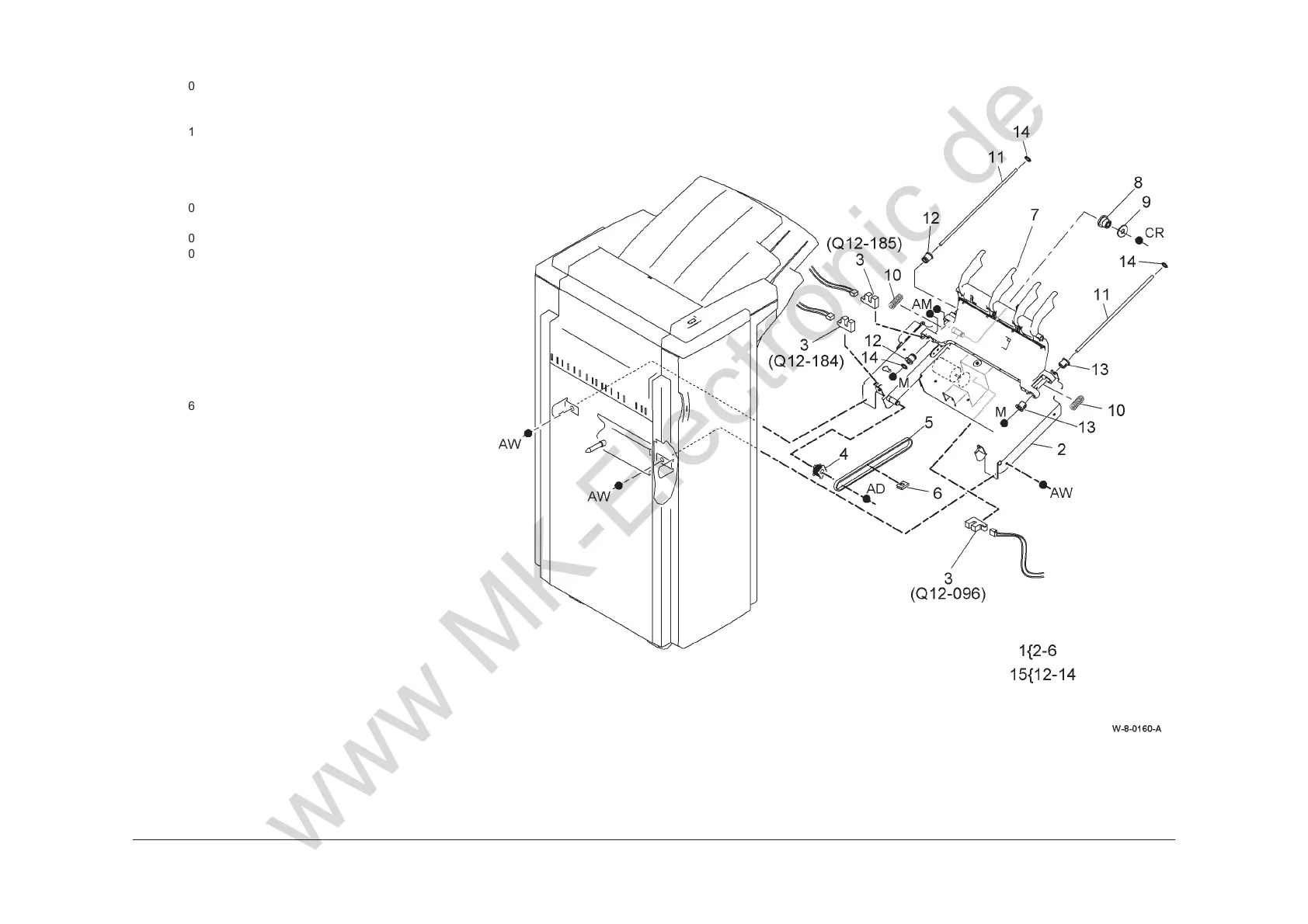

PL 12.360 LVF BM Ejector Assembly
Item Part Description
1
054K54273 Ejector assembly (REP 12.10-150)
2 – Ejector base (P/O PL 12.360 Item
1)
3 130E10360 Ejector home sensor (Q12-184),
Ejector out sensor (Q12-185),
Ejector motor encoder sensor
(Q12-096) (REP 12.10-150)
4 – Pulley (P/O PL 12.360 Item 1)
5 023E24330 Ejector belt (REP 12.17-150)
6 – Clip (P/O PL 12.360 Item 1)
7 019K13390 Support finger (REP 12.10-150)
8 020K21490 Pulley drive gear
9 – Washer (Not Spared)
10 – Spring (P/O PL 12.360 Item 1)
11 – Shaft (P/O PL 12.360 Item 1)
12 – Slide ejector bearing (P/O PL
12.360 Item 15)
13 – Wide slide ejector bearing (P/O PL
12.360 Item 15)
14 – Cushion washer (P/O PL 12.360
Item 15)
15 604K67690 Bearing assembly kit
