Xerox® WorkCentre® 5945 Family
PL 12.340
Parts Lists

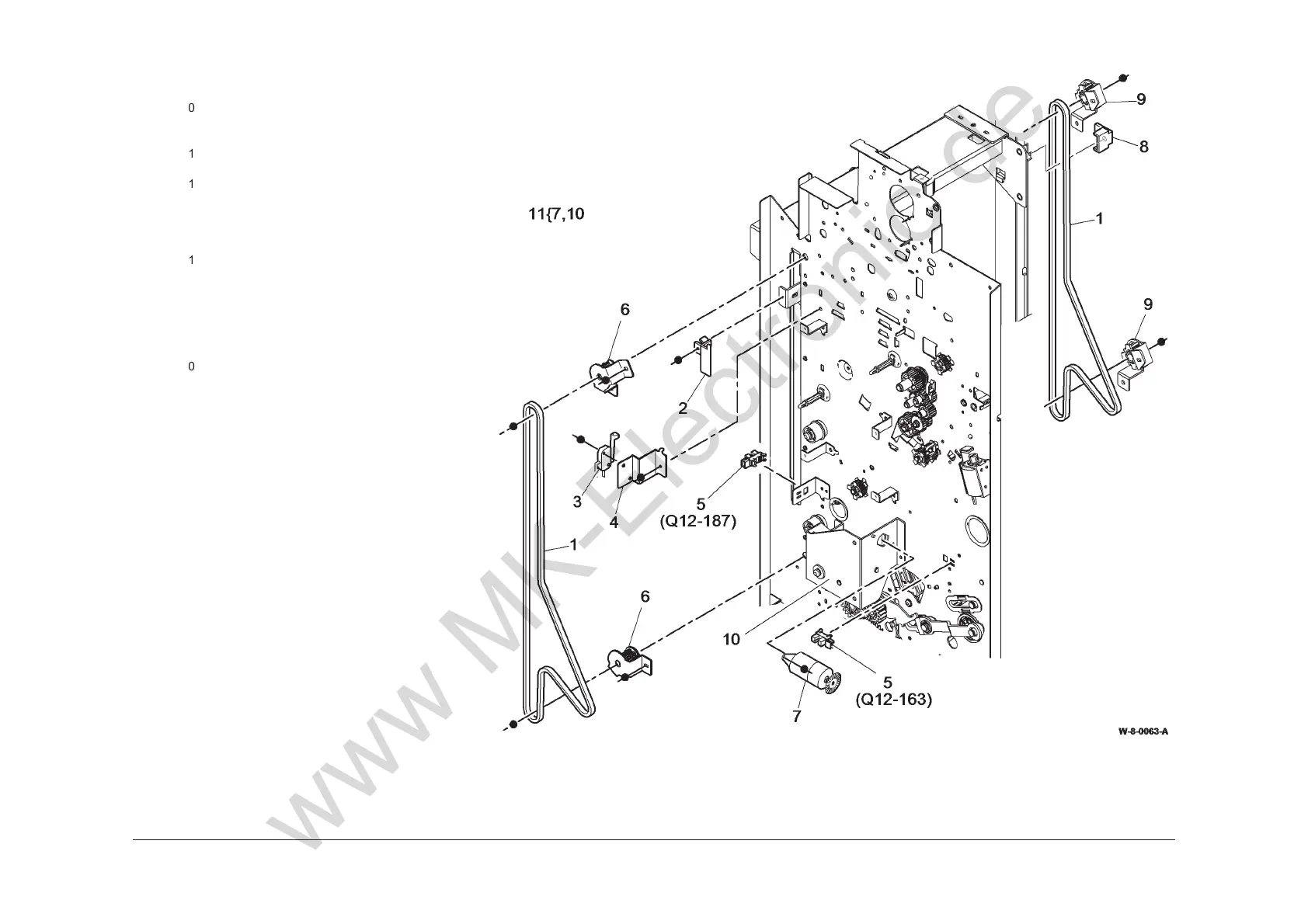

PL 12.340 LVF BM Bin 1 Control
C
omponents (1 of 2)
Item Part Description
1
023E24320 Bin 1 drive belt (REP 12.5-150)
2 – Rear belt clamp (Not Spared) (ADJ
12.1-150)
3 110E20180 Bin 1 upper limit switch (S12-190)
4 – Sensor bracket (Not Spared)
5 130E10360 Bin 1 90% full sensor (Q12-187)/
Bin 1 motor encoder sensor (Q12-
163)
6 – Rear pulley (Not Spared) (ADJ
40.1)
7 127K55891 Bin 1 elevator motor (MOT12-241)
8 – Front belt clamp (Not Spared) (ADJ
12.1-150)
9 – Front pulley (Not Spared) (ADJ
40.1)
10 – Stacker tray drive assembly (P/O
PL 12.340 Item 11)
11 007K20531 Stacker tray drive and motor
assembly (REP 12.5-150)
