Xerox WorkCentre 5945

February 2016
5-21
Xerox® WorkCentre® 5945 Family
PL 10.15
Parts Lists

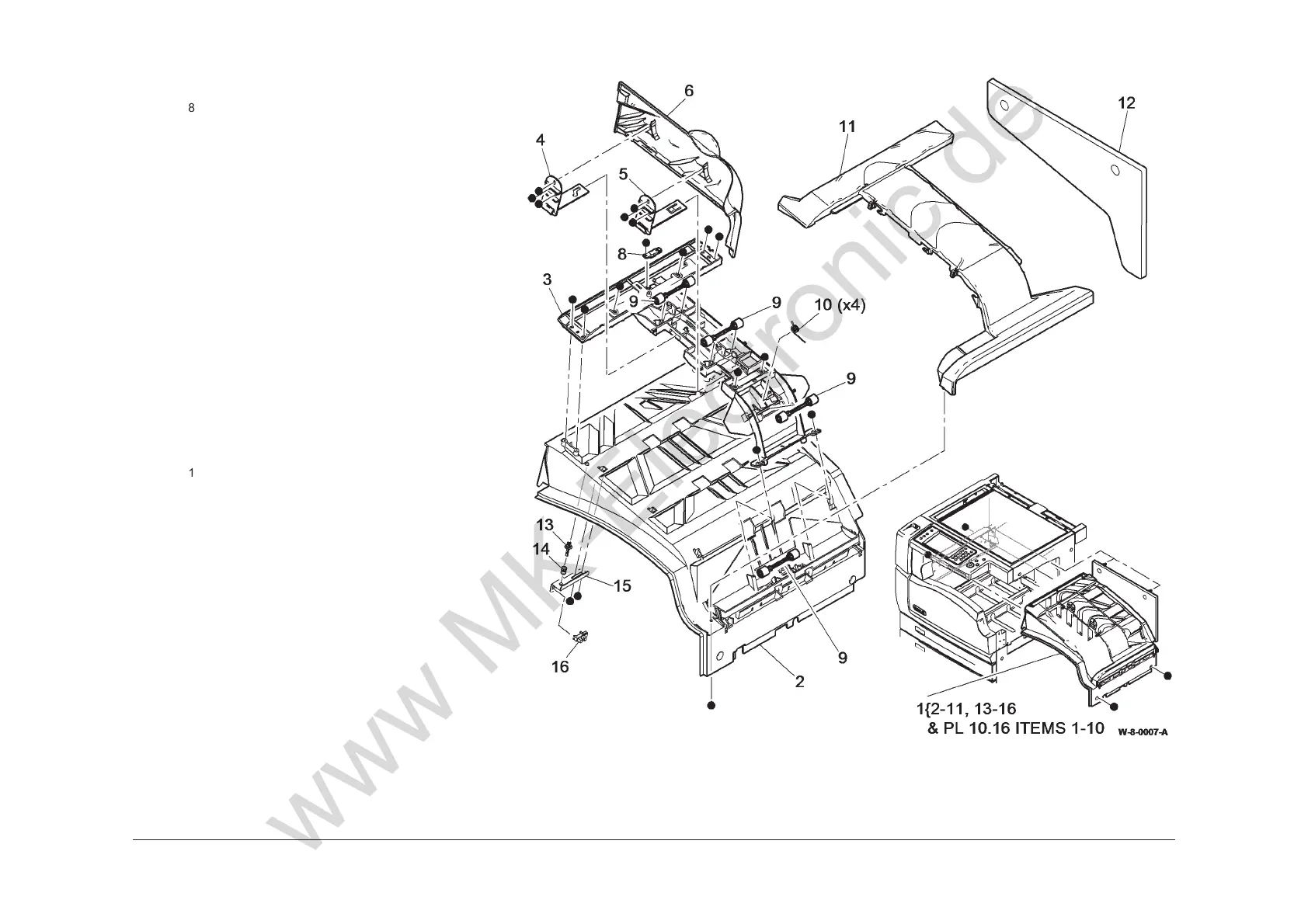

PL 10.15 Horizontal Transport
A
ssembly (1 of 2)
Item Part Description
1
859K03118 Horizontal transport assembly (See
NOTE) (REP 10.6)
2 – Lower transport assembly (P/O PL
10.15 Item 1)
3 – Baffle assembly (P/O PL 10.15 Item
1)
4 – Left hinge (P/O PL 10.15 Item 1)
5 – Right hinge (P/O PL 10.15 Item 1)
6 – Jam clearance cover (P/O PL 10.15
Item 1)
7 – Not used
8 – Horizontal transport entry sensor
(Q10-041) (P/O PL 10.15 Item 1)
9 – Idler roll (P/O PL 10.15 Item 1)
10 – Spring (P/O PL 10.15 Item 1)
11 – Top cover (P/O PL 10.15 Item 1)
12 – Backplate (P/O PL 31.14 Item 5)
(REP 28.1)
13 – Interlock actuator (P/O PL 10.15
Item 1)
14 – Actuator spring (P/O PL 10.15 Item
1)
15 – Sensor bracket (P/O PL 10.15 Item
1)
16 130E18220 Horizontal transport interlock
sensor (Q10-042)
NOTE: Also supplied as part of PL 31.14 Item 5.
